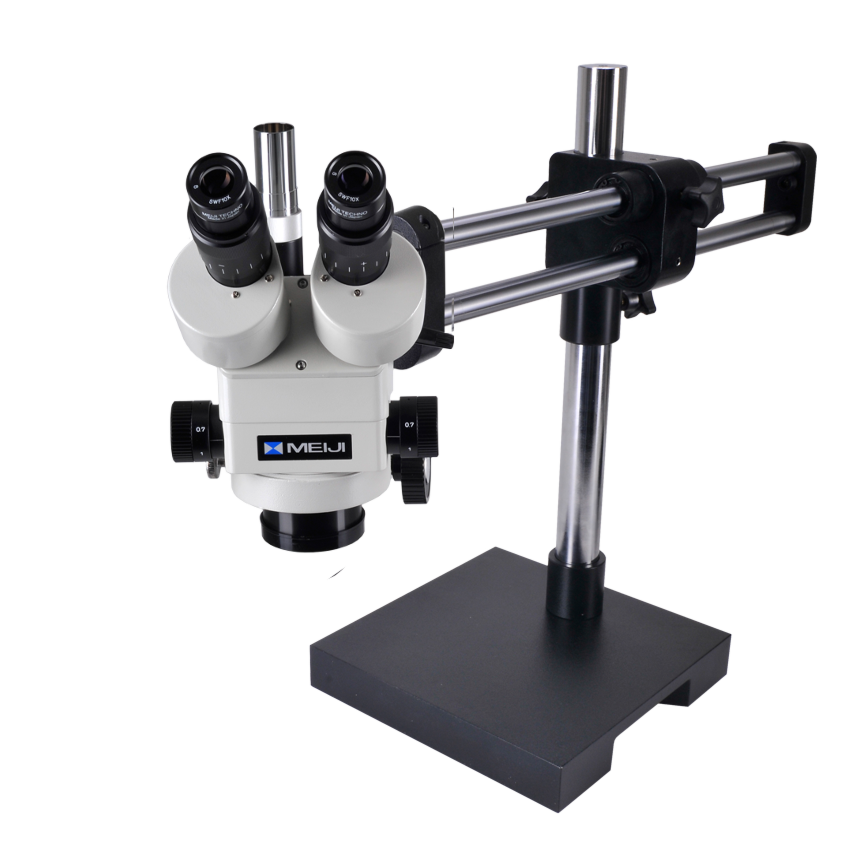

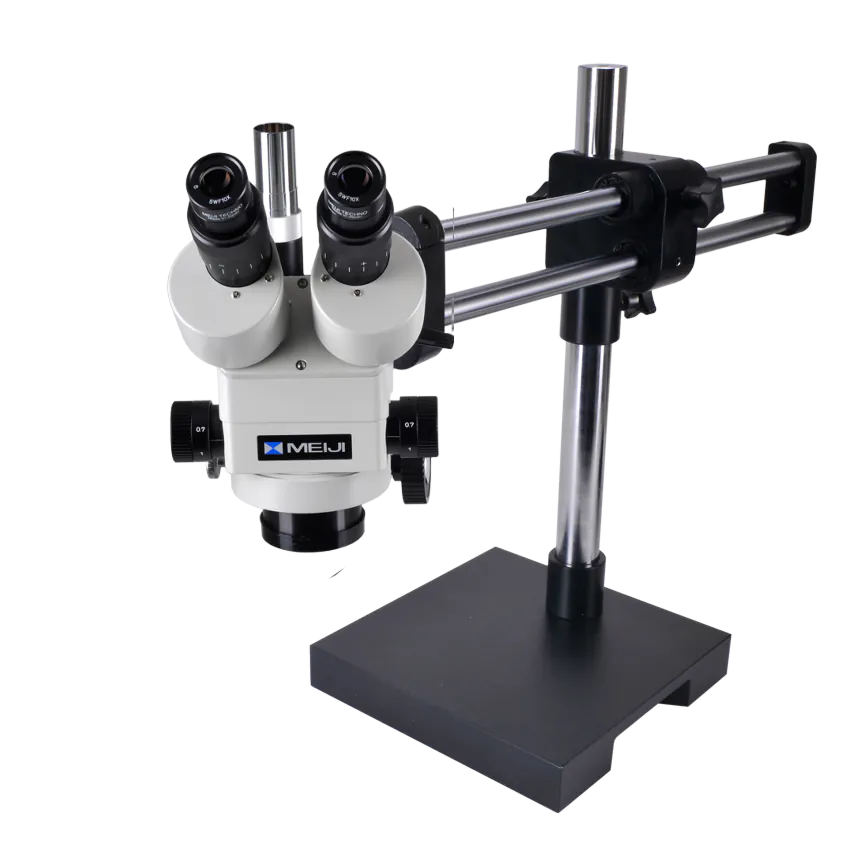

Meiji Techno EMZ5-V15 7x-45x Boom Stereo Microscope

List Price: $2,255.00

Starting at: $1,753.00

SKU: EMZ5-V15

Availability: In stock

  • 0.7x-4.5x zoom magnification
  • Choice of eyepieces
  • V15 premium dual-arm boom stand
  • Included ring light illuminators
  • Binocular or trinocular formats
  • Optional Barlow lenses
  • Limited Lifetime Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OMFB23 Focus Block, 84mm Ring   $60.00
OMHB25 Hanging Bar   $25.00
  • $10.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $249.00
  • $88.00
  • $25.00
  • $209.00
  • $239.00
  • $499.00
  • $499.00

Included in Bundle

Focus Block: OMFB23 Focus Block, 84mm Ring

Hanging Bar: OMHB25 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ5-V15 Zoom Stereo Boomo Microscope
  • Meiji EMZ5 Stereo Microscope Head
  • Meiji EMZ5 Stereo Trinocular Microscope Head
  • Omano V15 Boom Stand
  • Omano V15 Boom Stand U-Clamp
  • Omano V15 Boom Stand Bearings
Description

Summary

The Meiji EMZ5-V15 is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the premium Omano V15 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click-stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

Solid steel, 21.5" tall, a horizontal span of 28" and 48 lbs - yet surprisingly graceful in its movements, the V15 is our premium Omano dual-arm boom stand. Customers love it! A ball-bearing slide enables fingertip positioning control while a raft of thoughtful features help earn its well-deserved reputation. A hanging bar offers versatile viewing positions, a safety collar locks the boom in place on the pole, and a rubber backstop protects the cross bar.

In addition, a neat spring-loaded hanging bar bracket lever can be re-positioned without losing tension on the microscope head. They all add up to a product that feels right and works very well.

Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.



Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-5 Binocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ-5D Binocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5TR Trinocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5H Binocular 7.5X-45X Zoom Stereo Microscope with Extended FOV (Req. MA522)
    SKU EMZ5EMZ5DEMZ5TREMZ5TRDEMZ5H
    Magnification Chart Meiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification Chart
    Head
    Head Type BinocularBinocularTrinocularBinocularBinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm50 mm50 mm
    Diopter Adjustment DualDualDualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm
    Trinocular Type  Prism Switching
    Trinocular Standard  23mm DIN
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.70.70.7
    Maximum Objective (X) 4.54.54.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsSmooth ContinuousDetent Click-StopsSmooth Continuous
    Zoom Indicator Graduations YesYesYesYesYes
    Parfocal YesYesYesYesYes
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters)  23mm , C-Mount
    Available Imaging Mounts  0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm84 mm84 mm84 mm
    Max Working Distance (standard) 93mm93mm93mm93mm93mm

  • V15 Boom Stand

    V15U U-Clamp Boom Stand
    SKU V15V15U
    Stand
    Stand Class BoomBoom
    Stand Type Dual Arm BoomDual Arm Boom
    Stand Features Ball-Bearing Glide, Counter-weighted, Heavy Duty, Large Base PlateBall-Bearing Glide, Counter-weighted, Tabletop U-Clamp
    Base Width 254 mm254 mm
    Base Depth 254 mm254 mm
    Post Height 464 mm464 mm
    Post Diameter 38 mm38 mm
    View Center to Post Distance 514 mm514 mm
    Physical Construction Solid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? YesYes
    Hanging Bar Style ArticulableArticulable

  • OMFB23 Focus Block, 84mm Ring
    SKU OMFB23
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm
    Compatibility
    Head Ring Mount Diameter 84 mm

  • OMHB25 Hanging Bar
    SKU OMHB25
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Illumination Type LEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • MA530 Barlow Lens 0.3X WD 252mm

    MA525 Barlow Lens 0.44X WD 181mm

    MA517 Barlow Lens 0.5X WD 150mm

    MA526 Barlow Lens 0.75X WD 97mm

    MA507 Barlow Lens 1.5X WD 49mm

    MA511 Barlow Lens 2X WD 34mm
    SKU MA530MA525MA517MA526MA507MA511
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*
    Optical Accessory
    Barlow Lens Power 0.3X0.5X0.5X0.75X1.5X2.0X

  • MA151/35/03 C-Mount Adapter 0.3X for Meiji with 21mm reticle mount
    SKU MA151/35/03

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    SK2 Calibration Slide Micrometer, 5-Target

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-CSM2OCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14X
    Warranty 1 Year 1 Year1 Year1 Year
    Product Weight 2.0000 2.00002.00002.0000
    Sensor
    Sensor Type CMOS CMOSCMOSCMOS
    Sensor Size 1/3 Inch 1/3 Inch1/3 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOS Aptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOS
    Color/Monochrome Color ColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm 2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm
    Sensor Color Depth 8bpp / 24bit RGB 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode Progressive ProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db 40.5 db34 db35.5 db
    Sensitivity 1.0V/Lux-sec (550nm) 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range 71 db 66.5db65.2db63.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC 12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels 5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 256 2592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822
    FPS @ Max Res [email protected]; [email protected]; [email protected] 5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 3288
    FPS @ Min Res 50fps @ 320 x 256 60fps @ 640 X 48027fps @896 x 68427fps @1024 x 822
    Camera Interface USB 2.0 USB 2.0USB 2.0USB 2.0
    White Balance Automatic, Manual Automatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2View OptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAIN DirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB Powered USB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFF BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, Manual Automatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms 2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual
    Operating Temperatures 10°C ~ 50°C 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+ Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, UL CE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft) 1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year 1 Year1 Year1 Year
    Software Support 6 Months 6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount 23mm , C-Mount23mm , C-Mount23mm , C-Mount

  • 1690 Pelican Composite Microscope Case - Transport
    SKU PC1690
    Compatibility
    Compatible With OM88, OM88T
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
