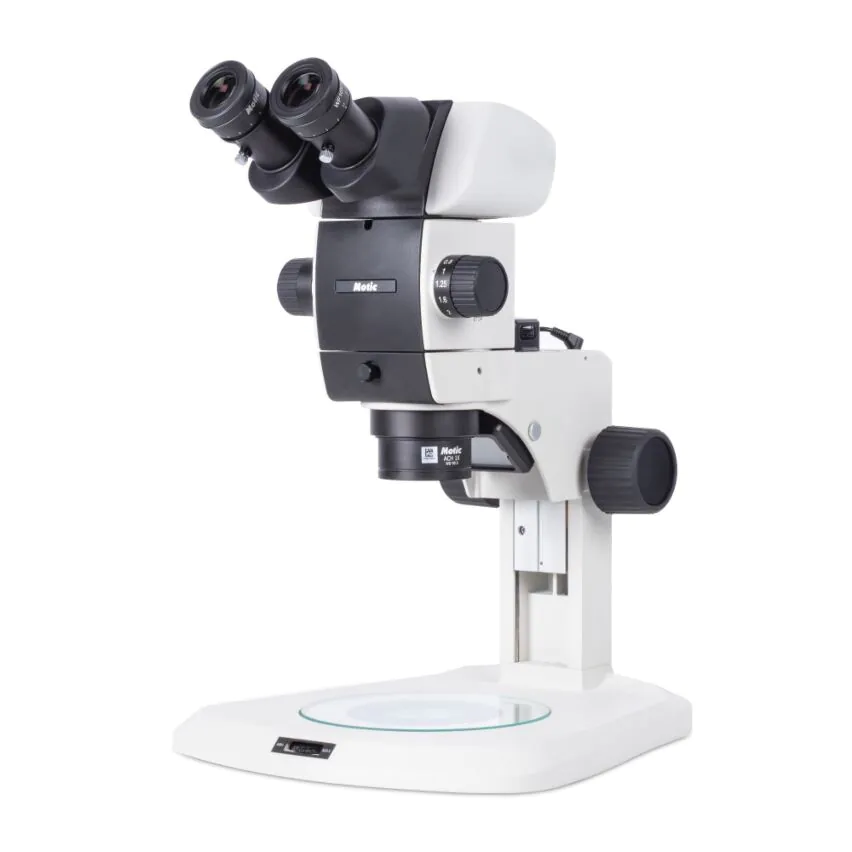

Motic SM7-TLED A1X Binocular Microscope with Incident and Transmitted Illumination
- Advanced Optical Performance: Features a Plan Achromat 1X objective that delivers high-resolution images with true color reproduction and minimal distortion.
- Versatile Dual Illumination: Equipped with 3W incident and transmitted LED lighting, allowing for the precise examination of both transparent and opaque specimens.
- Independent Lighting Controls: Includes separate intensity controls for mixed samples, providing the flexibility to balance illumination based on the specimen's needs.
- Galilean Optical System: Built with Motic’s renowned Galilean stereomicroscope technology to provide superior spatial information for biological, medical, and industrial applications.
- Professional Working Distance: Offers a 90mm working distance, providing ample space for manipulation and high-quality observation.
Motic SM7-TLED A1X Galilean Stereo Microscope
Advanced Common Main Objective (CMO) System for Research & Industrial Quality Control
Superior Optical Performance & True Color Reproduction
The Motic SM7-TLED A1X is a professional-grade binocular stereomicroscope designed for users in biology, medicine, and industrial quality control. Utilizing a Galilean Infinity Optical Design, the SM7 series delivers high-resolution images with low distortion and exceptional spatial information.
Equipped with a Plan Achromat 1X objective and a versatile 7:1 zoom ratio, this system provides the clarity and depth of field required for complex specimen analysis, whether transparent or opaque.
Key Features of the SM7 Series
- Common Main Objective (CMO): Modular infinity optical design allows for easy expansion and superior edge-to-edge flatness.
- 7:1 Zoom Ratio: 10-step discrete zoom from 0.8X to 5.6X for precise magnification recall.
- Dual 3W LED Illumination: Independent controls for incident (top) and transmitted (bottom) lighting, perfect for mixed samples.
- Ergonomic Viewing: 30º inclined binocular head with dual diopter adjustment (+5/-8) to reduce eye strain during long hours of use.
- Large Working Distance: 90mm of clearance allows for easy sample manipulation and tool integration.
Technical Specifications
| Feature | Specification |
|---|---|
| Optical System | Galilean Infinity Optical Design (CMO) |
| Objective | Plan Achromat 1X (WD: 90mm) |
| Zoom Range | 0.8X ~ 5.6X (7:1 Ratio, 10-step) |
| Eyepieces | Widefield WF10X / 22mm |
| Head Type | Binocular, 30º inclined, 55-75mm Interpupillary distance |
| Focusing | Coarse system with tension adjustment (120mm stroke) |
| Illumination | Dual 3W LED with intensity control (Incident & Transmitted) |
| Stand | Fixed-arm stand with Ø160mm Glass plate |
Applications & Versatility
The SM7-TLED A1X is engineered for precision across multiple disciplines:
- Life Sciences: Detailed dissection and observation of biological tissues.
- Industrial QC: Inspection of PCBs, semiconductors, and precision mechanical parts.
- Medicine: High-resolution spatial information for pathological review.
- Education: Advanced laboratory settings requiring true color reproduction.
What's in the Box?
- Motic SM7-TLED A1X Binocular Head
- Fixed-arm LED Stand with Integrated Controls
- Widefield WF10X/22mm Eyepieces (Pair)
- Plan Achromat 1X Objective
- Ø160mm Glass Stage Plate
- Dust Cover
- External Power Supply (110-240V CE)
Upgrade Your Lab Precision Today
Experience the Motic difference with the SM7 Series high-resolution Galilean optics.
Net Weight: 7.3kg | Warranty: Comprehensive Manufacturer Support
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
