Acrobat Heavy Duty Articulating Boom Stand with 84mm Ring

List Price: $795.00

Our Price: $650.00

SKU: GRS-ACRO

Availability: In stock

  • Dual spring-powered articulating arms
  • Ergonomic tension controls for easy repositioning
  • Hinge points tighten for added rigidity
  • Machined bearings offer smooth movement
  • Horizontal reach of 31 inches
  • 84mm ring size will fit most stereo microscopes
  • Included pivot ball for angled observations
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

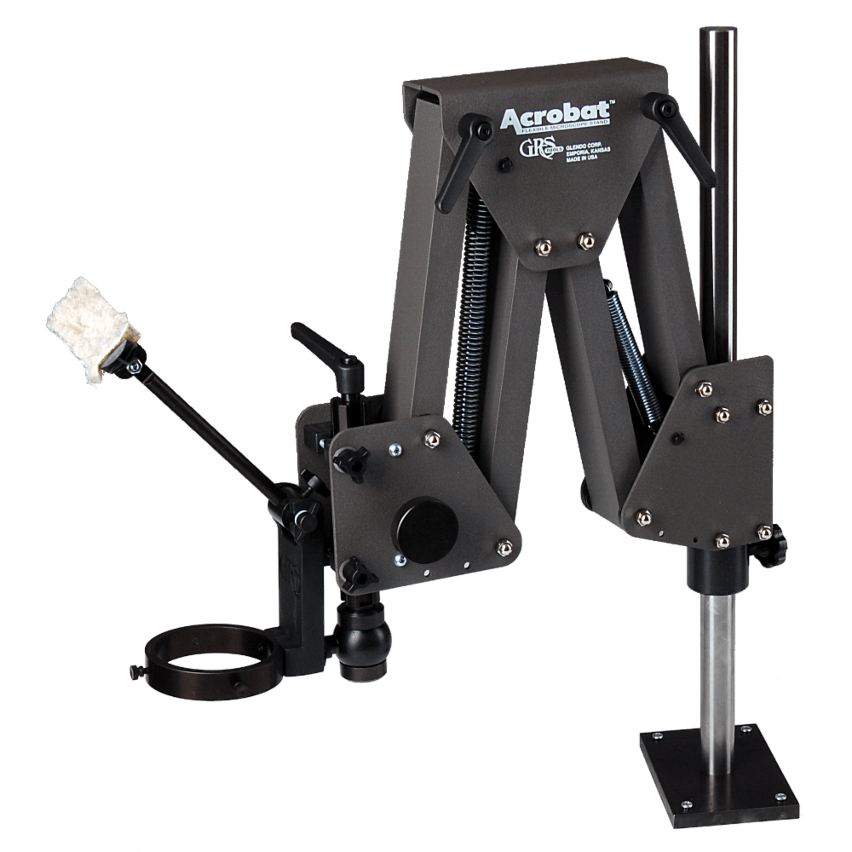

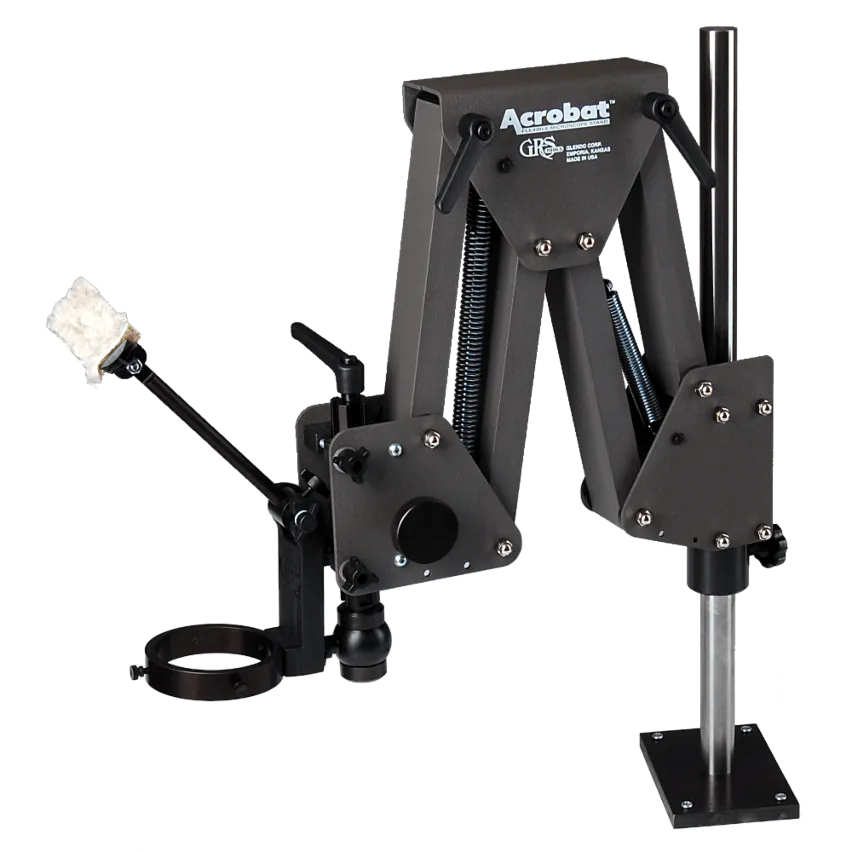

  • GRS Acrobat Articulating Stand Main
  • GRS Acrobat Articulating Stand Sample
Description

The GRS Acrobat is a heavy-duty articulating arm stand built for demanding scientific and industrial applications. The arms extend outward 30 inches horizontally and 34 inches vertically, yet they fold into a compact space when not in use. Well-balanced and stable with smooth, controlled movement, it has an 84mm ring size and dual articulating arms with individual position locks and friction adjustment. Spring power and machined bearings allow for easy repositioning and each arm can be independently locked in place for added rigidity.

A hanging bar and pivot joint allows for angled viewing from the microscope, and an included headrest helps minimize neck pain and fatigue during extended observation periods. The hanging bar lever is also spring-loaded and can move out of the way without having to release the pre-set tension of the coarse adjustment focus block. NOTE: If using a Meiji EMZ8TR microscope, a spacer (ACRO-SK) will be required.

The arm assembly mounts to a vertical post and can be raised or lowered as needed, then secured in place with a safety collar. The 8" x 5.5" base plate mounts to a wood top bench with included 1 1/2" wood screws or it can be bolted to a metal top bench with optional 10-32 flat head bolts (not included).

Shipping Wt. 24.8 lb.
Specifications

Acrobat Heavy Duty Articulating Boom Stand with 84mm Ring
General
SKU GRS-ACRO
Short Description
  • Dual spring-powered articulating arms
  • Ergonomic tension controls for easy repositioning
  • Hinge points tighten for added rigidity
  • Machined bearings offer smooth movement
  • Horizontal reach of 31 inches
  • 84mm ring size will fit most stereo microscopes
  • Included pivot ball for angled observations
  • Lifetime Limited Warranty
Warranty Lifetime Limited Warranty
Stand
Stand Class Boom
Stand Type Articulated Boom
Stand Features Articulated, Heavy Duty
Base Width 140 mm
Base Depth 200 mm
Post Diameter 38 mm
Physical Construction Solid Metal
Coating Type (Stand) Durable Powdercoat
If HB Required
Requires Separate Hanging Bar? Yes
Hanging Bar Style Articulable
If FB Mounts Direct
Focus Block Mount Diameter 5/8in Pin
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
