Meiji Techno EMZ5-ACRO 7x-45x Boom Stereo Microscope with Acrobat Stand

List Price: $2,402.00

Starting at: $2,039.00

SKU: EMZ5-ACRO

Availability: In stock

  • Most popular Meiji stereo zoom microscope head
  • 0.7x-4.5x zoom magnification
  • Choice of eyepieces
  • Heavy-duty Acrobat articulating stand
  • Included ring light illuminator
  • Binocular or trinocular formats
  • Optional Barlow lenses
  • Limited Lifetime Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Acrobat Heavy Duty Articulating Boom Stand with 84mm Ring   $650.00
  • $10.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00

Included in Bundle

Articulating Stand: Acrobat Heavy Duty Articulating Boom Stand with 84mm Ring

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ5-Acrobat Articulating Boom Stand
  • GRS Acrobat Articulating Stand
  • Meiji EMZ5 Stereo Microscope Head
Description

Summary

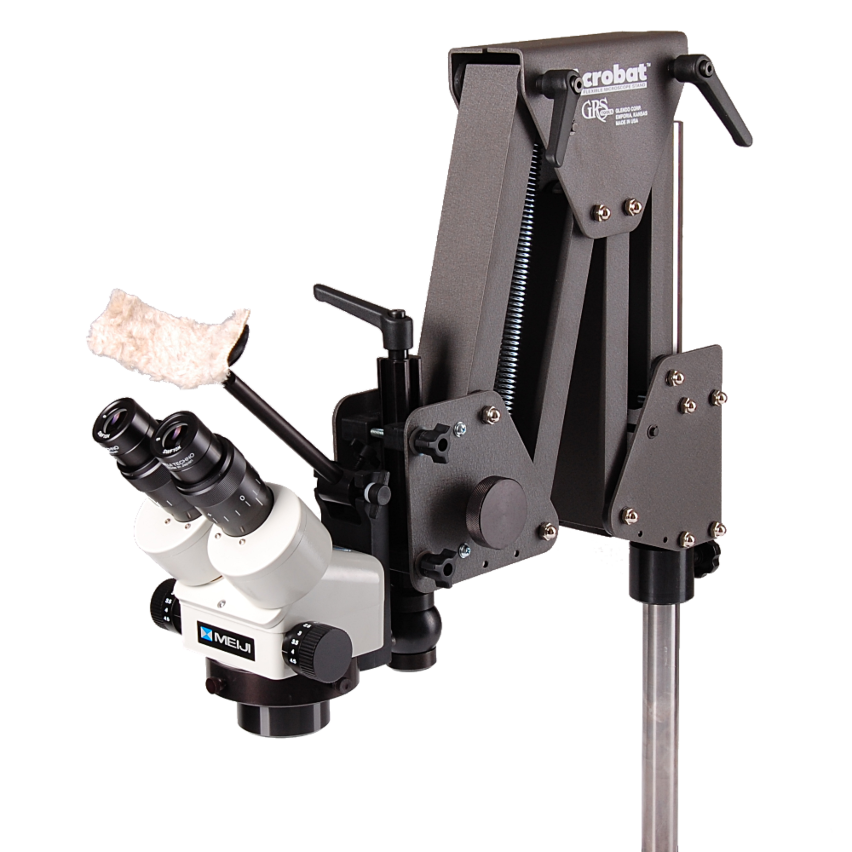

The Meiji EMZ5-ACRO combines Meiji's best-selling EMZ-5 0.75-4.5x stereo zoom microscope body with the flexibility of the Acrobat articulating arm boom stand for an affordable and high quality inspection microscope. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

NOTE: The GRS stand is not compatible with the trinocular version. This configuration is available in binocular version only.

Stand

The GRS Acrobat is a heavy-duty articulating arm stand built for demanding scientific and industrial applications. The arms extend outward 30 inches horizontally and 34 inches vertically, yet they fold into a compact space when not in use. Well-balanced and stable with smooth, controlled movement, it has dual articulating arms with individual position locks and friction adjustment. Spring power and machined bearings allow for easy repositioning and each arm can be independently locked in place for added rigidity. The stand is intended to bolt to a suitable wood top or metal top workbench and includes a headrest and an 84mm focus ring to fit any EMZ stereo head. NOTE: The GRS stand will not work with the trinocular version of the EMZ5 head.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-5 Binocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ-5D Binocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5TR Trinocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5H Binocular 7.5X-45X Zoom Stereo Microscope with Extended FOV (Req. MA522)
    SKU EMZ5EMZ5DEMZ5TREMZ5TRDEMZ5H
    Magnification Chart Meiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification Chart
    Head
    Head Type BinocularBinocularTrinocularBinocularBinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm50 mm50 mm
    Diopter Adjustment DualDualDualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm
    Trinocular Type  Prism Switching
    Trinocular Standard  23mm DIN
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.70.70.7
    Maximum Objective (X) 4.54.54.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsSmooth ContinuousDetent Click-StopsSmooth Continuous
    Zoom Indicator Graduations YesYesYesYesYes
    Parfocal YesYesYesYesYes
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters)  23mm , C-Mount
    Available Imaging Mounts  0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm84 mm84 mm84 mm
    Max Working Distance (standard) 93mm93mm93mm93mm93mm

  • Acrobat Heavy Duty Articulating Boom Stand with 84mm Ring
    SKU GRS-ACRO
    Warranty Lifetime Limited Warranty
    Stand
    Stand Class Boom
    Stand Type Articulated Boom
    Stand Features Articulated, Heavy Duty
    Base Width 140 mm
    Base Depth 200 mm
    Post Diameter 38 mm
    Physical Construction Solid Metal
    Coating Type (Stand) Durable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? Yes
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 5/8in Pin
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Illumination Type LEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • MA530 Barlow Lens 0.3X WD 252mm

    MA525 Barlow Lens 0.44X WD 181mm

    MA517 Barlow Lens 0.5X WD 150mm

    MA526 Barlow Lens 0.75X WD 97mm

    MA507 Barlow Lens 1.5X WD 49mm

    MA511 Barlow Lens 2X WD 34mm
    SKU MA530MA525MA517MA526MA507MA511
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*
    Optical Accessory
    Barlow Lens Power 0.3X0.5X0.5X0.75X1.5X2.0X
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
