Motic BA410E Elite Research Compound Microscope

List Price: $3,650.00

Starting at: $3,350.00

SKU: BA410E

Availability: In stock

  • Top of the range Motic biological Lab microscope
  • Highly flexible modular design
  • Multiple configurations: phase, fluorescence, polarizing, digital
  • CCIS infinity corrected Plan optics
  • 12V 50W Halogen with external lamp house
  • Lifetime Limited Warranty
  • Recommended for Teaching Laboratories & Clinics
Select package options

Click on to learn more about the option * signifies required items

  • $4,785.00
  • $930.00
  • $930.00
  • $1,108.00
  • $930.00
  • $930.00
  • $930.00
  • $930.00
  • $55.00
  • $122.36
  • $180.00
  • $218.00
  • $274.00
  • $629.00
  • $809.00
  • $995.00
  • $139.00
  • $195.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

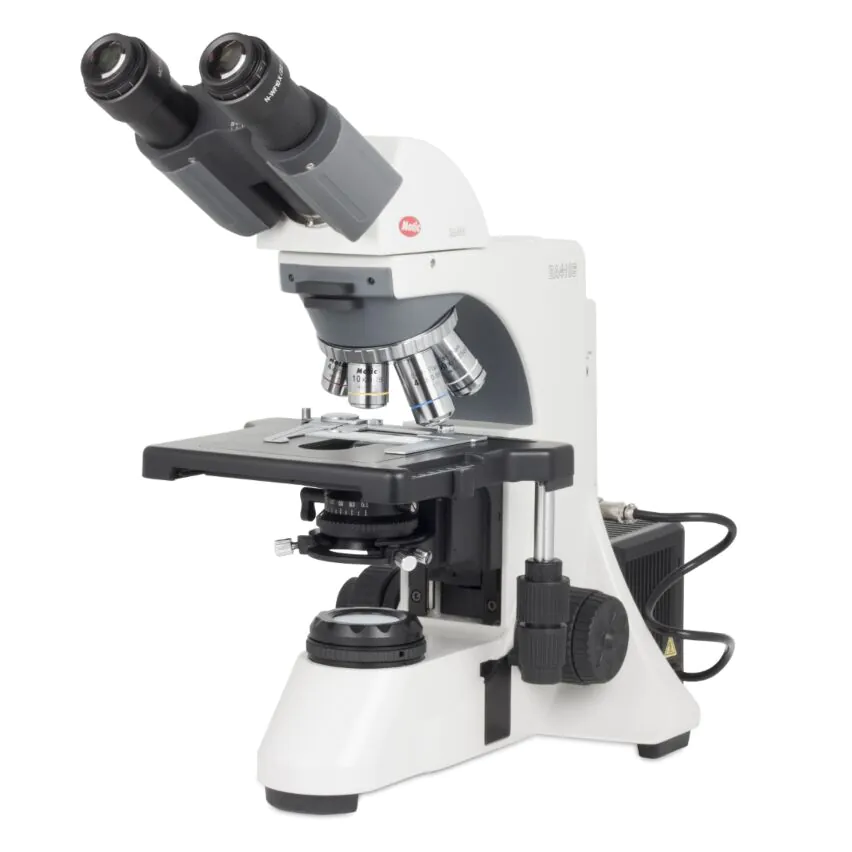

  • BA410E Elite Compound Microscope
  • BA410E Elite Compound Microscope trinocular
  • BA410E Elite Compound Microscope stage
  • BA410E Elite Compound Microscope objective
  • BA410E Elite Compound Microscope front
  • BA410E Elite Compound Microscope condenser
Description

Summary

Designed for laboratory and research applications, the new BA410 Elite is the flagship of Motic's biological microscope series. Modular by design, it is available in multiple configurations from standard achromatic through phase contrast, polarizing, epi-fluorescence and, with the clever addition of the new MC580INT camera/monitor attachment, it can also be transformed into a digital microscope.

Microscope Optics

The BA410 Elite includes a Seidentopf binocular microscope head with a comfortable 30° viewing angle and two high eyepoint Widefield WF PL10x FN 22mm eyepieces. Both eyepieces include diopters for easy individual eye focusing and the interpupillary adjustment range is 48mm-75mm. 12.5x and 15x eyepieces are also available. The head rotates through 360° and is available in three optional trinocular formats – choose the standard 20:80 beam splitter (80% to the camera), the 0:100 beam splitter (100% to camera, ideal for fluorescence imaging), or a combination design which you can select 80% or 100% to the camera.

For prolonged viewing demands, the BA410 offers a complement of two different ergonomic viewing head options, each offering a FOV 22 and an interpupillary distance of 55-75mm. Special order the Binocular Ergo tube with a variable viewing angle of 4°-30°, or choose the Binocular Ergo-Plus tube which also offers telescoping extension of 35mm.

The standard configuration includes a reversed sextuplet nosepiece with four of Motic’s newly designed Enhanced Contrast (EC-H), Color Corrected Infinity System Plan objectives: EC-H Plan 4X, 10X, 40X and 100XS-Oil. 2x, 20x and 60x power objectives are also available. These new lenses are multilayer-coated for improved contrast and image enhancement, highlighting even the weakest stained specimens for superior color fidelity and digital results.

Stage & Focus

A large double-layered, anodized rackless mechanical stage measures 174mm x 145mm and features smooth, ball-bearing drive motion through 80mm x 53mm of XY movement. An upgraded spring-loaded double slide clamp offers improved stability for multiple-sample viewing while the 1mm graduated scale allows for precise, repeatable positioning of specimen slides.

The coaxial right-handed mechanical stage controls (left-hand available as well) offer finger-touch X-Y adjustment and ergonomic placement for 'eyes down' operation. Dual sided, rackless-movement focus controls include coaxial coarse/fine controls with mechanical-stop and slip clutch along with a newly-developed stage lock mechanism designed to minimize the risk of damage from over-extension.

Condenser & illumination

The condenser is a professional focusing swing-out Abbe 0.90 NA with rack and pinion height adjustment and centering screws. It offers focused, consistent lighting across the entire magnification range and is equally good in photomicrography applications. Optional phase contrast sliders are available.

High quality Koehler illumination is powered by an externally mounted 12V 50W Koehler Halogen lamp house with variable intensity and a new collector lens assembly. Universal Power Supply 100-240V UL.

The BA410 Elite is modular and offers kits for configurations in phase contrast, polarizing, epi-fluorescence and digital applications. Please call us for details at 877-409-3556.

Accessories

Owners Manual, 5ml Immersion Oil, Allen Hex Key, 45mm Blue Filter, Dust Cover.

BA410E - Binocular: 1100100402971

BA410E - Trinocular: 1100100402981

Specifications

  • BA410E-B Elite Binocular Halogen Microscope

    BA410E-T Elite Trinocular Halogen Microscope
    SKU BA410E-BBA410E-T
    Warranty Limited Lifetime WarrantyLimited Lifetime Warranty
    MAP Copy MAP - MoticMAP - Motic
    System
    System Type BrightfieldBrightfield
    Optical Design DIN 160mmDIN 160mm
    Number of Heads Single Primary HeadSingle Primary Head
    Head
    Head Type BinocularTrinocular
    Head Rotation 360 Degrees360 Degrees
    Ocular Angle 30°30°
    Diopter Adjustment DualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 48-75 mm48-75 mm
    Trinocular Type Switchable Beam-SplitSwitchable Beam-Split
    Ocular Tube Diameter 30 mm30 mm
    Body
    Nosepiece Orientation ReversedReversed
    Nosepiece Style Sextuple (6)Sextuple (6)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Focus Control Safety Stop Slip ClutchSlip Clutch
    Stage Type Mechanical XYMechanical XY
    Stage Features Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)
    Stage Range of Movement (XY) 80mm x 53mm80mm x 53mm
    Stage Range Graduated? YesYes
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 12.5X, 15X12.5X, 15X
    Min Standard Mag 40X40X
    Max Standard Mag 1000X1000X
    Included Objectives (Qty) 44
    Objective Lens PlanPlan
    Included Objective Types BrightfieldBrightfield
    Objective 1 Description EC-H PL4XEC-H PL4X
    Objective 1 N.A. 0.100.10
    Objective 1 W.D. 15.9mm15.9mm
    Objective 2 Description EC-H PL10XEC-H PL10X
    Objective 2 N.A. 0.250.25
    Objective 2 W.D. 17.4mm17.4mm
    Objective 3 Description EC-H PL40X SEC-H PL40X S
    Objective 3 N.A. 0.650.65
    Objective 3 W.D. 0.5mm0.5mm
    Objective 4 Description EC-H PL100X S-OilEC-H PL100X S-Oil
    Objective 4 N.A. 1.251.25
    Objective 4 W.D. 0.15mm0.15mm
    Condenser
    Condenser Type Abbe BrightfieldAbbe Brightfield
    Condenser Features Achromatic, Centerable, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder, Swing-out Secondary LensAchromatic, Centerable, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder, Swing-out Secondary Lens
    Condenser N.A. 0.9 mm0.9 mm
    Filters Included BlueBlue
    Illumination
    Illumination Type HalogenHalogen
    Illumination Style TransmittedTransmitted
    Collector Type KohlerKohler
    Collector Features Field DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 6V 50W6V 50W
    Transmitted Light Control VariableVariable
    Power Supply 100 - 240V UL100 - 240V UL
    Epi-Fluorescence
    Epi-Fluorescence System Details Complete Epi-Fluorescence Attachment for BA consists of the following individually listed parts: Epi-Fluorescence attachment with filter cassette Mercury Lamp 100W Lamphouse HBO 100W, collector Lens and Mercury Lamp socket Starter unit HBO 100W Lamp centering tool Power cord Complete Epi-Fluorescence Attachment for BA consists of the following individually listed parts: Epi-Fluorescence attachment with filter cassette Mercury Lamp 100W Lamphouse HBO 100W, collector Lens and Mercury Lamp socket Starter unit HBO 100W Lamp centering tool Power cord
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount
    Reticles
    Reticles Available? YesYes
    Reticle Diameter (10X Eyepiece) 22M22M
    Accessories
    Included Extras Dust Cover, Immersion OilDust Cover, Immersion Oil

  • Complete EPI-Fluorescence Kit for BA410 ELITE
    SKU BA410-EPI
    MAP Copy MAP - Motic

  • DAPI Filter Set (Exciter D350, Emitter D460, Dichroic 400DCLP)

    Texas Red Filter Set (Exciter D560, Emitter D630, Dichroic 595DCLP)

    Endow GFP Filter Set (Exciter HQ470, Emitter HQ525, Dichroic Q495LP)

    Yellow GFP Filter Set (Exciter HQ500, Emitter HQ535, Dichroic Q515LP)

    Cyan GFP Filter Set (Exciter D436, Emitter D480, Dichroic 455DCLP)

    FITC Filter Set (Exciter D480/30x, Emitter D535/40m, Dichroic 505DCLP)

    MB-1 Filter Set (Exciter D470/40x, Emitter E515Lpv2, Dichroic 495DCLP)
    SKU BA410-DAPIBA410-TRBA410-EndowBA410-YeliowBA410-CYANBA410-FITCBA410-MB-1
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - Motic

  • Cross line with micrometer (100 divisions in 10mm)
    SKU MCR-CLM
    MAP Copy MAP - Motic

  • 20X EC-H Plan Objective Lens

    40X EC-H Plan Objective Lens

    60X EC-H Plan Objective Lens
    SKU MOOBJ-20XECPLMOOBJ-40XECPLMOOBJ-60XECPL
    MAP Copy MAP - MoticMAP - MoticMAP - Motic
    Objectives
    Objective Lens PlanPlanPlan
    Objective Lens Power 20x40x60x

  • 12.5X Eyepiece For Motic Compound Microscope
    SKU MEP-N-WF-12.5X
    MAP Copy MAP - Motic
    Compatibility
    Compatible With OM99, OM99T
    Eyepiece Magnification 10x

  • Moticam 3+ 3.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 5+ 5.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 1080 HDMI and USB2.0 Output Digital Microscope Camera
    SKU MC3+MC5+MC1080
    Product Weight 1.00001.00001.0000
    MAP Copy MAP - MoticMAP - MoticMAP - Motic
    Sensor
    Sensor Type CMOSCMOSCMOS
    Sensor Size 1/2 Inch1/2.5 Inch1/2.5 Inch
    Color/Monochrome ColorColorColor
    Pixel Pitch 3.2um x 3.2um2.2um x 2.2um2.8um x 2.8um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressive
    Signal to Noise Ratio 43db38.1db38.1db
    Sensitivity 1,0V/Lux-sec (550nm)1,4V/Lux-sec (550nm)1,4V/Lux-sec (550nm)
    Dynamic Range 61db70.1db70.1db
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 3 Megapixel, 2048x1536 pixels5 Megapixel, 2592x1944 pixels
    Camera Output Resolutions  1920 X 1080
    FPS @ Max Res 12 fps @ 2048 x 153614 fps60fps (2.0MP) HDMI
    FPS @ Min Res 50 fps @ 512 x 38450 fps15fps (2.0MP) USB2.0
    Camera Interface USB 3.0USB 3.0USB 2.0, HDMI
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManualManual
    Software Included Motic Images Plus 2.0MLMotic Images Plus 3.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Exposure Time 0.11 sec - 7 sec0.15msec - 5 sec
    Operating Temperatures -30°C to +70°C-30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube, CS Ring Adaptor, Software CD, USB 3.0 cable, Calibration Slide Micrometer.Focusable Macro Lens, C-ring, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer, USB 2.0 cable, HDMI cable, RCA Composite video cable. NOTE: Accepts Standard size SD cards.
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 10, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-Mount

  • C-Mount Adapter 0.5X for Motic Microscopes

    C-Mount Adapter 0.35X for Motic Microscopes
    SKU MCA-05XMCA-035X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit BinocularDoes not fit Binocular
    MAP Copy MAP - MoticMAP - Motic
