Dino-Lite MS37B-2X Table Top Rigid Stand with Dual Poles, Holsters and One Boom Arm

Our Price: $299.00

SKU: MS37B-2X

Availability: In stock

  • Side-by-side comparative analysis
  • Simultaneous viewing from different angles
  • 360-degree horizontal positioning
  • Vernier control for precise vertical focusing
  • Graduated scale etched into the base for easy reference
  • Horizontal boom arm for viewing large specimens

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • MS37B-2X Table Top Rigid Stand
  • MS37B-2X Table Top Rigid Stand 2
  • MS37B-2X Table Top Rigid Stand 3
  • MS37B-2X Table Top Rigid Stand 5
Description

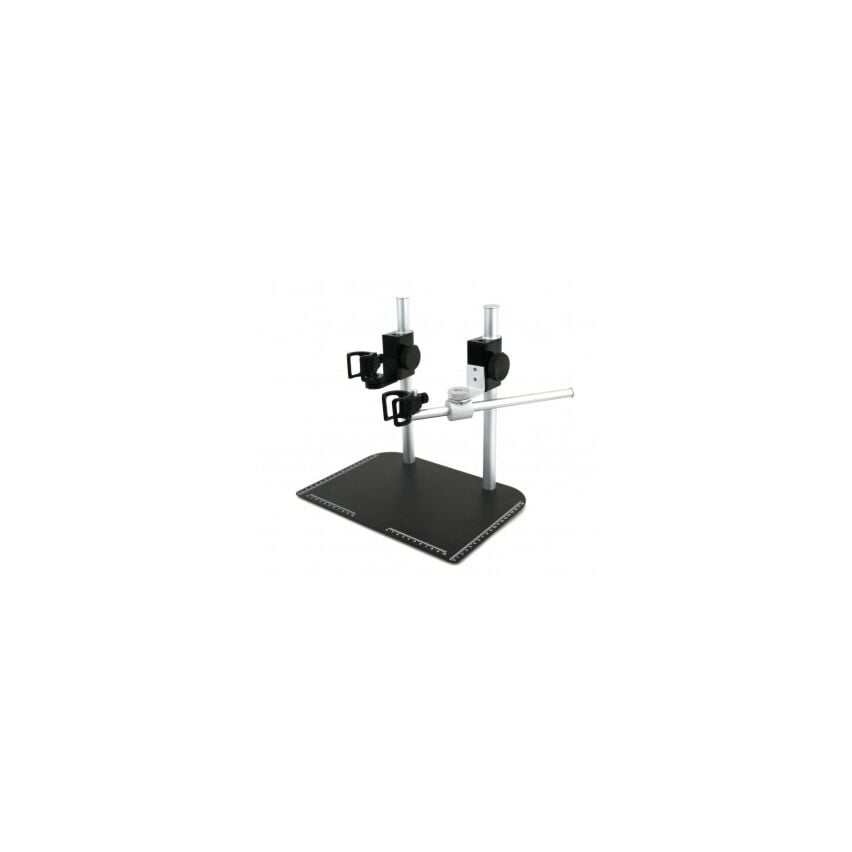

The MS37B-2X is another addition to the Dino-Lite line of rigid tabletop stands. Similar in operation to the MS37B-25, the MS37B-2X offers a horizontal boom arm on one of the holsters for more flexible viewing angles. It is designed for use with 2 microscope cameras and features 2 vertical poles and 2 focus blocks with dual holster assemblies, one of which is attached to a boom arm, which can be positioned in close or apart, as needed.

The key benefit of this arrangement is simultaneous side-by-side on-screen comparison of 2 individual specimens, or viewing 1 object from different angles. The ability to compare and contrast an unknown specimen against a known control makes this an ideal tool for law enforcement officials, forensics specialists, crime scene investigators and research scientists.

The vertical post allows 360-degree rotational positioning of the observed specimen and up to 10 inches of working distance, which can be very useful when dealing with over-sized specimens or working with tools during observation.

The dual holsters offer up to 45 degrees of viewing off the vertical axis, the boom arm can rotate 360 degrees, and most importantly, each holster secures to a focus block with a fine-focus mechanism for precise vertical positioning. This in turn results in sharp, vividly-detailed on-screen images for capture and documentation. Precision machine-crafted components ensure a lifetime of performance in a well balanced and stable ergonomic design. Wt. 5.2 Lbs; Size 12.5" x 8.75" x 11.75".

NOTE: Microscopes sold separately.

Specifications

MS37B-2X Table Top Rigid Stand with Dual Poles, Holsters and One Boom Arm
General
SKU MS37B-2X
Short Description
  • Side-by-side comparative analysis
  • Simultaneous viewing from different angles
  • 360-degree horizontal positioning
  • Vernier control for precise vertical focusing
  • Graduated scale etched into the base for easy reference
  • Horizontal boom arm for viewing large specimens
Stand
Stand Features Portable
Base Width 5
Base Depth 8
Post Height 12
