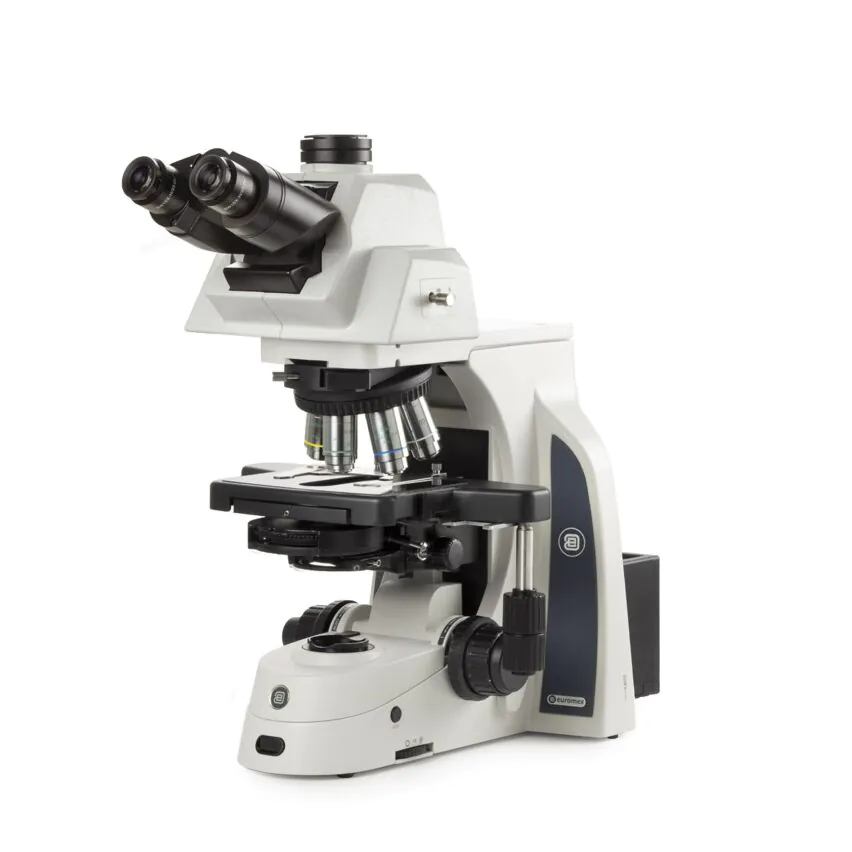

Euromex EDX-2158-PLPHi Delphi-X Observer Phase Contrast Trinocular Microscope

SKU:

EDX-2158-PLPHi

In stock

You pay: $12,945.20

Free Shipping,

30 Day Money Back Guarantee

The Euromex Delphi-X Observer DX.2158-PLPHI is a state-of-the-art microscope designed for advanced life science applications, featuring an ergonomic 0 to 35° tilting trinocular head and a 100 W halogen Köhler illumination system. It is equipped with the Enhanced Infinity System (EIS), utilizing high-resolution 60 mm parafocal Plan Phase objectives and super wide field 10x/25 mm eyepieces to provide an expansive 25 mm field of view with superior contrast. Key features include a revolving sextuple nosepiece, a large rackless mechanical stage with scratch-resistant Gorilla glass, and an iCare sensor that automatically saves energy when the user steps away.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Euromex Delphi-X Observer DX.2158-PLPHI

[cite_start]The Euromex Delphi-X Observer DX.2158-PLPHI is a top-tier workstation engineered for demanding Life Science applications such as cytology and anatomopathology[cite: 279, 287, 289]. [cite_start]This model features a high-performance 100 W halogen Köhler illumination system and an ergonomic 0-35° tilting trinocular head, ensuring maximum user comfort during extended observation sessions[cite: 10, 102, 136, 341].

Advanced Optical Performance

[cite_start]Equipped with the Enhanced Infinity System (EIS), this microscope utilizes a 200 mm focal length tube lens to significantly improve contrast and chromatic aberration corrections[cite: 61, 63]. [cite_start]The system provides an expansive 25 mm field of view through Super Wide Field (SWF) 10x/25 mm eyepieces, allowing for higher resolving power very close to the theoretical diffraction limit[cite: 62, 64, 116].

Key Features & Ergonomics

Plan Phase EIS Objectives: Includes a set of 60 mm parafocal Plan Phase 10x, 20x, S40x, and S100x oil immersion objectives for superior detail in unstained specimens[cite: 49, 74, 136, 202].
Ergonomic Design: The 0 to 35° tilting head and low-position stage controls are designed to match individual user requirements and reduce fatigue[cite: 26, 331, 341].
Sextuple Revolving Nosepiece: A reversed nosepiece on ball-bearings with M25 mounting threads and a slot for optional DIC prisms[cite: 55, 56, 344].
Rackless Mechanical Stage: A large 190 x 152 mm stage equipped with scratch-resistant Gorilla glass for durability and safety[cite: 77, 79, 80, 348].
iCare Energy Sensor: Automatically powers down the illumination when the operator steps away to prevent unnecessary energy loss[cite: 118, 119, 457].
Precise Focusing: Features coaxial coarse and fine adjustments with 1 µm precision and friction control[cite: 83, 85, 418].

Technical Specifications

[cite_start] [cite_start] [cite_start] [cite_start]

Component	Specification
Head	Ergonomic tilting trinocular head (0° to 35°) with 3-position beam splitter (100:0/80:20/0:100)[cite: 26, 27, 341].
Eyepieces	Super Wide Field SWF 10x/25 mm, Ø 30 mm tubes[cite: 21, 62].
Illumination	100 W 24 V Halogen Köhler with internal power supply and two neutral density filters[cite: 102, 103, 136].
Condenser	Height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli[cite: 91, 92, 425].
