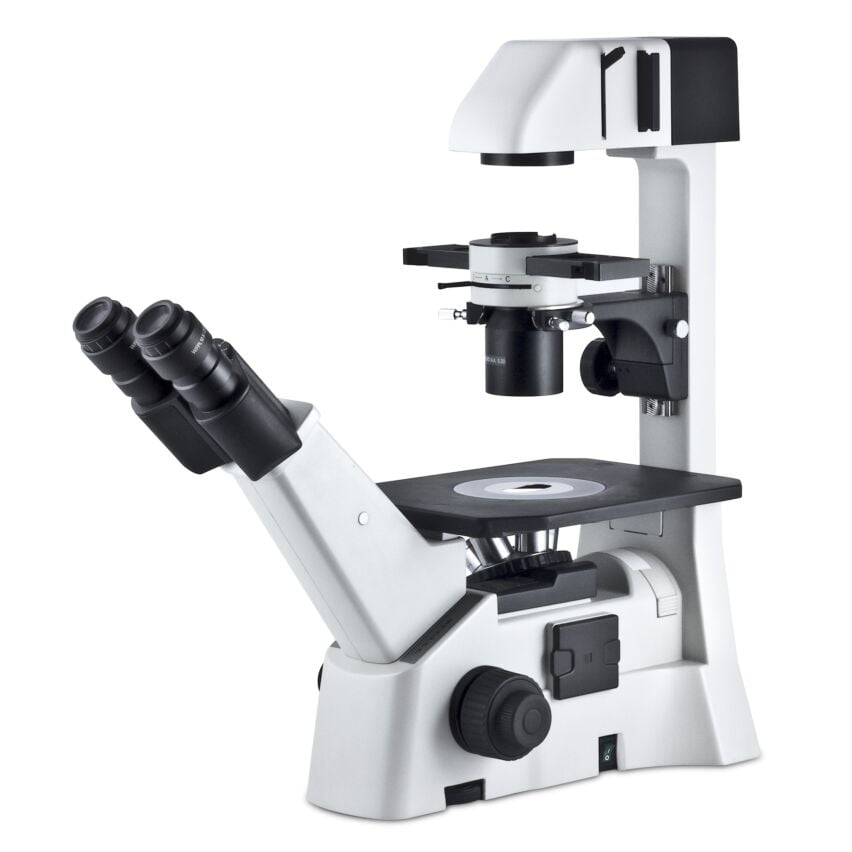

Motic AE31 Elite Inverted Phase Contrast Microscope

List Price: $3,395.00

Starting at: $3,195.00

SKU: AE31

Availability: In stock

  • Infinity Corrected Optical System
  • One Plan Achromat objective, PL4x
  • Two Plan Phase Achromat objectives, PH10x, PH20x

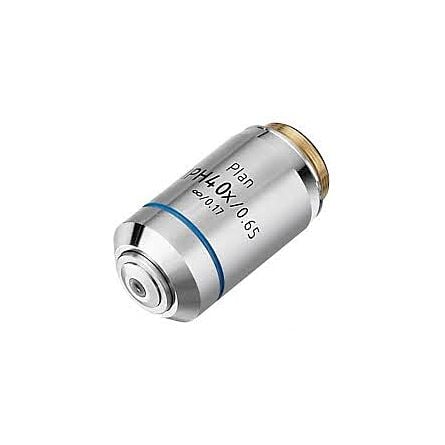

  • Optional PH40X objective available
  • High Eyepoint WF PL10X eyepieces
  • Halogen 6V30W or 3W LED illumination
  • Easy upgrade to Epi-Fluorescence
  • Binocular or trinocular configuration

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $76.00
  • $665.00
  • $4,499.00
  • $930.00
  • $930.00
  • $930.00
  • $930.00
  • $1,108.00
  • $629.00
  • $809.00
  • $995.00
  • $139.00
  • $195.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • AE31 Elite Inverted Phase Contrast Microscope
  • AE31 Elite Inverted Phase Contrast Microscope camera
  • AE31 Elite Inverted Phase Contrast Microscope epi
  • AE31 Elite Inverted Phase Contrast Microscope phase slider
  • AE31 Elite Inverted Phase Contrast Microscope auto switch
  • AE31 Elite Inverted Phase Contrast Microscope eyetubes
Description

Summary

The Motic AE31 Elite is purpose-built for routine laboratory or clinical work, as well as research requirements in Pharmaceutical Laboratories or Universities and delivers the sharp brightfield and phase contrast performance these applications depend on. Key upgrades from the AE2000 include bigger eyepieces, a quintuple nosepiece and two full Plan Phase objectives as standard. The proven CCIS Infinity Optical System includes one Plan objective (PL4X) and two Plan Phase objectives (PH10x and PH20x) mounted in a left-side-oriented quintuple nosepiece.

They combine with two WF Plan 10X/22mm eyepieces for magnification powers of 40x, 100x and 200x, and a configuration also including the Plan PH40X objective is optionally available. In addition, uniquely integrated features include auto-power-cutoff and conventional 45-degree viewing tubes. Standard 6V30W Halogen illumination can be field-converted to 3W LED, adding to a versatile and highly capable observation platform.

Optics

The Siedentopf head is inclined at a comfortable 45° and offers butterfly-movement interpupilliary adjustment from 55mm to 75mm and the eyepieces include dual +/- 5 diopter adjustment to minimize eye strain and fatigue. The standard high eye-point WF PL10X eyepieces will accept optional plain or graduated cross hair reticles. The Plan PH10X and PH20X Achromatic objectives feature proprietary multi-layer coating for improved light transmission, yielding significantly brighter and sharper images. They are housed in a liquid-proof, left-side-oriented, bearing-supported quintuple nosepiece. A configuration including the PH40X is optionally available.

Stage & Focus

The plain stage measures 200mm x 260mm and includes a replaceable glass insert with 45mm opening, along with a metal insert with a contoured cutout to provide clearance for the objectives. A mechanical stage and a variety of specimen holders are optionally available. Coaxial coarse/fine focus controls offer 10mm of Z-axis movement and include adjustable tension control and ergonomic placement for ease of operation during use.

Condenser & Illumination

The N.A 0.30 condenser features an extra long working distance of 72mm and three-ring phase slide set. For additional viewing flexibility the lower portion can be removed from its dovetail mount, increasing working distance to 184mm. A centering telescope and intensity-controllable 6V30W Halogen bulb combine to produce bright, evenly-illuminated images.

For heat-sensitive applications, the AE31 Elite can easily be field-converted to 3W LED by replacing the Halogen bulb with an optional LED module. For added safety the AE31 Elite also features power-smart technology which uses an IR motion sensor to enable "sleep mode" after 15 minutes of inactivity. Normal power is restored upon the users return.

Accessories

45mm Blue, Green Interference and Diffusion filters with filter slide, Allen hex key, Manual, vinyl dust cover, universal power supply 100V-240V.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • AE31 Elite Binocular Inverted Phase Contrast Microscope

    AE31 Elite Trinocular Inverted Phase Contrast Microscope
    SKU AE31-BAE31-T
    Warranty Limited Lifetime WarrantyLimited Lifetime Warranty
    Product Weight 23.000023.0000
    Product Length 485 mm485 mm
    Product Width 220 mm220 mm
    Product Height 411 mm411 mm
    MAP Copy MAP - MoticMAP - Motic
    System
    System Type Brightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase Contrast
    Optical Design Infinity CorrectedInfinity Corrected
    Head
    Head Type BinocularTrinocular
    Ocular Angle 45°45°
    Diopter Adjustment SingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 55 – 75 mm55 – 75 mm
    Trinocular Type  Beam Split Continuous
    Trinocular Standard  Dovetail Mount
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 30 mm30 mm
    Body
    Nosepiece Orientation Side-facingSide-facing
    Nosepiece Style Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type FixedFixed
    Stage Features Glass, Simple, SolidGlass, Simple, Solid
    Stage Dimensions 200 x 260200 x 260
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 12.5X, 15X12.5X, 15X
    Min Standard Mag 40X40X
    Max Standard Mag 200X200X
    Included Objectives (Qty) 22
    Objective Lens PlanPlan
    Included Objective Types Brightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase Contrast
    Objective 1 Description Plan Achromat PL PH4XPlan Achromat PL PH4X
    Objective 1 N.A. 0.100.10
    Objective 1 W.D. 12.6mm12.6mm
    Objective 2 Description Plan Achromat Phase PL PH10XPlan Achromat Phase PL PH10X
    Objective 2 N.A. 0.250.25
    Objective 2 W.D. 4.1mm4.1mm
    Objective 3 Description Plan Achromat Phase PL PH20XPlan Achromat Phase PL PH20X
    Objective 3 N.A. 0.30.3
    Objective 3 W.D. 4.7mm4.7mm
    Condenser
    Condenser Type Zernike PhaseZernike Phase
    Condenser Features Aspheric, Centerable, Iris Diaphragm, Long Working DistanceAspheric, Centerable, Iris Diaphragm, Long Working Distance
    Condenser N.A. 0.30 mm0.30 mm
    Filter Diameter 45 mm45 mm
    Filters Included Blue, Diffusion, Green InterferenceBlue, Diffusion, Green Interference
    Illumination
    Illumination Type Halogen, LEDHalogen, LED
    Illumination Style Transmitted, Phase ContrastTransmitted, Phase Contrast
    Collector Type KohlerKohler
    Collector Features Diffusion FilterDiffusion Filter
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 6V 30W6V 30W
    Transmitted Light Control VariableVariable
    Power Supply 110V-240V AC Auto Voltage Sensing110V-240V AC Auto Voltage Sensing
    Available Imaging Mounts 0.66X C-Mount, F-Mount, Other SLR, T-Mount0.66X C-Mount, F-Mount, Other SLR, T-Mount
    Accessories
    Included Extras Dust CoverDust Cover

  • 3W LED conversion module for AE Series (4500K)
    SKU MCLED-AE2-4.5
    MAP Copy MAP - Motic

  • AE Series Universal attachable mechanical stage with well plate holders
    SKU MCA-AE Stage
    MAP Copy MAP - Motic

  • Complete EPI-Fluorescence Kit for AE31 ELITE
    SKU AE31-EPI
    MAP Copy MAP - Motic

  • DAPI Filter Set (Exciter D350, Emitter D460, Dichroic 400DCLP)

    Texas Red Filter Set (Exciter D560, Emitter D630, Dichroic 595DCLP)

    Cyan GFP Filter Set (Exciter D436, Emitter D480, Dichroic 455DCLP)

    Yellow GFP Filter Set (Exciter HQ500, Emitter HQ535, Dichroic Q515LP)

    Endow GFP Filter Set (Exciter HQ470, Emitter HQ525, Dichroic Q495LP)
    SKU AE31-DAPIAE31-TRAE31-CYANAE31-YeliowAE31-Endow
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - Motic

  • Moticam 3+ 3.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 5+ 5.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 1080 HDMI and USB2.0 Output Digital Microscope Camera
    SKU MC3+MC5+MC1080
    Product Weight 1.00001.00001.0000
    MAP Copy MAP - MoticMAP - MoticMAP - Motic
    Sensor
    Sensor Type CMOSCMOSCMOS
    Sensor Size 1/2 Inch1/2.5 Inch1/2.5 Inch
    Color/Monochrome ColorColorColor
    Pixel Pitch 3.2um x 3.2um2.2um x 2.2um2.8um x 2.8um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressive
    Signal to Noise Ratio 43db38.1db38.1db
    Sensitivity 1,0V/Lux-sec (550nm)1,4V/Lux-sec (550nm)1,4V/Lux-sec (550nm)
    Dynamic Range 61db70.1db70.1db
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 3 Megapixel, 2048x1536 pixels5 Megapixel, 2592x1944 pixels
    Camera Output Resolutions  1920 X 1080
    FPS @ Max Res 12 fps @ 2048 x 153614 fps60fps (2.0MP) HDMI
    FPS @ Min Res 50 fps @ 512 x 38450 fps15fps (2.0MP) USB2.0
    Camera Interface USB 3.0USB 3.0USB 2.0, HDMI
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManualManual
    Software Included Motic Images Plus 2.0MLMotic Images Plus 3.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Exposure Time 0.11 sec - 7 sec0.15msec - 5 sec
    Operating Temperatures -30°C to +70°C-30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube, CS Ring Adaptor, Software CD, USB 3.0 cable, Calibration Slide Micrometer.Focusable Macro Lens, C-ring, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer, USB 2.0 cable, HDMI cable, RCA Composite video cable. NOTE: Accepts Standard size SD cards.
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 10, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-Mount

  • C-Mount Adapter 0.5X for Motic Microscopes

    C-Mount Adapter 0.35X for Motic Microscopes
    SKU MCA-05XMCA-035X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit BinocularDoes not fit Binocular
    MAP Copy MAP - MoticMAP - Motic
