Meiji Techno
HD1500TM Color HD 2MP CMOS 60FPS HDMI USB 2.0 Digital Microscope Camera and 11.6" Screen
In stock
SKU:
HD1500TM
- High definition 1080P HDMI and USB2.0 output
- Streaming HDMI output direct to included 11.6" monitor at 60 fps
- Auto white balance for color accuracy
- Included memory card slot
- Measurement software

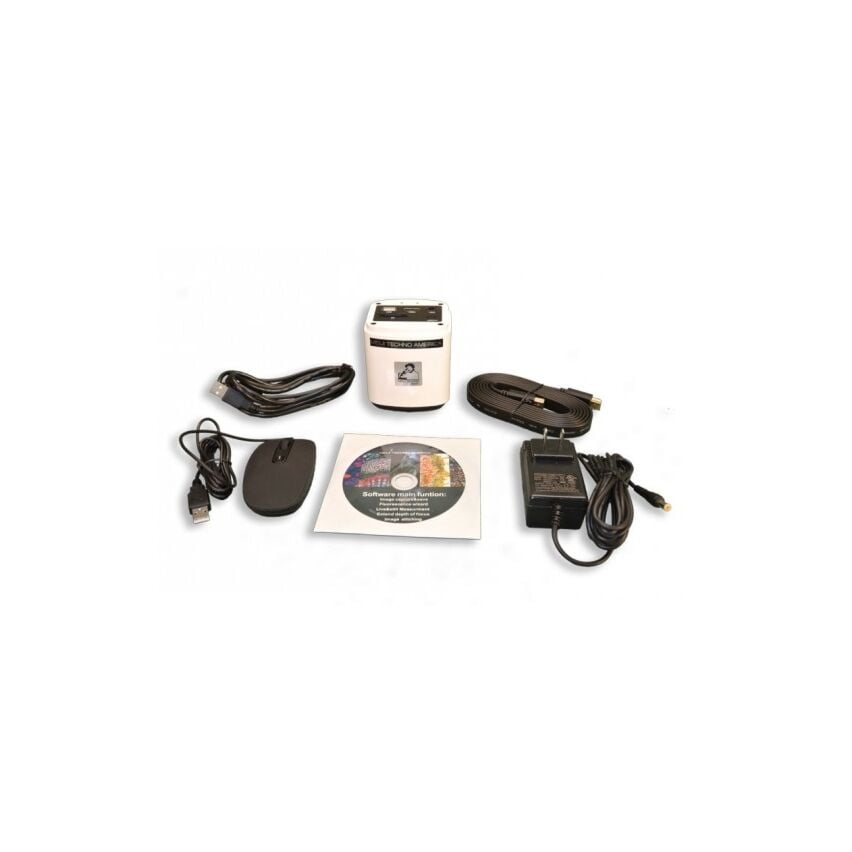

- HDMI cable and USB remote included
You pay:
$1,750.00
Free Shipping
30 Day Money Back Guarantee
Live Chat
Summary

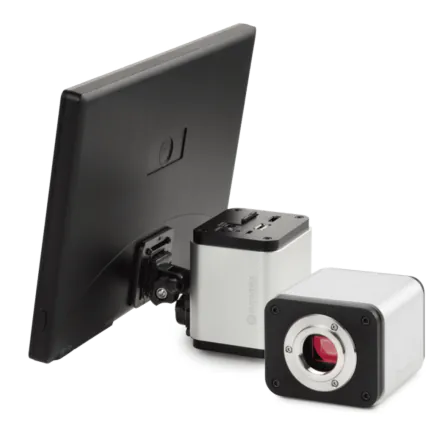

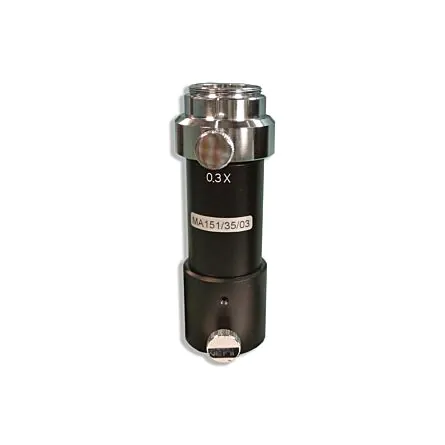

The HD1500TM is our full featured 6 MP camera with a 1/3” CMOS chip and 11.6" screen. A 0.3X C” mount adapter (MA151/35/03) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD1500T features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI, so there is absolutely no lag in the live video feed when moving your specimen or part.
| Brand | Meiji Techno |
|---|---|
| Warranty | 1 Year |
| Product Weight | 2 |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1/2.5 Inch |
| Sensor Details | SONY IMX236 |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 2.8um x 2.8um |
| Scan Mode | Progressive |
| Peltier Cooling | No |
| Shutter | Electronic |
| Camera Mount | C-Mount |
| Resolution | 2.0 megapixels |
| FPS @ Max Res | 60 @ 1920 x 1080 |
| Camera Interface | USB 2.0 |
| White Balance | Automatic |
| Driver API Compatibility | DirectX |
| Power Source | External Power Supply |
| File Formats | BMP |
| Exposure Control | Automatic |
| Exposure Time | 0.1ms - 999s |
| Operating Temperatures | 20-60 Deg. C |
| Operating Humidity | 30-80% RH |
| Supported Operating Systems | Windows 10 |
| System Requirements | 2GB RAM Recommended |
| Certifications | CE |
| Cable Length | 2.5m (8ft) |
| Camera Warranty | 1 Year |
| Software Support | 6 Months |
| Imaging Compatibility (with adapters) | C-Mount |
