OptixCam

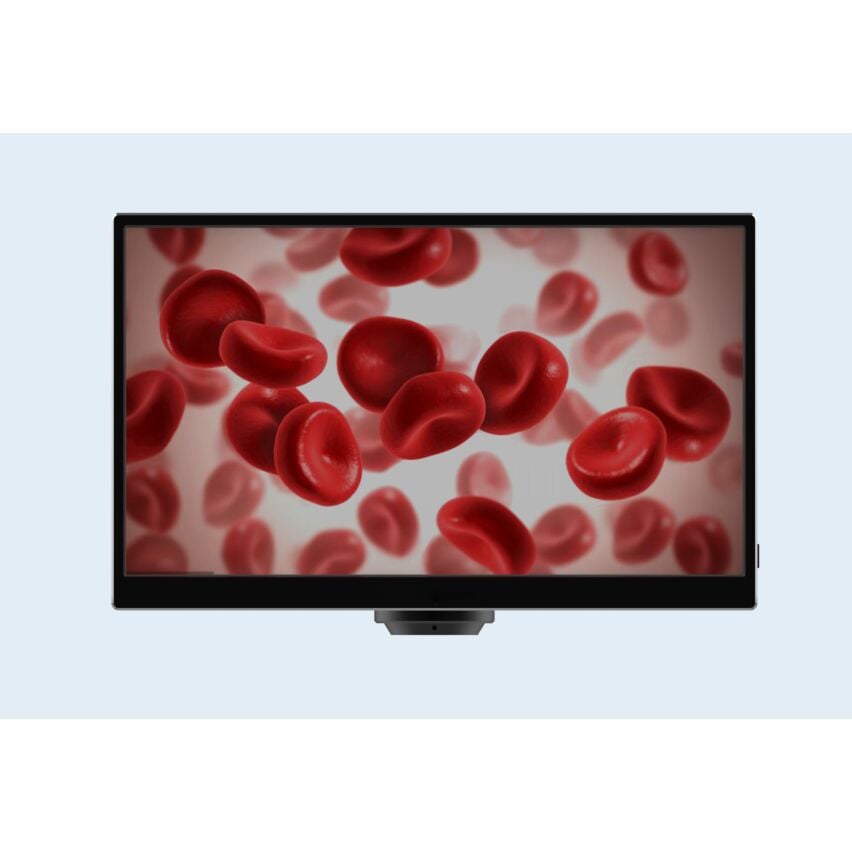

CX3 5.0MP Microscope Camera with 11.6-Inch TFT Display

In stock

SKU:

TMS-CX-3

Authorized Dealer

Expansive 11.6-inch TFT-LCD color display
1080p LCD Display, HDMI & Flash Drive output
Full Resolution Image capture 2592 x 1944 (5MP)
Full Resolution Video 30 FPS @ 1920 X 1080P
SONY IMX335 5MP CMOS 1/2.8" chip sensor
Multi-function Remote Controller
Auto-Sensing Input Power Adapter
No PC or software required

Select Package Options:

Camera

CX3 1080p 5.0MP Microscope Camera with 11.6-Inch Display + $799.00

C-Mount Adapter

1 x Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras + $59.00

1 x Adjustable 23mm Camera Adapter 0.37X for SK2 Series Cameras + $79.00

Included in Bundle

* Required Fields

CX3 5.0MP Microscope Camera with 11.6-Inch TFT Display

You pay: $858.00

Regular Price: $1,115.40

Qty:

You pay: $858.00

Regular Price: $1,115.40

Free Shipping

Qty:

Add To Wishlist

30 Day Money Back Guarantee

Live Chat

Details

Summary

An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a large 11.6" monitor and an improved on screen menu system. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability. The new camera attaches to any standard trinocular microscope fitted with a C-mount adapter.

Features

The CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with intuitive on-screen menu options and a wireless mouse control.

Standard HDMI and USB 2.0 slots allow convenient output of live or recorded images and video files. Other features include measuring and note taking ability, RGB adjustment, auto and manual white balance and auto exposure.

The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.
