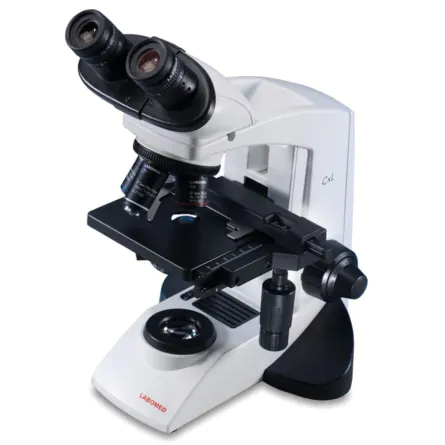

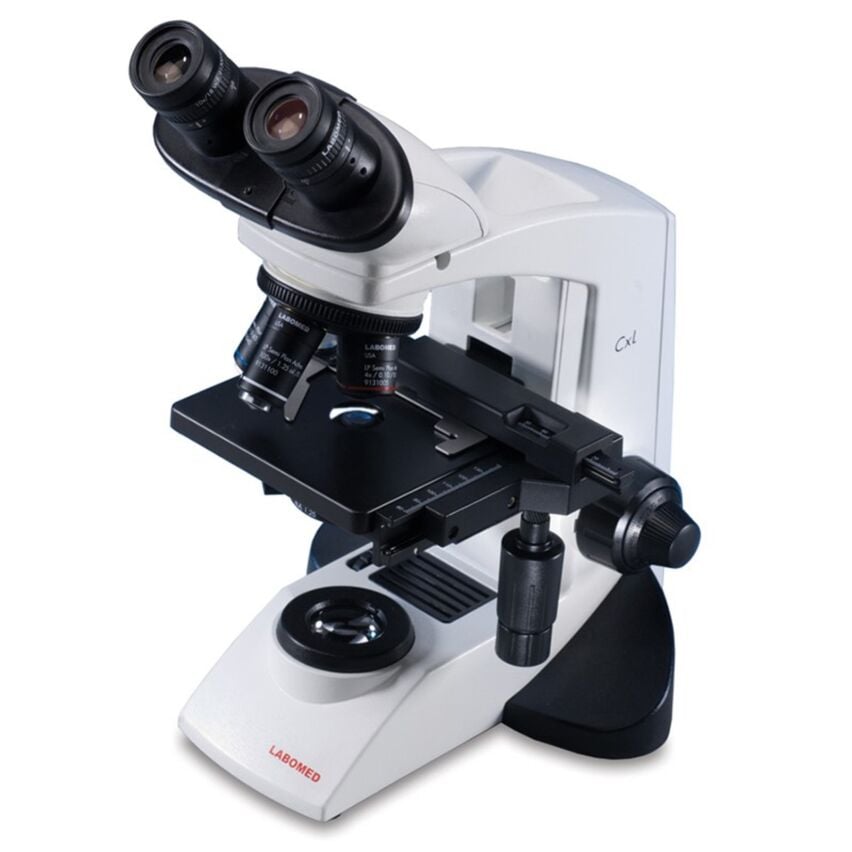

The Labomed CxL microscope is expertly designed for educational and low-volume laboratory applications, offering professional-grade performance at an outstanding value. Featuring newly enhanced optics and an ergonomic design, the CxL provides superior image clarity and user comfort. The microscope comes equipped with a rechargeable LED illumination system (CE approved with universal power supply), allowing for cordless operation and portability — perfect for dynamic classroom and field use.

The binocular head is capable of rotating 360 degrees for flexible positioning. The wide field 10x/18mm eyepieces lock securely to prevent tampering, while the ball-bearing mounted quadruple nosepiece ensures smooth and precise objective changes. Objective lens configurations include DIN Semi-Plan Achromat lenses, available with 4 objectives- 4x, 10x, 40x, and an extended set including a 100x oil immersion lens for more advanced work.

A durable mechanical XY stage with fine movement controls, along with a fully focusable 1.25 N.A. condenser, provide excellent precision and contrast for detailed observations. Built on a sturdy stand with an extended base for added stability, the CxL is built to withstand rigorous daily use. A wide variety of accessories and upgrade options — including phase contrast, darkfield, and polarizing kits — are available to customize the microscope to specific needs.

Recommended for high school, university, and light laboratory environments, the Labomed CxL brings high-end features at a fraction of the cost of competing models and is backed by a manufacturer's five-year warranty for peace of mind.

• Objective

  LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x, and 100x (spring loaded)

• Nosepiece

  Quadruple nosepiece turret (Ball bearing type) with rubber grip

• Viewing Body

  45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm

• Electronics

  Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer. Dimensions (mm) Labomed CxL Microscope Line Drawing

• Packaged Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

• Stand

  Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.

• Eyepiece

  Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating

• Condenser

  Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides

• Mechanical Stage

  Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

• Focusing

  Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

• Illumination

  LED illumination with variable illumination control. Up to 100,000 hours of LED life
