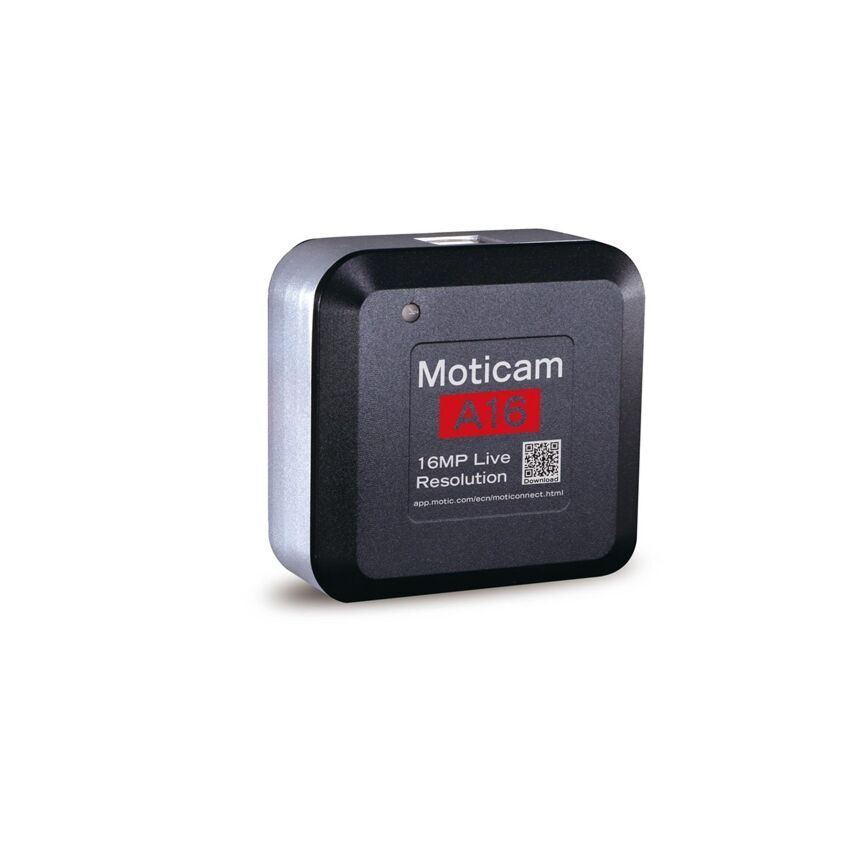

Moticam A16 16MP COLOR PC/MAC Digital Microscope Camera, MPN 1100600101463
SKU:
A16
In stock
You pay:
$627.00
Free Shipping,
30 Day Money Back Guarantee
- 16MP SCMOS sensor with excellent color
- MAC/PC compatible
- USB2.0 output
- Stills & Live Image video
- 1920 x 1080 pixels @ 30fps
- C-mount required
- Calibration slide for accurate measurements
- FREE telephone support
Moticam A16
The new Moticam A16 Series 16.0MP digital microscope camera is specifically designed as a cost-effective and versatile solution for the imaging requirements of life science and healthcare professionals, industrial inspectors and other disciplines. 16MP resolution offers excellent details for images projected on large screens or when printing with large-format applications. PC and MAC users benefit from easy-to-use feature-rich software, accurate color, clarity and image detail, while low noise USB 2.0 data transfer maximizes workflow and productivity.
Accessories
CS-ring adaptor, Focusable Lens, 30mm and 38mm Eyepiece Adapters, USB 2.0 Cable, Motic 4-Dot Calibration Slide, Macro Tube, Calibration Card MotiConnect for Windows/macOS/Linux (Download only)| Brand | Motic |
|---|---|
| Warranty | 1 Year |
| Product Weight | 2 |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1/3 Inch |
| Sensor Details | APTINA MT9J003 CMOS |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 1.7 µm x 1.7 µm |
| Sensor Color Depth | 8bpp / 24bit RGB |
| Scan Mode | Progressive |
| Signal to Noise Ratio | 34 db |
| Sensitivity | 1.0V/Lux-sec (550nm) |
| Dynamic Range | 65.2db |
| A/D Conversion | 12-bit Parallel, 8-bit R.G.B to PC |
| Peltier Cooling | No |
| Cooling System | Natural |
| Shutter | Electronic |
| Camera Mount | C-Mount |
| Resolution | 10 Megapixel, 3584 X 2748 pixels |
| Camera Output Resolutions | 3584 X 2748; 1792 x 1374; 896 X 684 |
| FPS @ Max Res | 1.9fps @3584 x 2748 |
| FPS @ Min Res | 27fps @896 x 684 |
| Camera Interface | USB 2.0 |
| White Balance | Automatic |
| Software Included | OptixCam K2View |
| Driver API Compatibility | DirectX |
| Power Source | USB |
| File Formats | BMP |
| Exposure Control | Automatic |
| Exposure Time | 2000ms-0.21s |
| Operating Temperatures | 10°C ~ 50°C |
| Operating Humidity | 30% ~ 80% RH |
| Storage Temperature | -20°C ~ 60°C |
| Included Accessories | 0.5X 23mm DIN Adapter, Software CD |
| Supported Operating Systems | Windows 10 |
| System Requirements | 2GB RAM Recommended |
| Certifications | CE |
| Cable Length | 1.8m (8ft) |
| Camera Warranty | 1 Year |
| Software Support | 6 Months |
| Imaging Compatibility (with adapters) | 23mm |
