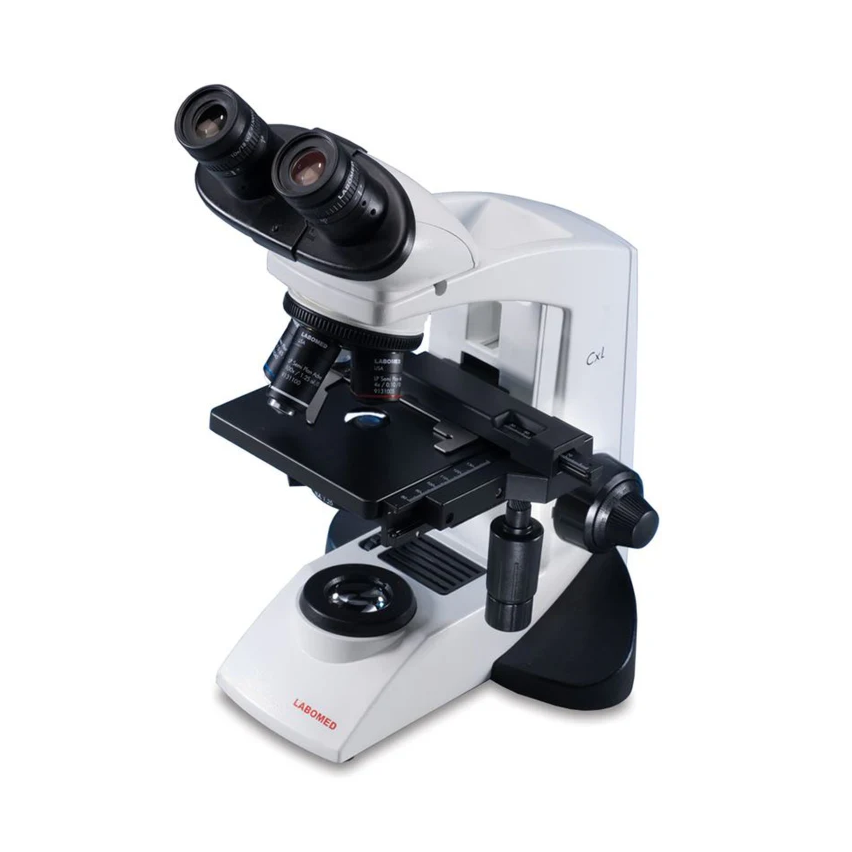

Labomed 9135010 CxL Binocular Compound Microscope, 3 Objectives

The Labomed CxL microscope is thoughtfully engineered for educational settings and low-volume lab work, delivering professional-grade optics and performance at an exceptional value. With its updated optical system and ergonomic design, the CxL offers outstanding image clarity and user-friendly operation. A CE-approved, rechargeable LED illumination system with a universal power supply provides cordless convenience, making it ideal for classroom or field use.

The binocular viewing head rotates a full 360 degrees for maximum flexibility. The 10x/18mm wide field eyepieces are designed to lock securely in place to prevent tampering, while the ball-bearing mounted, forward-facing quadruple nosepiece ensures effortless switching between objectives. This model comes with three DIN Semi-Plan Achromat objectives — 4x, 10x, and 40x — allowing for a wide range of magnification options.

Precision and ease of use are enhanced by a durable mechanical XY stage with fine movement controls and a fully adjustable 1.25 N.A. condenser for superior contrast. Built with a reinforced stand and extended base, the CxL is crafted for long-lasting stability and durability. A full suite of accessories and upgrade options — including phase contrast, darkfield, and polarizing attachments — are available to adapt the microscope to specialized needs.

Ideal for high schools, colleges, and light lab use, the Labomed CxL packs premium features into an affordable package and is protected by a five-year manufacturer’s warranty.

• Objective

  LP series DIN Semi-Plan Achromatic objectives 4x, 10x, and 40x

• Nosepiece

  Quadruple nosepiece turret (Ball bearing type) with rubber grip

• Viewing Body

  45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm

• Electronics

  Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer. Dimensions (mm) Labomed CxL Microscope Line Drawing

• Packaged Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

• Stand

  Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.

• Eyepiece

  Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating

• Condenser

  Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides

• Mechanical Stage

  Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

• Focusing

  Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

• Illumination

  LED illumination with variable illumination control. Up to 100,000 hours of LED life
