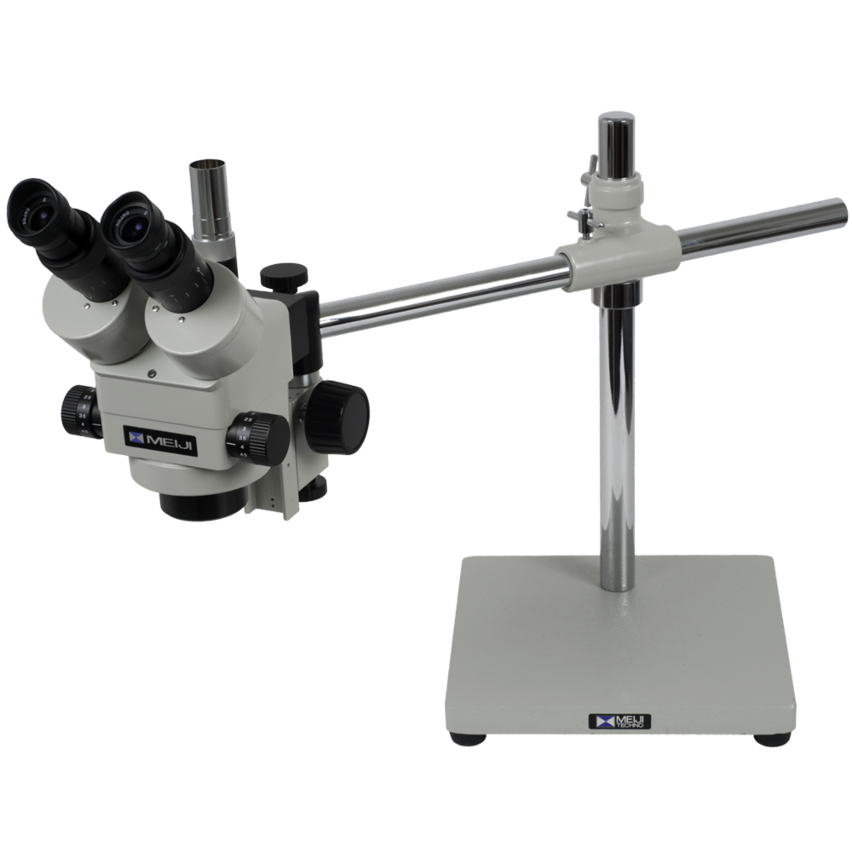

Meiji Techno SMD-5TR LED Stereo Microscope Inspection Station

List Price: $3,465.00

Starting at: $3,274.00

SKU: SMD-5TR

Availability: In stock

  • 7X-45X zoom magnification
  • Trinocular microscope head, standard WD = 93mm
  • Added 0.5X Barlow Lens, WD = 150mm
  • Paired 10X and 20X wide field eyepieces
  • S-4100 universal boom stand platform
  • LED 10W ring illumination system
Select package options

Click on to learn more about the option * signifies required items

EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents   $1,590.00
F Focus Block   $250.00
MA502 - 10X Super Widefield Paired Eyepieces   $150.00
MA504 - 20X Super Widefield Paired Eyepieces   $150.00
  • $150.00
  • $10.00
  • $395.00
  • $697.00
  • $659.00
  • $129.00
  • $129.00
  • $129.00
S-4100 Boom Stand   $610.00

Included in Bundle

Microscope: EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents

Focus Block: F Focus Block

Included Eyepieces: MA502 - 10X Super Widefield Paired Eyepieces

Add'l Included Eyepieces: MA504 - 20X Super Widefield Paired Eyepieces

Stand: S-4100 Boom Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • SMD-8TR Stereo Microscope Inspection Station
  • Meiji SMD-8TR Stereo Inspection station
  • SMD-8TR Stereo Microscope Inspection Station 3
  • SMD-8TR Stereo Microscope Inspection Station 4
  • SMD-8TR Stereo Microscope Inspection Station
Description

Summary

The Meiji SMD-5TR stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5TR zoom stereo trinocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.

Microscope

The EMZ-5TR stereo trinocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Two sets of wide field eyepieces, the MA502 10X and MA504 20X, are included for maximum versatility.

The S-4100 boom stand is solidly built and offers fully adjustable set screws to provide unlimited mounting flexibility.  The base platform offers a convenient base for an optional f iber optic illuminator.

All Meiji microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards and are sold with Meiji Techno's limited lifetime warranty.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents
    SKU EMZ5TRD
    Magnification Chart Meiji EMZ5 Magnification Chart
    Head
    Head Type Binocular
    Optical Design Greenough Converged
    Magnification Type Zoom
    Ocular Angle 45°
    Ocular Tube Diameter 30.5 mm
    Barlow Mount Diameter 50 mm
    Diopter Adjustment Dual
    Interpupillary Adjustment Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Body
    Body Material All-Metal
    Head Ring Mount Diameter 84 mm
    Max Working Distance (standard) 93mm

  • F Focus Block
    SKU F
    Focus Block
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Focus Block Mount Diameter 20 mm
    Head Ring Mount Diameter 84 mm

  • MA502 - 10X Super Widefield Paired Eyepieces
    SKU MA502
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 10x

  • MA504 - 20X Super Widefield Paired Eyepieces
    SKU MA504
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 20x

  • MA503 - 15X Super Widefield Paired Eyepieces
    SKU MA503
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 15x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • MA964 LED Ring Illuminator

    FL152 150W Halogen Annular Ring Fiber Optic Illuminator

    FL151 150W Dual-Arm Fiber Optic Illuminator
    SKU MA964FL152RFL151DP
    Notes MA964 LED ring illuminator mounts directly to EMZ Series without adapter
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*, EMZ-8*, EMZ-10, Z-7100, MA553/LED
    Light Specs
    Illumination Type  Fiberoptic
    Ring Light Type  FiberopticFiberoptic
    Ring Light Specification  150W150W
    Ring Light Control  VariableVariable

  • MA517 Barlow Lens 0.5X WD 150mm

    MA530 Barlow Lens 0.3X WD 252mm

    MA507 Barlow Lens 1.5X WD 49mm
    SKU MA517MA530MA507
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*
    Optical Accessory
    Barlow Lens Power 0.5X0.3X1.5X

  • S-4100 Boom Stand
    SKU S4100
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Post Diameter 29 mm
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Fixed
    Compatibility
    Focus Block Mount Diameter 20 mm
