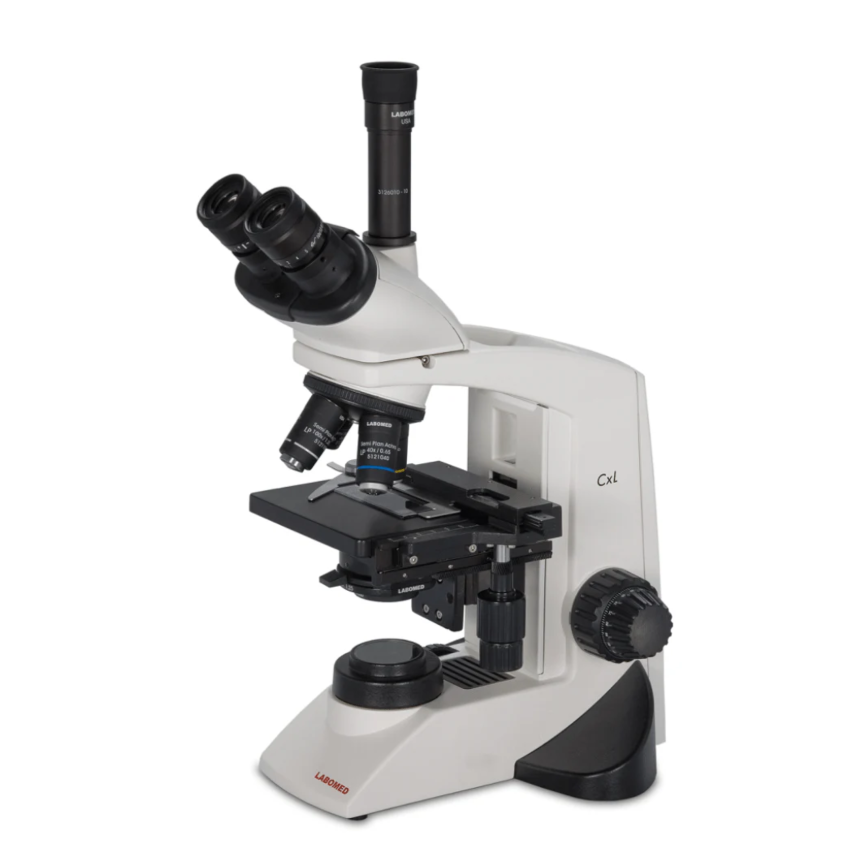

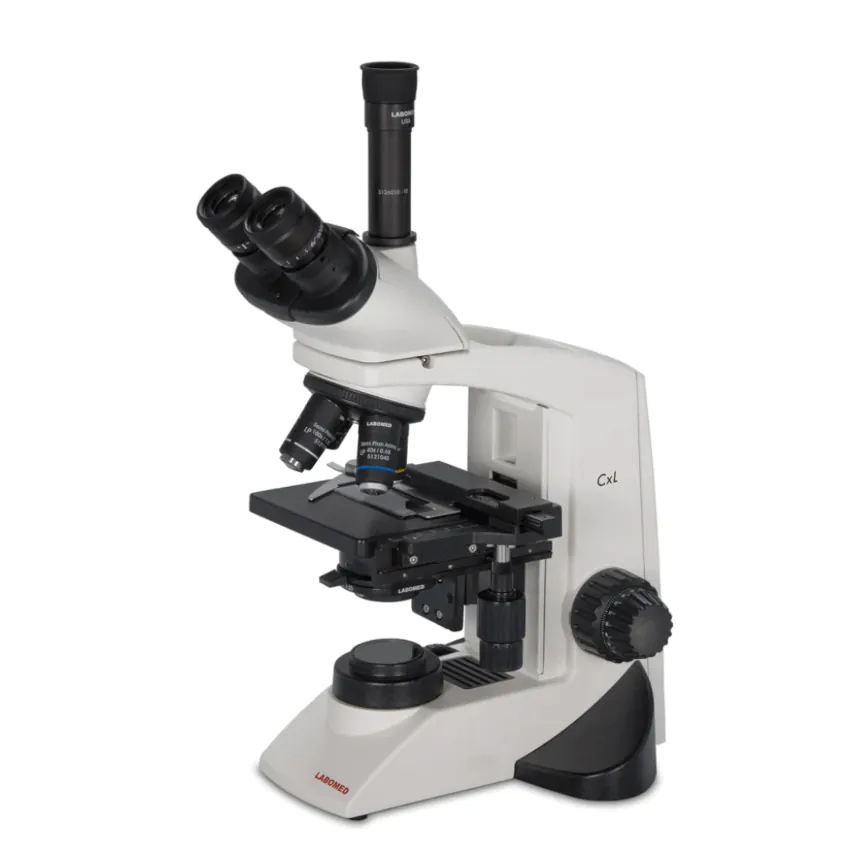

The Labomed CxL trinocular microscope blends contemporary design with reliable performance, making it an excellent choice for classrooms and low-volume lab applications. Built with upgraded optics and an ergonomic frame, the CxL delivers exceptional image clarity, comfort, and long-lasting durability. Its CE-approved LED illumination system, complete with a universal power supply and a rechargeable battery, provides variable, consistent lighting — ideal for both stationary and portable use.
Each CxL model is outfitted with Wide Field 10x eyepieces, a smooth-operating ball-bearing quadruple nosepiece, and DIN Semi-Plan Achromat objectives for sharp, detailed viewing across multiple magnifications. A precision-engineered mechanical stage combined with a fully adjustable 1.25 N.A. condenser ensures accurate specimen navigation and enhanced contrast. Crafted with a rugged aluminum stand, high-transmission glass optics, and durable brass gears, the CxL is built to withstand daily heavy use, while its extended base improves overall stability and user comfort.
Environmentally conscious users will value the CxL’s lead-free optics and paints, offering an eco-friendly option without compromising optical excellence. Notable features include a Captive Rotation mechanism for effortless head adjustment and dual focusable eyepieces that lock securely to discourage tampering.
Highly customizable, the CxL can be configured with a trinocular head and a full range of accessories such as phase contrast, darkfield, and polarizing kits to meet expanding academic or laboratory requirements. Perfect for high school, college, and light professional environments, the Labomed CxL offers high-end features typically seen in much pricier microscopes and comes backed by a five-year manufacturer’s warranty. This set includes three objective lenses — 4x, 10x, and 40x.
-
Objective
LP series DIN Semi-Plan Achromatic objectives 4x, 10x, and 40x
-
Nosepiece
Quadruple nosepiece turret (Ball bearing type) with rubber grip
-
Viewing Body
45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm
-
Electronics
Universal input 100V-240V AC, 50/60Hz, built-in voltage stabilizer. Dimensions (mm) Labomed CxL Microscope Line Drawing
-
Packaged Contents
- Power Cable (6ft)
- Nylon Dust Cover & Cleaning Cloth
- Styrofoam Casing
-
Stand
Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.
-
Eyepiece
Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating
-
Condenser
Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides
-
Mechanical Stage
Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder
-
Focusing
Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation
-
Illumination
LED illumination with variable illumination control. Up to 100,000 hours of LED life
