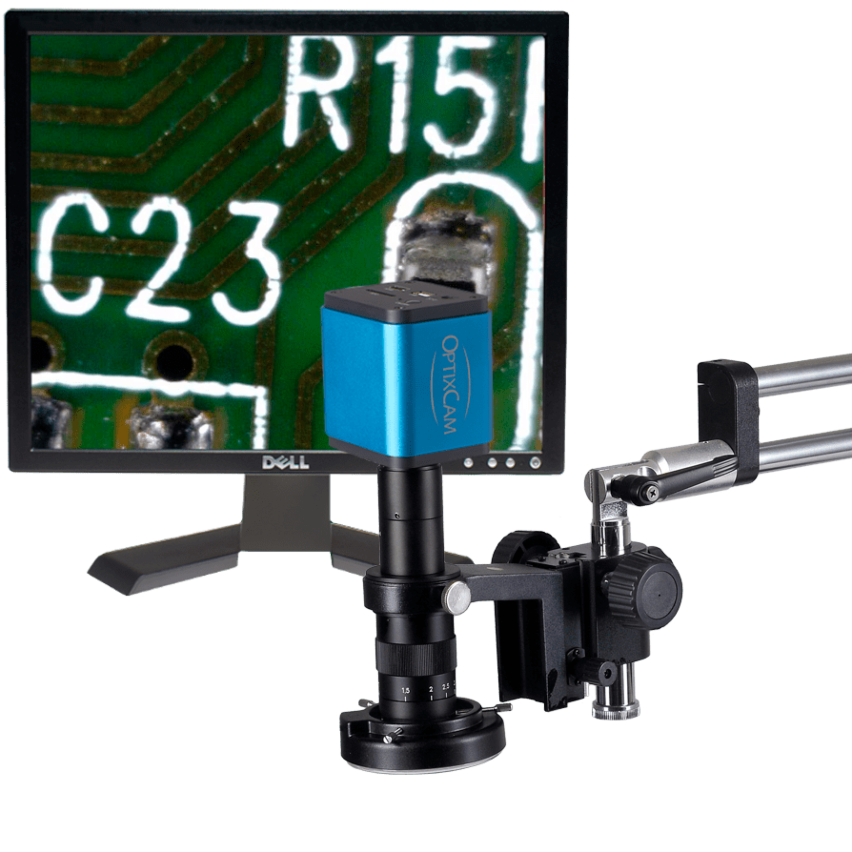

Omano HDMI-1080PU-VIS Boom Stereo Video Inspection System

List Price: $1,740.00

Starting at: $1,211.00

SKU: HDMI-1080PU-VIS

Availability: In stock

  • High definition 1080P HDMI and USB2.0 output
  • Streaming HDMI output direct to monitor or TV at 60 fps
  • HDMI and USB2.0 capture resolution of 2.0MP
  • 7x-45x zoom microscope with clickstops
  • Choice of several boom stand configurations
  • Accessories: 80 LED ring light, 0.5x Barlow lens
  • Monitor not included
Select package options

Click on to learn more about the option * signifies required items

OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera   $659.00
OM10K Zoom Microscope Lens   $219.00
OMHB25 Hanging Bar   $25.00
  • $75.00
  • $75.00
  • $75.00

Included in Bundle

HDMI Camera: OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

Microscope Head: OM10K Zoom Microscope Lens

Hanging Bar: OMHB25 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OCS-HDMI-1080PU-VIS Video Inspection System main
  • OCS-HDMI-1080PU-VIS Video Inspection System 1
  • OCS-HDMI-1080PU-VIS Video Inspection System 2
  • OCS-HDMI-1080PU-VIS Video Inspection System 3
  • Omano V6 Stereo Microscope Boom Stand
  • Omano V7 Articulating Stand
Description

Summary

This industrial microscope inspection system combines the vivid, high-speed response of the new 1080PU series HDMI & USB2.0 digital microscope camera with our brand new Omano VIDZ-650 6X-50X zoom inspection lens and your choice of seven different Omano boom stands.

The new Optixcam OCS-HDMI-1080PU brings simultaneous HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card or USB2.0 output, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output.

Camera Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI-1080PU offers this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations.

Mounting & Controls

The OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red and green cross-hair cursor symbology and Auto Exposure. Note: The SK2-CA037X camera adapter will be needed when mounting the NH1080 camera to any microscope with a smooth bore 23mm optical tube.

Processing & Output

The camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor.

For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a pc or mac operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered cable enables remote capture of still images to an SD card, sold separately.

Microscope Features

The Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope also includes a 0.5x Barlow lens which enables maximum working distance of 6.75".

Microscope Stands

Choose from our most popular single-arm, dual-arm and articulating-arm microscope stands, including the V10, an economical single-arm stand with a 25" reach and a 2.5" fine-extension bar to precisely position the microscope and camera. The V6 offers the same 25" reach along with dual-arm maneuverability. The V7 expands that maneuverability to three dimensions with a spring-powered articulating arm, and the premium V15 brings 28" of fingertip effort and control, thanks to a dual-arm, machined ball bearing design.

Camera Accessories

Accessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". Shipping dimensions: 10 X 6 X 3", 2 LBs.

Microscope Accessories

Accessories include OM10K zoom lens, 80LED Ring illuminator, focus block, V3 stand. Shipping details: 20 x 13 x 10", 12 Lb.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera
    SKU OCS-HDMI-1080PU
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CMOS
    Sensor Size 1/2.5 Inch
    Sensor Details SONY IMX236
    Color/Monochrome Color
    Pixel Pitch 2.8um x 2.8um
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    Resolution 2.0 megapixels
    FPS @ Max Res 60 @ 1920 x 1080
    Camera Interface USB 2.0, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP
    Exposure Control Automatic
    Exposure Time 0.1ms - 999s
    Operating Temperatures 20-60 Deg. C
    Operating Humidity 30-80% RH
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE
    Cable Length 2.5m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) C-Mount

  • OM10K Zoom Microscope Lens
    SKU OM10K
    Head
    Head Type Digital Only
    Magnification Type Zoom
    Ocular Angle Vertical
    Trinocular Standard C-mount
    Trinocular Tube Focusable? Yes
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Ratio 6.4:1
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Head Ring Mount Diameter 50 mm
    Max Working Distance (standard) 55mm
    WD with 0.5x Barlow 90mm
    WD with 2.0x Barlow 30 mm

  • V10 Boom Stand

    V6 Boom Stand

    V15 Boom Stand

    V15U U-Clamp Boom Stand

    V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand
    SKU V10V6V15V15UV7V7U
    Warranty  Lifetime Limited WarrantyLifetime Limited Warranty
    Stand
    Stand Class BoomBoomBoomBoomBoomBoom
    Stand Type Single Arm BoomDual Arm BoomDual Arm BoomDual Arm BoomArticulated BoomArticulated Boom
    Stand Features  Ball-Bearing Glide, Counter-weighted, Large Base PlateBall-Bearing Glide, Counter-weighted, Heavy Duty, Large Base PlateBall-Bearing Glide, Counter-weighted, Tabletop U-ClampArticulatedArticulated
    Base Width 254 mm330 mm254 mm254 mm330 mm330 mm
    Base Depth 254 mm330 mm254 mm254 mm330 mm330 mm
    Post Height 464 mm464 mm464 mm464 mm464 mm464 mm
    Post Diameter 38 mm38 mm38 mm38 mm38 mm38 mm
    View Center to Post Distance 527 mm495 mm514 mm514 mm673 mm673 mm
    Physical Construction Metal TubeSolid MetalSolid MetalSolid MetalSolid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar?  YesYesYesYesYes
    Hanging Bar Style ArticulableArticulableArticulableArticulableArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter  5/8in Pin5/8in Pin

  • OMHB25 Hanging Bar
    SKU OMHB25
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • 64 LED Ring Light, Variable Intensity by Section

    80 LED Ring Light, Variable Intensity

    144 LED Ring Light, Variable Intensity by Section

    3W LED Dual Gooseneck Spot Light

    120 LED Diffused Dome Ring Light - ESD SAFE
    SKU OMLED-64AOMLED-80AOMLED-144AOMLED-SPOTOMLED-6WDRL
    Warranty  1 year 1 year
    Product Weight  1lb 3.1 lbs
    Product Length  16 cm
    Product Width  10 cm
    Product Height  8 cm
    Power Supply  90V-265V
    Product Display
    New  YesYes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLEDLED
    Ring Light Specification 90-265V Auto switching80 LED90-265V Auto switching 90-265V Auto switching
    Ring Light Power  8W
    Ring Light Control VariableVariableVariable Variable

  • 0.3X Barlow Lens For Omano OM10

    1.0X Barlow Lens For Omano OM10

    2.0X Barlow Lens For Omano OM10
    SKU OMBL-10-03X-25OMBL-10-10X-25OMBL-10-20X-25
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes New Type, compact Barlow designNew Type, compact Barlow designNew Type, compact Barlow design
    Backorder ETA Apr 30, 2015 Dec 29, 2015
    Compatible With OM10OM10OM10
    Optical Accessory
    Barlow Lens Power 0.3X1.0X
