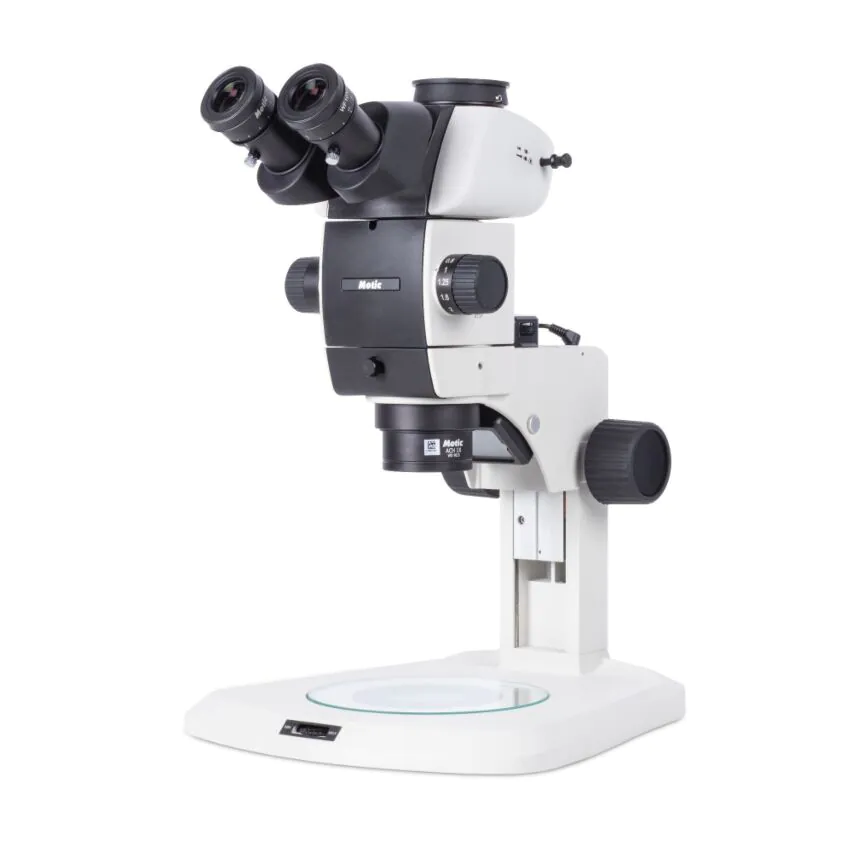

Motic SM7TR-TLED A1X Trinocular Stereo Zoom Microscope
- Versatile Trinocular Design: Features a high-quality trinocular head perfect for industrial inspection, education, and quality control, allowing for easy camera integration.
- Superior Optics: Equipped with a 1X plan achromatic objective that delivers razor-sharp images, natural color reproduction, and a generous 90mm working distance.
- Dual LED Illumination: Includes separately controlled 3W reflected and transmitted LED lights to provide optimal brightness for both transparent and opaque samples.
- Ergonomic Low-Profile Stand: Designed for comfort during extended use with a flat, stable base that minimizes fatigue during long working sessions.
SM7 Series Stereomicroscopes: Elite Optical Performance
Precision Galilean Optics for Advanced Research and Technical Inspection
Power in Every Aspect
The SM7 Series represents the pinnacle of stereomicroscopy, engineered for users who demand true color reproduction, high resolution, and minimal distortion. Built around a Galilean Infinity Optical Design, the SM7 utilizes a Common Main Objective (CMO) system to provide superior modularity and optical clarity compared to traditional Greenough designs.
Whether you are performing intricate sample preparation or detailed technical inspection, the SM7 series delivers a standard magnification range of 8X to 56X with a smooth 7:1 zoom ratio.
Advanced Galilean Optical System
The heart of the SM7 is its Galilean Optics. This parallel optical path system allows for the integration of high-end accessories without compromising image integrity. By minimizing chromatic and spherical aberrations, the SM7 captures the finest details of your specimen.
- Superior Optics: Equipped with a 1X Plan-Achromatic objective for a perfectly flat field of view.
- Extended Working Distance: A generous 90mm working distance provides ample room for tools and manipulation.
- High-Resolution Detail: Specifically designed for technical applications where resolving power is critical.
Ergonomic Stand & Design
Fatigue-free operation is at the core of the SM7 design. The ultra-flat stand bases allow for relaxed positioning of hands and forearms, facilitating lengthy preparation work. The 30° inclined viewing heads ensure a natural posture for users of all heights.
Illumination Options
Choose between the P (Plain) models for external lighting or the TLED models, which feature integrated 3W LED incident and transmitted illumination with independent intensity controls for perfect contrast.
SM7 Series Model Comparison
| Feature | SM7TR-P A1X | SM7TR-TLED A1X | SM7-P A1X | SM7-TLED A1X |
|---|---|---|---|---|
| Head Type | Trinocular (Camera Ready) | Trinocular (Camera Ready) | Binocular | Binocular |
| Light Split | 100:0 / 20:80 | 100:0 / 20:80 | N/A | N/A |
| Illumination | External Needed | Integrated LED (Top/Bottom) | External Needed | Integrated LED (Top/Bottom) |
| Zoom Range | 0.8X ~ 5.6X | 0.8X ~ 5.6X | 0.8X ~ 5.6X | 0.8X ~ 5.6X |
| Field of View | 22mm (High Eyepoint) | 22mm (High Eyepoint) | 22mm (High Eyepoint) | 22mm (High Eyepoint) |
Technical Specifications
- Optical System: Galilean Infinity / Common Main Objective (CMO).
- Inclination: 30 degrees for ergonomic viewing.
- Diopter Adjustment: Dual eyepiece adjustment (+5 / -8 diopter).
- Focus: Coarse focusing system with tension adjustment and 120mm stroke.
- Stand: Fixed-arm stand (310x290mm base) with chemical-resistant finish.
- Interpupillary Distance: Adjustable 55mm - 75mm.
Customize Your SM7 Experience
With a variety of objectives, eyepieces, and camera adapters, we can tailor the SM7 to your specific laboratory or industrial demands.
Need a digital solution? Ask us about compatible 4K and HDMI cameras for your Trinocular SM7.
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
