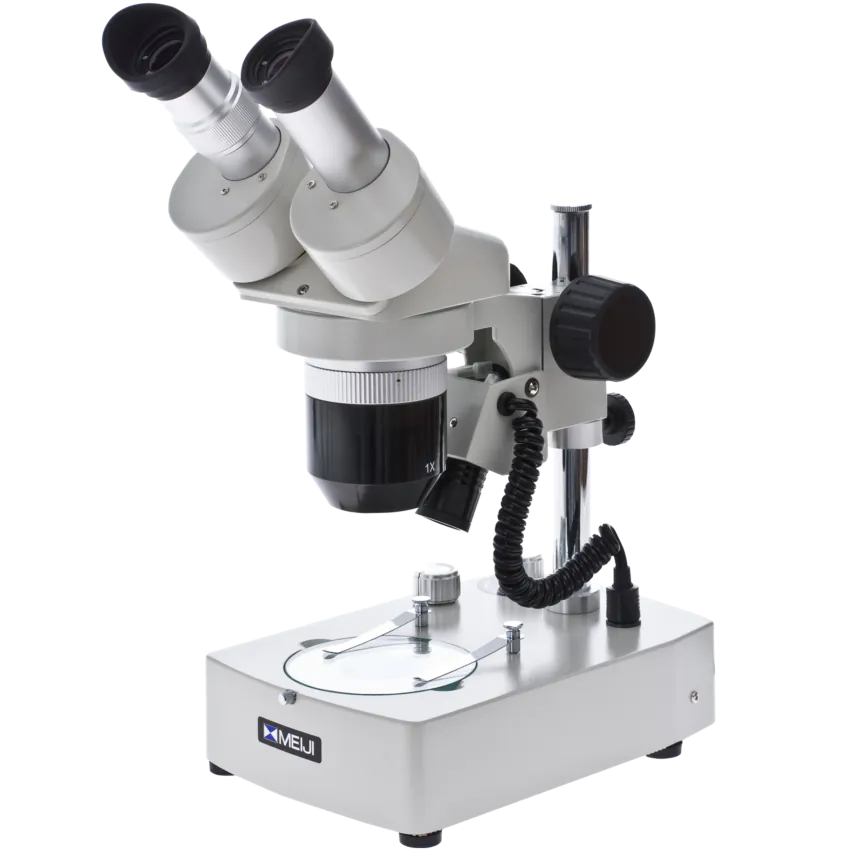

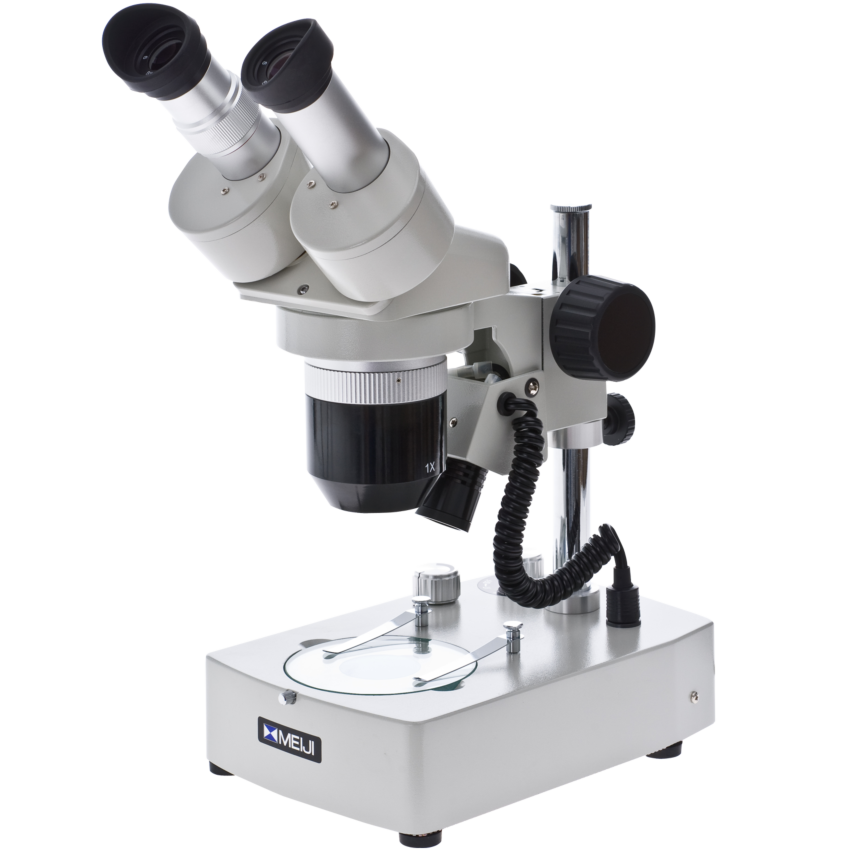

Meiji Techno EMT-2-PBH Stereo Microscope System
List Price: $1,350.00
Starting at: $1,150.00
SKU: EMT2-PBH
Availability: In stock
- 1x/3x dual power microscope
- Choice of eyepieces
- Classic PBH fixed arm stand
- Integrated halogen illumination
- Binocular viewing head
- Lifetime Limited Warranty
Price as configured: $0.00
You May Also Like:
-
EMZ-8TR-PBH 7X-45X Zoom Stereo Microscope System
List Price: $2,625.00
As low as: $2,210.00
-
EMZ5-PBH Stereo Microscope System
List Price: $2,175.00
As low as: $1,860.00
- Description
-
Summary
The EMT-2-PBH is Meiji's EMT-2 dual-power 1x/3x stereo microscope body combined with the classic PBH stand including dual halogen illumination. Lifetime Limited Warranty.Microscope Head
The microscope body has 1x and 3x objectives, rotates 360º for convenient viewing options, and has a maximum working distance of 81 mm without an auxiliary Barlow lens. Depending on your choice of eyepieces (5x, 10x, 12.5x, 15x, 20x, or 30x), you can achieve magnification settings ranging from 10x to 90x, without the corresponding cost of a zoom microscope.
The EMT2-P’s left eyetube has dioptric adjustment for convenient focusing of both eyes, and the eyepieces have an interpupillary adjustment range of 54-75 mm to adjust comfortably to the distance between your eyes. Binocular only.Stand
The PBH is an Illuminated pole stand with "F" focusing holder. It provides both transmitted and incident 6V 10W halogen illumination with variable intensity control. Supplied with 94.5mm diameter clear glass stage plate, reversible black and white stage plate and two stage clips. Illuminators may be operated independently or simultaneously.
Dimensions: Total Height: 280mm (11.02"). Pillar Height: 212mm (8.35"). Base Dimensions: 160mm (6.30") wide by 240mm (9.44") deep. - Specifications
-
Specifications of Component Options
Select a component below to view related specifications.-
EMT-2 1x/3x Dual-Power Stereo Microscope BodyGeneral Brand Meiji Techno SKU EMT2 Head Head Type Binocular Optical Design Greenough Converged Magnification Type Dual Power Ocular Angle 45° Ocular Tube Diameter 30.5 mm Diopter Adjustment Single Interpupillary Adjustment Arc (Seidentopf) Interpupillary Adjustment Range 54mm - 75mm Head Rotation 360 Degrees Minimum Objective (X) 1 Maximum Objective (X) 3 Parfocal Yes Body Body Material All-Metal Head Ring Mount Diameter 84 mm Max Working Distance (standard) 81 mm -
PBH Pole StandGeneral Brand Meiji Techno SKU PBH Feed - Title Meiji Techno PBH Pole Stand Feed - Description The Meiji EMZ-8TR-PBH is a combination of Meiji's best-selling trinocular zoom stereo microscope body and the PBH stand with integrated Halogen transmitted and incident illumination. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.Microscope Head The EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 Feed - Custom Label 1 500-1000 Stand Stand Class Pedestal Stand Type Pole Stage Plate Black/White Contrast Plate Post Diameter 20 mm If FB Mounts Direct Focus Block Mount Diameter 20 mm If FB Integrated Focus Controls Coarse Focus Mechanism Rack & Pinion Compatibility Head Ring Mount Diameter 84 mm -
MA501 - 5X Super Widefield Paired Eyepieces
MA718 - 7.5X Super Widefield Paired Eyepieces
MA502 - 10X Super Widefield Paired Eyepieces
MA503 - 15X Super Widefield Paired Eyepieces
MA504 - 20X Super Widefield Paired Eyepieces
MA521 - 30X Super Widefield Paired Eyepieces
MA519 - 10x Focusing Eyepiece (single)General Brand Meiji Techno Meiji Techno Meiji Techno Meiji Techno Meiji Techno Meiji Techno Meiji Techno SKU MA501 MA718 MA502 MA503 MA504 MA521 MA519 Warranty Meiji Limited Lifetime Warranty Meiji Limited Lifetime Warranty Meiji Limited Lifetime Warranty Meiji Limited Lifetime Warranty Meiji Limited Lifetime Warranty Meiji Limited Lifetime Warranty Meiji Limited Lifetime Warranty Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY 30.5mm OD, Fits MEIJI EM SERIES ONLY 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY 30.5mm OD, Fits MEIJI EM SERIES ONLY 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY Feed - Title Meiji Techno MA501 - 5X Super Widefield Paired Eyepieces Meiji Techno MA718 - 7.5X Super Widefield Paired Eyepieces Meiji Techno MA502 - 10X Super Widefield Paired Eyepieces Meiji Techno MA503 - 15X Super Widefield Paired Eyepieces Meiji Techno MA504 - 20X Super Widefield Paired Eyepieces Meiji Techno MA521 - 30X Super Widefield Paired Eyepieces Meiji Techno MA519 - 10x Focusing Eyepiece (single) Feed - Description The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 Feed - Custom Label 1 100-500 100-500 100-500 100-500 100-500 100-500 100-500 Compatible With EM* EM* EM* EM* EM* EM* EM* Eyepiece Magnification 5x 7.5x 10x 15x 20x 30x 10x -
MA600 Stereo Eyeshields (Pair)General Brand Meiji Techno SKU MA600 Feed - Title Meiji Techno MA600 Stereo Eyeshields (Pair) Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 Feed - Custom Label 1 <100
-
- Product Manuals
-
- Meiji EMF/EMT/EMX Series Stereo Microscope Manual: Download PDF [817k]
