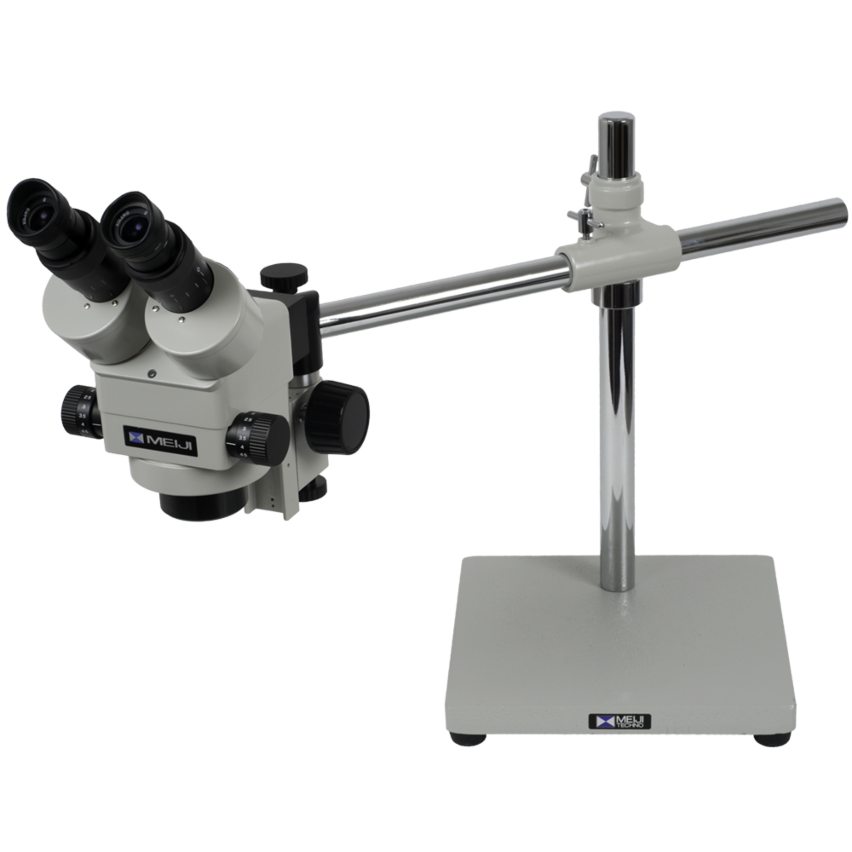

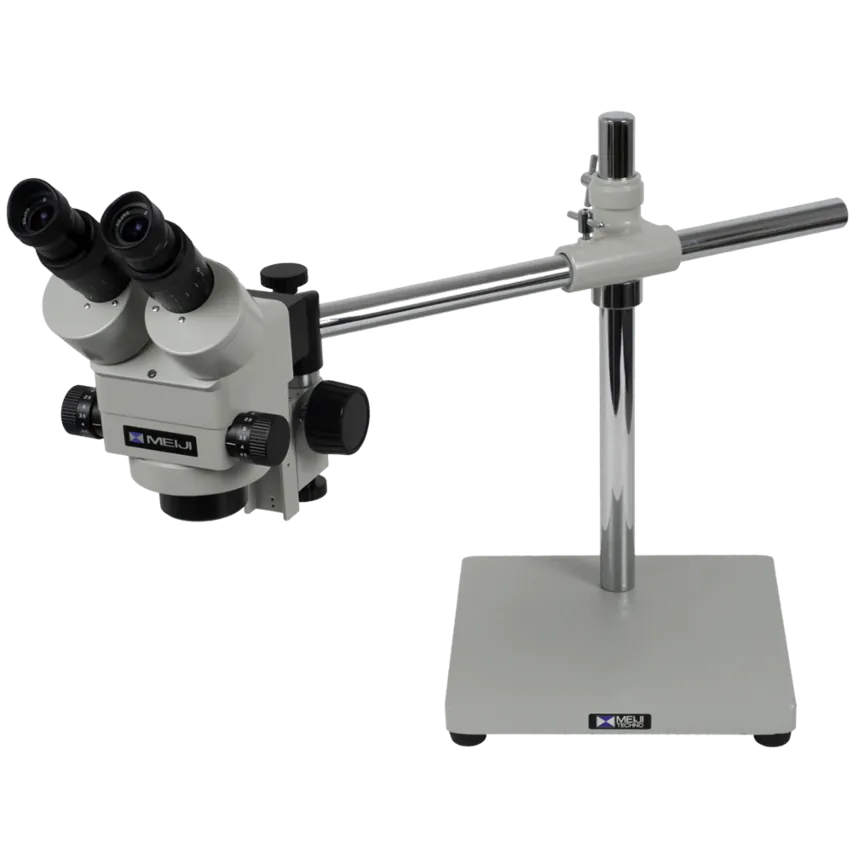

Meiji Techno EMZ5-S4100 7x-45x Boom Stereo Microscope

List Price: $2,532.00

Starting at: $2,249.00

SKU: EMZ5-S4100

Availability: In stock

  • 0.7x-4.5x zoom magnification
  • Choice of eyepieces
  • S4100 single arm boom stand
  • Optional ring light illuminators
  • Binocular or trinocular formats
  • Optional barlow lenses
  • Limited Lifetime Warranty
Select package options

Click on to learn more about the option * signifies required items

F Focus Block   $250.00
  • $10.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
S-4100 Boom Stand   $610.00

Included in Bundle

Focus Block: F Focus Block

Stand: S-4100 Boom Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ5-S4100 7x-45x Boom Stereo Microscope
  • Meiji EMZ5 Stereo Microscope Head
  • Meiji EMZ5 Stereo Trinocular Microscope Head
  • Meiji EMZ5-S4100 7x-45x Boom Stereo Microscope Stand
  • Meiji EMZ5-S4100 7x-45x Boom Stereo Microscope Transition Block
Description

Summary

The Meiji EMZ5-S4100 is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the S-4100 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The S-4100 boom stand is solidly built and measures 265mm x 265mm x 25mm. It has a 530mm (20.8") long horizontal arm and a pole that is 510mm high (15.7"). For those who require greater working distance, the S-4200 is identical in every respect except that the vertical pole is 600m tall (24"). The solid metal base is 10.4 x 10.4 inches for exceptional stability and fully adjustable set screws provide unlimited mounting positions.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-5 Binocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ-5D Binocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents
    SKU EMZ5EMZ5DEMZ5TRD
    Magnification Chart Meiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification Chart
    Head
    Head Type BinocularBinocularBinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoom
    Ocular Angle 45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm
    Diopter Adjustment DualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm
    Head Rotation 360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.7
    Maximum Objective (X) 4.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsDetent Click-Stops
    Zoom Indicator Graduations YesYesYes
    Parfocal YesYesYes
    Body
    Body Material All-MetalAll-MetalAll-Metal
    Head Ring Mount Diameter 84 mm84 mm84 mm
    Max Working Distance (standard) 93mm93mm93mm

  • F Focus Block
    SKU F
    Focus Block
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Focus Block Mount Diameter 20 mm
    Head Ring Mount Diameter 84 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Light Specs
    Illumination Type LEDLEDLED
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • MA530 Barlow Lens 0.3X WD 252mm

    MA525 Barlow Lens 0.44X WD 181mm

    MA517 Barlow Lens 0.5X WD 150mm

    MA526 Barlow Lens 0.75X WD 97mm

    MA507 Barlow Lens 1.5X WD 49mm

    MA511 Barlow Lens 2X WD 34mm
    SKU MA530MA525MA517MA526MA507MA511
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*
    Optical Accessory
    Barlow Lens Power 0.3X0.5X0.5X0.75X1.5X2.0X

  • S-4100 Boom Stand
    SKU S4100
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Post Diameter 29 mm
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Fixed
    Compatibility
    Focus Block Mount Diameter 20 mm
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
