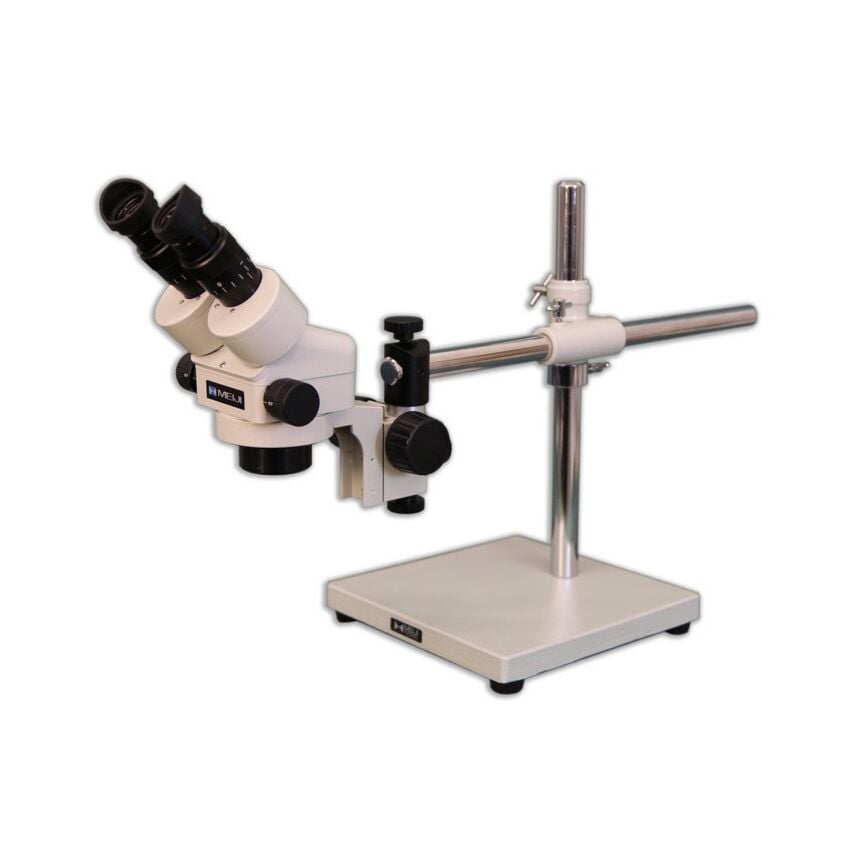

The Meiji EMZ5-S4200 is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the S-4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The S-4200 boom stand is solidly built and measures 265mm x 265mm x 25mm. It has a 530mm (20.8") long horizontal arm and a pole that is 600mm high (24"). The solid metal base is 10.4 x 10.4 inches for exceptional stability and fully adjustable set screws provide unlimited mounting positions.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

Microscope
Focus Block
Eyepieces
Eyeguards
Illumination
Barlow Lens
Stand

	EMZ-5 Binocular 7.5X-45X Zoom Stereo Microscope Head	EMZ-5D Binocular 7.5X-45X Zoom Stereo Microscope Head with Detents	EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents
SKU	EMZ5	EMZ5D	EMZ5TRD
Magnification Chart	Meiji EMZ5 Magnification Chart	Meiji EMZ5 Magnification Chart	Meiji EMZ5 Magnification Chart
Head
Head Type	Binocular	Binocular	Binocular
Optical Design	Greenough Converged	Greenough Converged	Greenough Converged
Magnification Type	Zoom	Zoom	Zoom
Ocular Angle	45°	45°	45°
Ocular Tube Diameter	30.5 mm	30.5 mm	30.5 mm
Barlow Mount Diameter	50 mm	50 mm	50 mm
Diopter Adjustment	Dual	Dual	Dual
Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)
Interpupillary Adjustment Range	54mm - 75mm	54mm - 75mm	54mm - 75mm
Head Rotation	360 Degrees	360 Degrees	360 Degrees
Minimum Objective (X)	0.7	0.7	0.7
Maximum Objective (X)	4.5	4.5	4.5
Zoom Control Type	Smooth Continuous	Detent Click-Stops	Detent Click-Stops
Zoom Indicator Graduations	Yes	Yes	Yes
Parfocal	Yes	Yes	Yes
Body
Body Material	All-Metal	All-Metal	All-Metal
Head Ring Mount Diameter	84 mm	84 mm	84 mm
Max Working Distance (standard)	93mm	93mm	93mm

F Focus Block

SKU F
Focus Block
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Compatibility
Focus Block Mount Diameter 20 mm
Head Ring Mount Diameter 84 mm

	MA501 - 5X Super Widefield Paired Eyepieces	MA718 - 7.5X Super Widefield Paired Eyepieces	MA502 - 10X Super Widefield Paired Eyepieces	MA520 - 12.5x Super Widefield Paired Eyepieces	MA503 - 15X Super Widefield Paired Eyepieces	MA504 - 20X Super Widefield Paired Eyepieces	MA521 - 30X Super Widefield Paired Eyepieces	MA519 - 10x Focusing Eyepiece (single)
SKU	MA501	MA718	MA502	MA520	MA503	MA504	MA521	MA519
Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty
Notes	30.5mm OD, Fits MEIJI EM SERIES ONLY	30.5mm OD, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
Compatible With	EM*	EM*	EM*	EM*	EM*	EM*	EM*	EM*
Eyepiece Magnification	5x	7.5x	10x	12.5x	15x	20x	30x	10x

MA600 Stereo Eyeshields (Pair)

SKU MA600

	80 LED Ring Light, Variable Intensity	64 LED Ring Light, Variable Intensity by Section	144 LED Ring Light, Variable Intensity by Section
SKU	OMLED-80A	OMLED-64A	OMLED-144A
Warranty	1 year
Product Weight	1lb
Light Specs
Illumination Type	LED	LED	LED
Ring Light Type	LED	LED	LED
Ring Light Specification	80 LED	90-265V Auto switching	90-265V Auto switching
Ring Light Power	8W
Ring Light Control	Variable	Variable	Variable

	MA530 Barlow Lens 0.3X WD 252mm	MA525 Barlow Lens 0.44X WD 181mm	MA517 Barlow Lens 0.5X WD 150mm	MA526 Barlow Lens 0.75X WD 97mm	MA507 Barlow Lens 1.5X WD 49mm	MA511 Barlow Lens 2X WD 34mm
SKU	MA530	MA525	MA517	MA526	MA507	MA511
Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty
Notes	Thread M50, Pitch 0.75mm	Thread M50, Pitch 0.75mm	Thread M50, Pitch 0.75mm	Thread M50, Pitch 0.75mm	Thread M50, Pitch 0.75mm	Thread M50, Pitch 0.75mm
Compatibility
Compatible With	EMZ-1, EMZ-2, EMZ-5, EMZ-6, EMZ-9, EMZ-13*	EMZ-1, EMZ-2, EMZ-5, EMZ-6, EMZ-9, EMZ-13*	EMZ-1, EMZ-2, EMZ-5, EMZ-6, EMZ-9, EMZ-13*	EMZ-1, EMZ-2, EMZ-5, EMZ-6, EMZ-9, EMZ-13*	EMZ-1, EMZ-2, EMZ-5, EMZ-6, EMZ-9, EMZ-13*	EMZ-1, EMZ-2, EMZ-5, EMZ-6, EMZ-9, EMZ-13*
Optical Accessory
Barlow Lens Power	0.3X	0.5X	0.5X	0.75X	1.5X	2.0X

	S-4200 Boom Stand
SKU	S4200
Stand
Stand Class	Boom
Stand Type	Single Arm Boom
Stand Features	Extended Height
Post Diameter	29 mm
Coating Type (Stand)	Durable Powdercoat
Hanging Bar Style	Fixed
Compatibility
Focus Block Mount Diameter	20 mm

Magnification Chart

Eyepiece	Standard Configuration Meiji EMZ 5		Auxiliary Barlow Lens
	Standard Configuration Meiji EMZ 5		0.3X		0.5X		0.75X		1.5X
	Working distance 93mm		Working distance 251mm		Working distance 148mm		Working distance 97mm		Working distance 49mm
	Magnification	Field of view mm	Magnification	Field of view mm	Magnification	Field of view mm	Magnification	Field of view mm	Magnification	FIeld of view mm
10X	7X-45X	32.8 ~ 5.1	2.1X-13.5X	109 ~ 17	3.5X-22.5X	65.7-9.8	5.2X-33.7X	43.8 ~ 6.8	10.5X-67.5X	21.9 ~ 3.4
15X	10.5X-67.5X	22 ~ 3.4	3.1X-20.2X	73 ~ 11.4	4.4X-28X	44 ~ 6.8	7.9X-50.6X	29.3 ~ 4.5	13.1X-84.4X	14.6 ~ 2.2
20X	14X-90X	16.4 ~ 2.5	4.2X-27X	54.7 ~ 8.5	5.2X-33.4X	32.8 ~ 5.1	10.5X-67.5X	21.9 ~ 3.4	15.7X-101.2X	10.9 ~ 1.7
30X	21X-135X	11 ~ 1.7	36.6X-5.7X	36.6 ~ 5.7	10.5X-67.5X	22 ~ 3.4	15.8X-101.2X	14.6 ~ 2.2	31.5X-202.5X	7.3 ~ 1.1

	F Focus Block
SKU	F
Focus Block
Focus Controls	Coarse
Focus Mechanism	Rack & Pinion
Compatibility
Focus Block Mount Diameter	20 mm
Head Ring Mount Diameter	84 mm

	MA600 Stereo Eyeshields (Pair)
SKU	MA600
