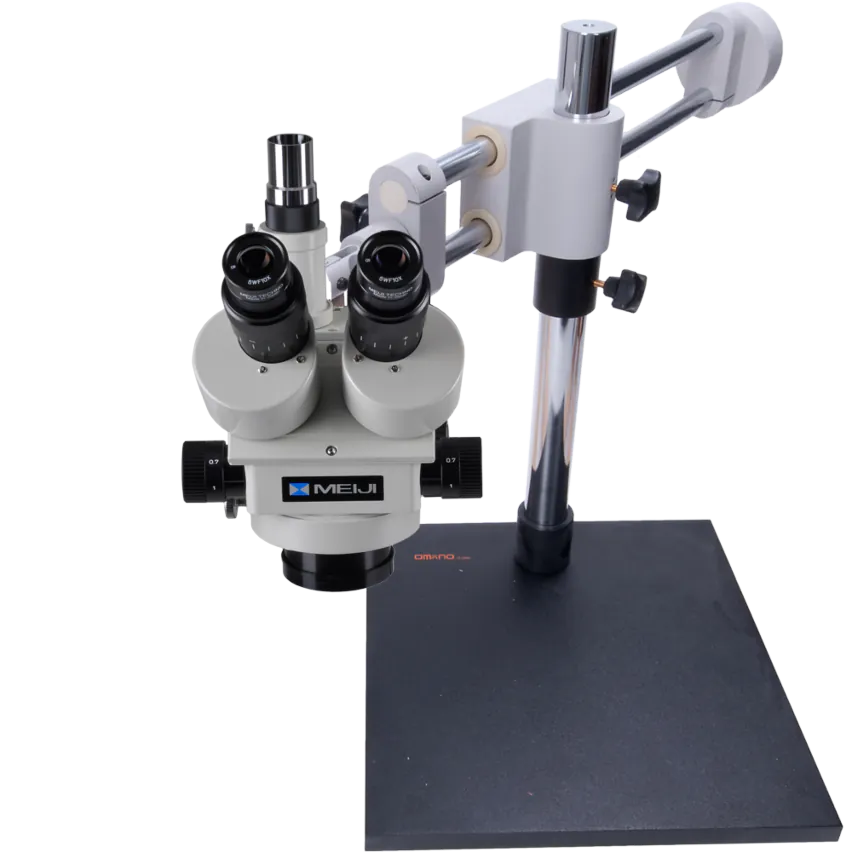

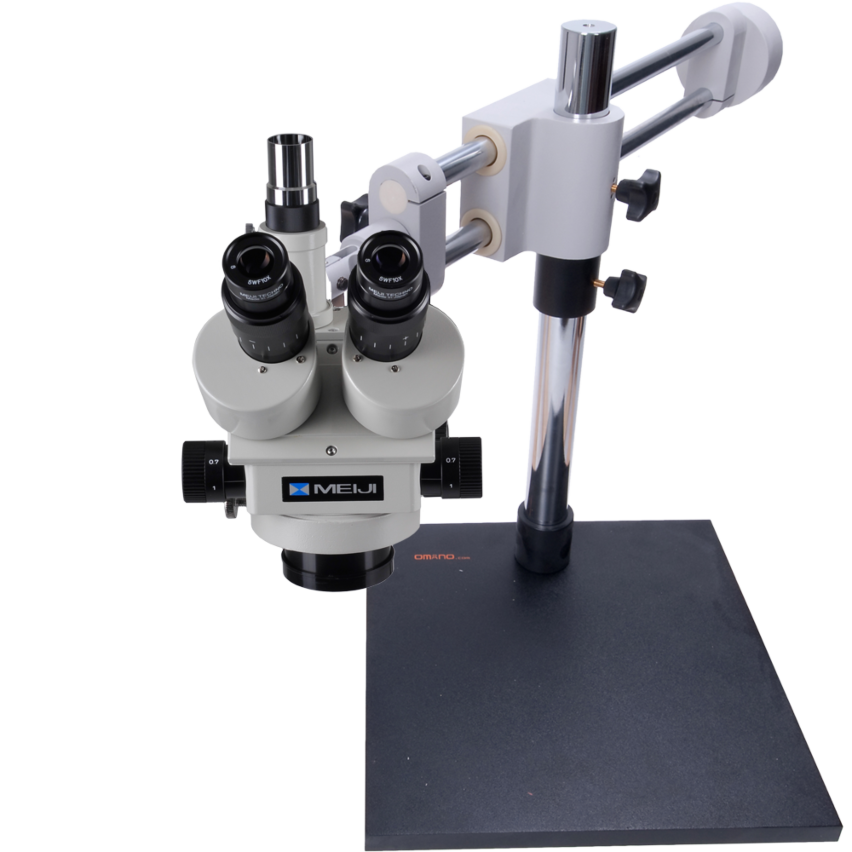

Meiji Techno EMZ5-V6 7x-45x Boom Stereo Microscope

List Price: $2,225.00

Starting at: $1,644.00

SKU: EMZ5-V6

Availability: In stock

  • 0.7x-4.5x zoom magnification
  • Choice of eyepieces
  • Heavy-duty V6 dual-arm boom stand
  • Included ring light illuminators
  • Binocular or trinocular formats
  • Optional Barlow lenses
  • Limited Lifetime Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OMFB23 Focus Block, 84mm Ring   $60.00
OMHB25 Hanging Bar   $25.00
  • $10.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
V6 Boom Stand   $249.00

Included in Bundle

Focus Block: OMFB23 Focus Block, 84mm Ring

Hanging Bar: OMHB25 Hanging Bar

Stand: V6 Boom Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • EMZ5-V6 7x-45x Boom Stereo Microscope
  • Meiji EMZ5 Stereo Microscope Head
  • Meiji EMZ5 Stereo Trinocular Microscope Head
  • Omano V6 dual-Arm Boom Stand
Description

Summary

The Meiji EMZ5-V6 is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the popular Omano V6 dual-arm boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click-stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

Weighing in at over 60lbs, the V6 is extremely stable. It has almost 24" of clearance to the base and can view objects over 18" tall. Dual arm construction adds to its strength while a counterweight adds balance. A hanging bar offers versatile viewing positions, a safety collar locks the boom in place on the pole, and a rubber backstop protects the cross bar.

In addition, a neat spring-loaded hanging bar bracket lever can be re-positioned without losing tension on the microscope head. They all add up to a product that feels right and works very well.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.



Summary

The OM99-V15 pairs our best Omano OM99 microscope head with the premier V15 dual-arm, boom stand for the ultimate in optics and stability. The zoom magnification range is 6.5x-45x with Super WF10x eyepieces and eyecups. A 12W fluorescent light ring is also included. Lifetime Limited Warranty.

Optics

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included.

Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x. Available in binocular or trinocular format which includes a 23mm smooth camera port. Both versions are optionally available with click-stop detents for precise zoom observations.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. A 12W fluorescence ring light for shadow free illumination is included in the price and can be upgraded to LED or other light when adding the microscope to your shopping cart.

Stand

Solid steel, 21.5" tall, a horizontal span of 28" and 48 lbs - yet surprisingly graceful in its movements, the V15 is our premium Omano dual-arm boom stand. Customers love it! A ball-bearing slide enables fingertip positioning control while a raft of thoughtful features help earn its well-deserved reputation. A hanging bar offers versatile viewing positions, a safety collar locks the boom in place on the pole, and a rubber backstop protects the cross bar.

In addition, a neat spring-loaded hanging bar bracket lever can be re-positioned without losing tension on the microscope head. They all add up to a product that feels right and works very well.

Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.

Other: A 76mm focus block is also included and a 12W fluorescent ring light for shadow-free illumination.

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-5 Binocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ-5D Binocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5TR Trinocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5H Binocular 7.5X-45X Zoom Stereo Microscope with Extended FOV (Req. MA522)
    SKU EMZ5EMZ5DEMZ5TREMZ5TRDEMZ5H
    Magnification Chart Meiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification Chart
    Head
    Head Type BinocularBinocularTrinocularBinocularBinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm50 mm50 mm
    Diopter Adjustment DualDualDualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm
    Trinocular Type  Prism Switching
    Trinocular Standard  23mm DIN
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.70.70.7
    Maximum Objective (X) 4.54.54.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsSmooth ContinuousDetent Click-StopsSmooth Continuous
    Zoom Indicator Graduations YesYesYesYesYes
    Parfocal YesYesYesYesYes
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters)  23mm , C-Mount
    Available Imaging Mounts  0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm84 mm84 mm84 mm
    Max Working Distance (standard) 93mm93mm93mm93mm93mm

  • OMFB23 Focus Block, 84mm Ring
    SKU OMFB23
    Focus Block
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Focus Block Mount Diameter 25 mm
    Head Ring Mount Diameter 84 mm

  • OMHB25 Hanging Bar
    SKU OMHB25
    Hanging Bar
    Hanging Bar Style Articulable
    Compatibility
    Focus Block Mount Diameter 25 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-64AOMLED-144A
    Light Specs
    Illumination Type LEDLED
    Ring Light Type LEDLED
    Ring Light Specification 90-265V Auto switching90-265V Auto switching
    Ring Light Control VariableVariable

  • MA530 Barlow Lens 0.3X WD 252mm

    MA525 Barlow Lens 0.44X WD 181mm

    MA517 Barlow Lens 0.5X WD 150mm

    MA526 Barlow Lens 0.75X WD 97mm

    MA507 Barlow Lens 1.5X WD 49mm

    MA511 Barlow Lens 2X WD 34mm
    SKU MA530MA525MA517MA526MA507MA511
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*
    Optical Accessory
    Barlow Lens Power 0.3X0.5X0.5X0.75X1.5X2.0X

  • V6 Boom Stand
    SKU V6
    Stand
    Stand Class Boom
    Stand Type Dual Arm Boom
    Stand Features Ball-Bearing Glide, Counter-weighted, Large Base Plate
    Base Width 330 mm
    Base Depth 330 mm
    Post Height 464 mm
    Post Diameter 38 mm
    View Center to Post Distance 495 mm
    Physical Construction Solid Metal
    Coating Type (Stand) Durable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? Yes
    Hanging Bar
    Hanging Bar Style Articulable
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
