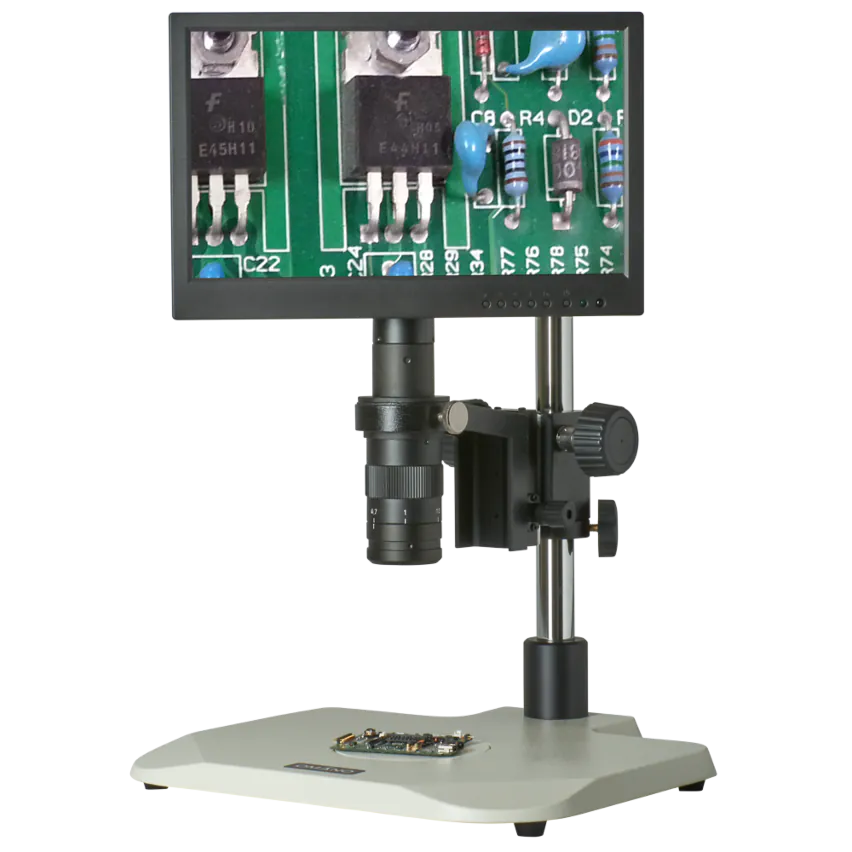

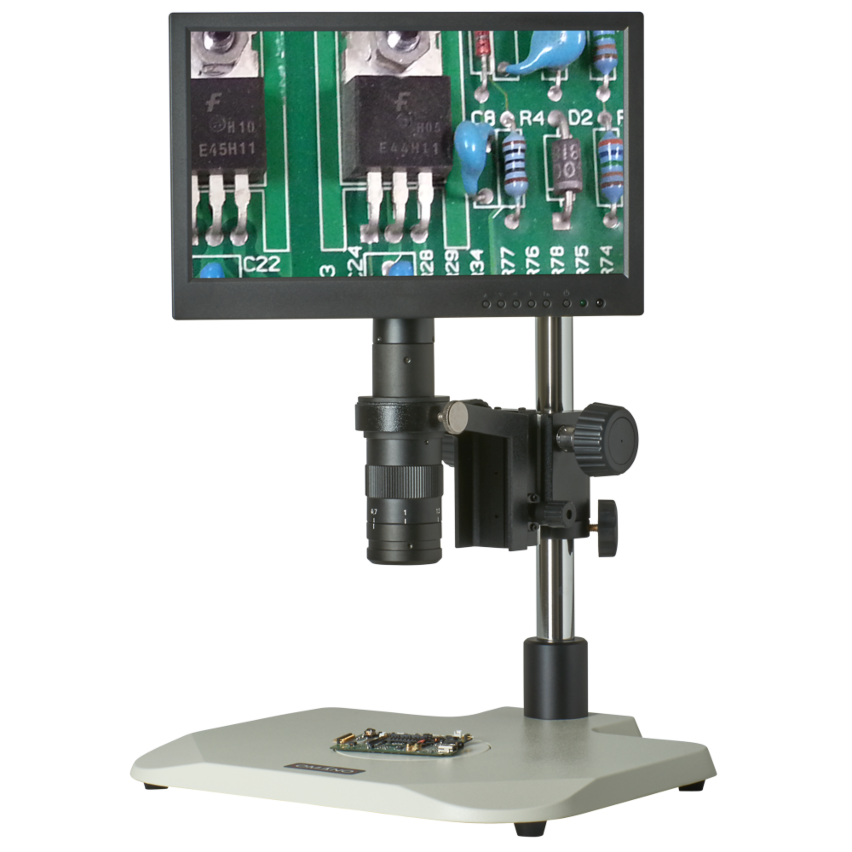

Omano CX3-OM10K-V3 7X-45X Zoom Microscope Inspection System

List Price: $1,961.00

Starting at: $1,227.00

SKU: CX3-OM10K-V3

Availability: In stock

  • UPGRADED Larger 11.6-inch TFT-LCD color display
  • High resolution 1080p LVDS & SD card output
  • Monitor Resolution 2.0MP (1920 X 1080)
  • Fast Frame Rate of 60 FPS @ 1280 x 800 resolution
  • Remote and on screen controls
  • 7x-45x zoom monocular microscope lens
  • Generous 4-inch working distance
  • 80 LED shadow-free ring light
  • Solid V3 pole stand with beveled corners
Select package options

Click on to learn more about the option * signifies required items

OM10K Zoom Microscope Lens   $219.00
CX-3 1080p LVDS Microscope Camera with 11.6" Display   $799.00
V3 Pole Stand   $130.00
  • $75.00
  • $75.00
  • $75.00

Included in Bundle

Microscope: OM10K Zoom Microscope Lens

LVDS Camera: CX-3 1080p LVDS Microscope Camera with 11.6" Display

Stand: V3 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • CX3-OM10K-V3 Digital Inspection Microscope
  • CX3-OM10K-V3 Digital Inspection Microscope 2
  • CX3-OM10K-V3 Digital Inspection Microscope 4
  • CX3-OM10K-V3 Digital Inspection Microscope 3
  • CX3-OM10K-V3 Digital Inspection Microscope 5
Description

Summary

This industrial microscope inspection system combines the vivid resolution of the OptixCam CX-3 1080p LVDS microscope camera with the Omano OM10K 7x-45x zoom microscope and V3 pole stand. It is a combination we like due to the clarity of the new 1080p HDMI camera and the expansive size of the CX-3 TFT-LCD monitor. At 11.6" it is a genuinely useful size while the camera can also output to a larger LVDS-enabled screen or monitor.

Camera

An upgrade to the old CX-2 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and user interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter.

Features

The CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.

LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.

Camera Accessories

AC Power adapter, Remote Control Keypad, Remote Image Capture Controller.

Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.

Microscope

Used for digital inspection applications, the Omano OM10K monocular zoom lens includes a 0.7-4.5x stereo zoom microscope lens complete with focus block and 0.5x Barlow for extended working distance. Without the Barlow lens, the camera and microscope combination yields 7x-45x magnification and half that level with the barlow lens. This configuration also includes an 80 LED ring light with optional upgrades.

Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM10K Zoom Microscope Lens
    SKU OM10K
    Head
    Head Type Digital Only
    Magnification Type Zoom
    Ocular Angle Vertical
    Trinocular Standard C-mount
    Trinocular Tube Focusable? Yes
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Ratio 6.4:1
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Head Ring Mount Diameter 50 mm
    Max Working Distance (standard) 55mm
    WD with 0.5x Barlow 90mm
    WD with 2.0x Barlow 30 mm

  • CX-3 1080p LVDS Microscope Camera with 11.6" Display
    SKU OCS-CX3-HDMI-116
    Warranty 1 Year
    Product Weight 2.7
    Product Length 10
    Product Width 7
    Product Height 4
    Product Display
    New Yes
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Sensor Details CMOS
    Color/Monochrome Color
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    FPS @ Max Res 60fps @ 1280 X 800
    Camera Interface LCD Display, SD Card, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP, JPEG, PNG, TIFF
    Exposure Control Automatic, Manual
    Supported Operating Systems N/A
    System Requirements N/A
    Certifications CE
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount

  • V3 Pole Stand
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light

    3W LED Dual Gooseneck Spot Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP6WOMLED-SPOT
    Warranty 1 year  1 year1 year
    Product Weight 1lb  4.0 lbs3.1 lbs
    Product Length  31.0 cm16 cm
    Product Width  29.0 cm10 cm
    Product Height  17.5 cm8 cm
    Power Supply  90V-265V
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching3W x 2
    Ring Light Power 8W  6W
    Ring Light Control VariableVariableVariableVariable

  • 0.3X Barlow Lens For Omano OM10

    1.0X Barlow Lens For Omano OM10

    2.0X Barlow Lens For Omano OM10
    SKU OMBL-10-03X-25OMBL-10-10X-25OMBL-10-20X-25
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes New Type, compact Barlow designNew Type, compact Barlow designNew Type, compact Barlow design
    Backorder ETA Apr 30, 2015 Dec 29, 2015
    Compatible With OM10OM10OM10
    Optical Accessory
    Barlow Lens Power 0.3X1.0X
