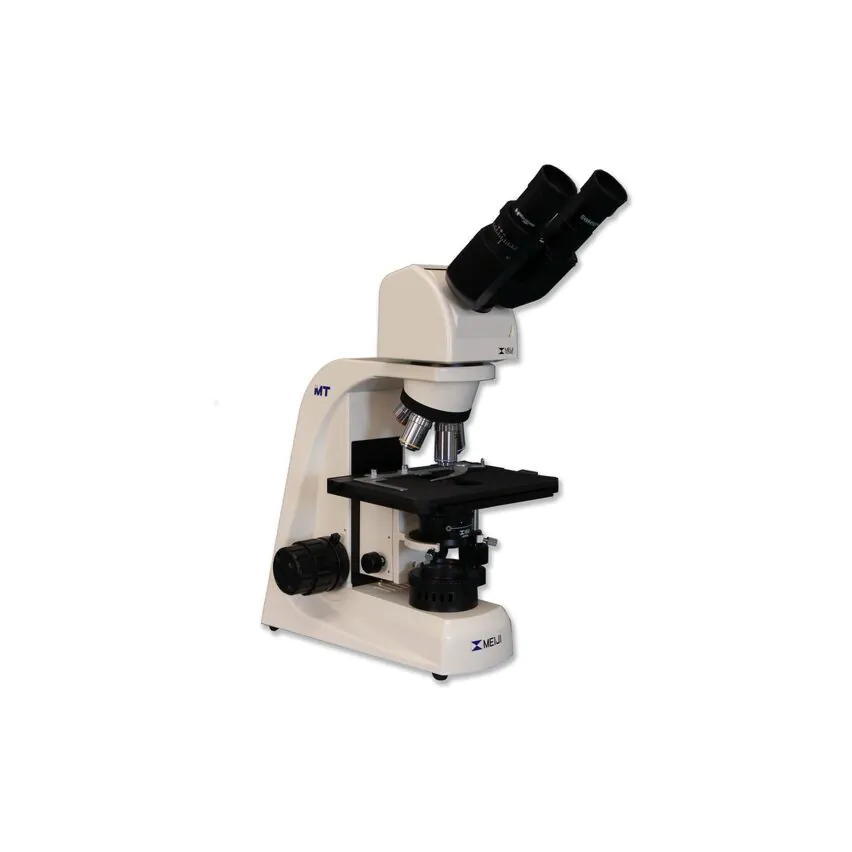

Meiji Techno MT5200EHV Veterinary Halogen Ergonomic Binocular Brightfield Biological Microscope
SKU:
MT5200EHV
In stock
You pay: $4,050.00
Free Shipping,
30 Day Money Back Guarantee
- Ergonomic Tilting Head: Features a proprietary binocular head adjustable from 10° to 50° to accommodate researchers of various heights, ensuring maximum comfort during extended use.
- Superior ICOS™ Optics: Equipped with newly engineered U.Plan Infinity Corrected objectives that deliver exceptionally bright, high-resolution images with flat fields of view and accurate color rendition.
- Rugged and Stable Design: Built with a chemical-resistant, cast aluminum alloy frame and low-positioned coaxial focus controls for a durable, vibration-free laboratory workstation.
- Versatile & Modular: Supports multiple contrast methods including Brightfield and Phase Contrast, with seamless integration for CMOS/CCD HDMI cameras and Digital SLR cameras.
- Enhanced Specimen Protection: Includes built-in tension adjustment and a stage stop lever to prevent accidental damage to slides and objectives.
MT5200EH Ergonomic Binocular Biological Microscope
The MT5200EH Series is one of Meiji Techno’s most rugged, fully equipped biological microscope systems. Manufactured 100% in Japan, it features a proprietary Ergonomic Tilting Binocular head (adjustable from 10° to 50°) to accommodate researchers of various heights, ensuring a relaxed posture during extended observation.
Built on a rigid cast aluminum frame with a chemical-resistant finish, this series utilizes the ICOS™ (Infinity Corrected Optical System) and newly engineered U. Plan optics to deliver exceptionally bright, high-resolution images with superior flat fields of view.
Technical Specifications
| Optical System | ICOS™ Infinity Corrected Optical System (F=200mm) |
| Head | Ergonomic Tilting Binocular (10° to 50°), Siedentopf type; I.P. adjustment 53mm–75mm |
| Eyepieces | SWH10X High Eyepoint, Field No. 22 (Anti-fungus coating) |
| Objectives | U. Plan 4X, 10X, 40X, and 100X (Oil) |
| Stage | Ceramic coated flat-top stage (170mm x 140mm) with attachable finger assembly |
| Condenser | Abbe Condenser, N.A. 1.25 with iris diaphragm and dove-tail mount |
| Illumination | 30W Halogen Koehler; Auto-voltage sensing |
| Focusing | Coaxial coarse/fine controls; 2-micron graduation; Stage stop and tension control |
What's Included
- Microscope Body: MT5200EH Mainframe with Quintuple Nosepiece
- Eyepieces: Two MA817 SWH10X Eyepieces with MA906 Rubber Eyeshields
- Objectives: U. Plan 4X, 10X, 40X, and 100X Oil Immersion
- Filters: MA856/05 Blue Clear Filter (44mm)
- Accessories: Dust Cover (MA701), Spare 30W Halogen Bulb, Spare Fuse, and Power Cord
- Documentation: Instruction Manual and Limited Lifetime Warranty Card
Physical & Shipping Data
- Weight: 34 lbs (Shipping) / 31 lbs (Unit weight for Ergonomic Binocular)
- Footprint: 263mm (D) x 176mm (W)
- Manufacturing: 100% Made in Japan
- Warranty: Limited Lifetime Warranty
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
