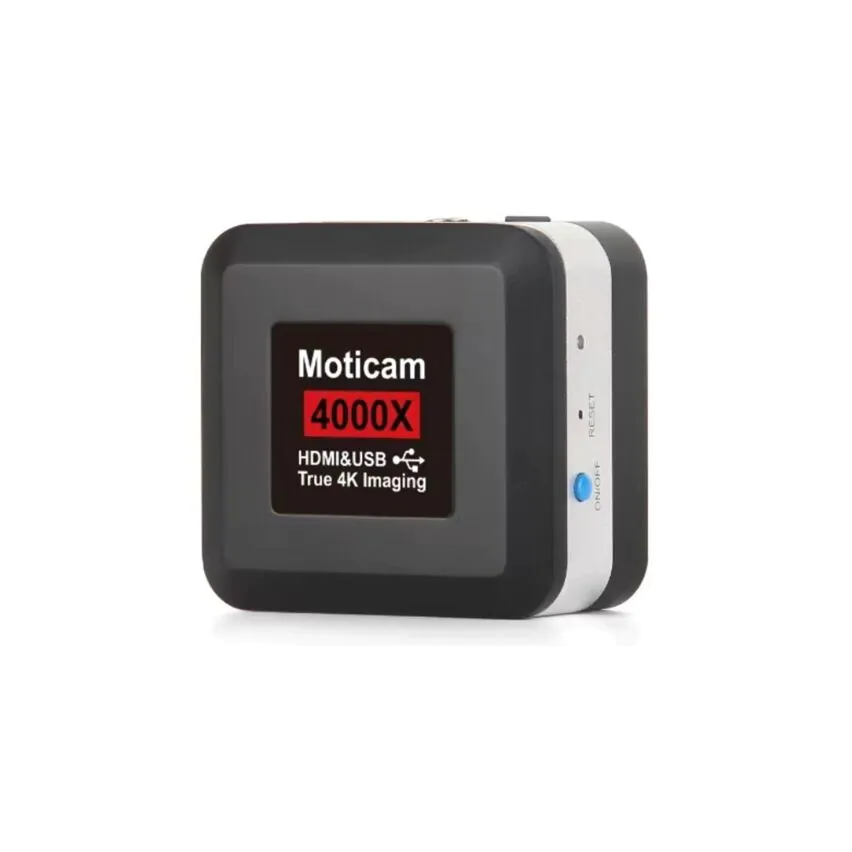

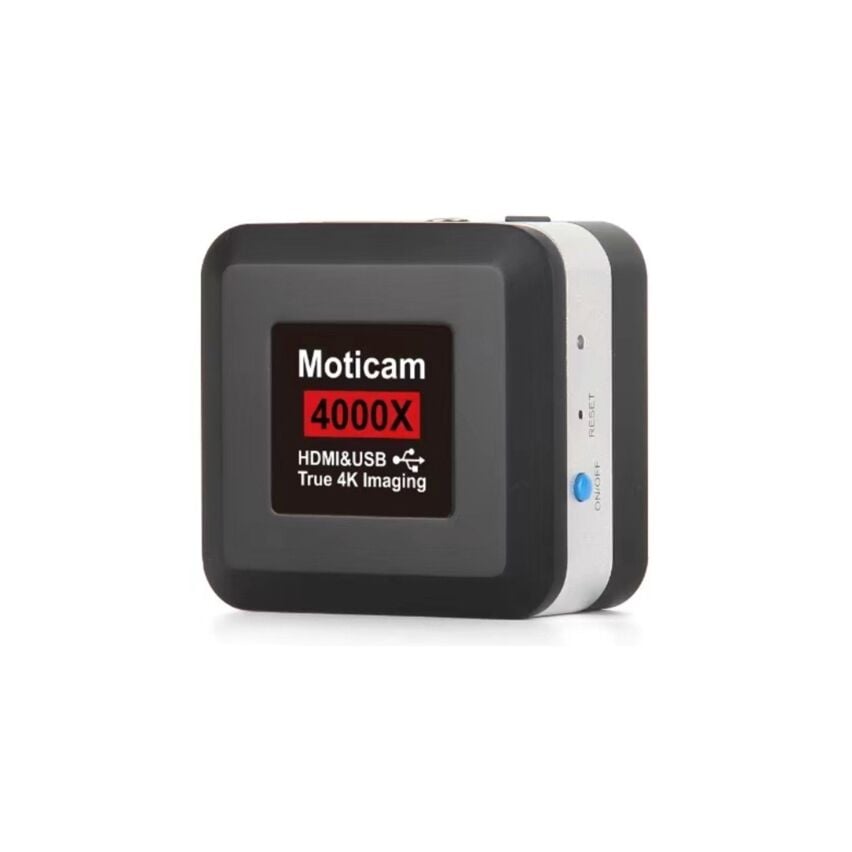

Moticam 4000X 4K Imaging Digital Microscope Camera with HDMI & USB
- Crisp 8.0 MP Image Capture
- HDMI, SD Card, or USB Output Capability
- 4K Rapid Live Imaging in full HD
- PC/MAC Compatible
- Stand-Alone Operation, no PC required
4000X
The Moticam 4000X is a brand new addition to Motic's lineup of digital microscope cameras. With a sharp, 8.0 megapixel live and capture resolution, 4K HDMI output for superior image quality and multiple-output flexibility, the Moticam 4000X sets a new benchmark for scientific microscopy cameras.
The Moticam's true talent is showcased by the ability to display live images at 4K resolution through the HDMI output port. HDMI technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. Additional output options include SD Card or USB.
Software
The included Motic Images Plus software offers PC/MAC compatibility and simple, accurate and easy-to-use controls for image capture, notation and measuring. File formats include JPG, BMP, TIFF, RAW. Measuring capabilities include length, width, height, thickness, circumference, radius, angles and dot counts while notations can be easily made on any given image.
The software also includes auto white balance and color enhancement among other benefits while image capture and storage is intuitive. The software is also fully TWAIN and DirectX compatible, allowing simple integration with a wide range of commercial and scientific imaging software. Moreover, both TWAIN and DirectX plug-ins are independent of the main driver, which allows discreet control of the camera for these applications.
Accessories
HDMI cable, CS ring, 12V power adapter, 4-Dot calibration slide, focusable coated glass lens, 30mm & 38mm Eyepiece adapters, Macro viewing tube, USB 2.0 Cable, Quick Start Guide.
| Brand | Motic |
|---|---|
| Product Weight | 1 |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1/2.5 Inch |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 2.2um x 2.2um |
| Sensor Color Depth | 8bpp / 24bit RGB |
| Scan Mode | Progressive |
| Signal to Noise Ratio | 38.1db |
| Dynamic Range | 70.1db |
| Peltier Cooling | No |
| Shutter | Electronic |
| Camera Mount | C-Mount |
| Camera Output Resolutions | Still Image 2592 X 1944 (5.0MP) / Video HD 1080P |
| FPS @ Max Res | HD - 30fps (2.0MP) |
| FPS @ Min Res | USB - 15fps (1.3MP) |
| Camera Interface | USB 2.0 |
| White Balance | Area-of-Interest |
| Black Balance | Manual |
| Software Included | Motic Images Plus 2.0ML |
| Driver API Compatibility | DirectX |
| Power Source | USB |
| File Formats | BMP |
| Exposure Control | Area-of-Interest |
| Included Accessories | Focusable Macro Lens, C-ring, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer, USB 2.0 cable, HDMI cable, RCA Composite video cable. NOTE: Accepts Standard size SD cards. |
| Supported Operating Systems | Windows 7 |
| System Requirements | 2GB RAM Recommended |
| Environmental | Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90% |
| Imaging Compatibility (with adapters) | C-Mount |
