Meiji Techno RZ-B CMO Stereo Zoom Body

List Price: $2,275.00

Our Price: $1,950.00

SKU: RZB

Availability: In stock

CMO binocular stereo microscope body with 10:1 zoom ratio, variable dual-iris diaphragms and 12 click stops throughout the zoom range. Focus controls integrated.

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • RZ-B CMO Stereo Body
Description

The RZ-B CMO Stereo microscope body features advanced, high-performance, modular components designed specifically for today's demanding environment. The optical heart of the system is a common main objective which creates an infinity optical system. This in turn, allows the addition of beam-splitters, coaxial illuminators or image transfer tubes without affecting the image quality. The crisp, distortion-free, high resolution images make the CMO design ideal for high magnification imaging and digital photography applications.

Internally, the parallel light beams pass through four sets of prisms controlled by dual ergonomic zoom knobs and 12 positive click stop settings. In addition, all exterior surfaces are coated with anti-static finish, especially useful when working in electrically sensitive laboratory environments.

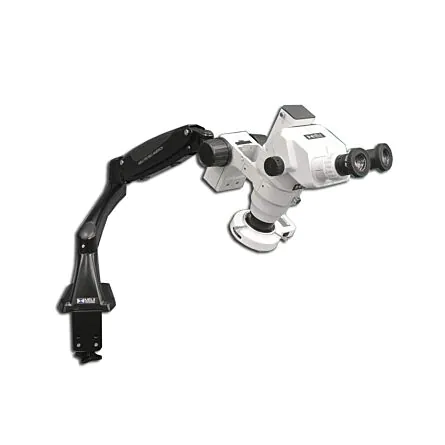

NOTE: RZ-B CMO Body shown with ergonomic head and RZT/LED stand, both sold separately.

These microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards. They are sold with Meiji Techno's limited lifetime warranty.

The Meiji line of microscopes offers more than 40 different stands, as well as a number of other options. Call our microscope professionals toll free at (877) 409-3556 for information on configuring a microscope to suit your application.

Specifications

RZ-B CMO Stereo Zoom Body
General
SKU RZB
Short Description CMO binocular stereo microscope body with 10:1 zoom ratio, variable dual-iris diaphragms and 12 click stops throughout the zoom range. Focus controls integrated.
Head
Head Type Binocular
Optical Design Parallel CMO
Magnification Type Zoom
Ocular Tube Diameter 30.5 mm
Barlow Mount Diameter 50 mm
Diopter Adjustment Dual
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 54mm - 75mm
Trinocular Standard 23mm DIN
Head Rotation 360 Degrees
Optics
Zoom Ratio 1:10
Zoom Control Type Detent Click-Stops
Zoom Indicator Graduations Yes
Parfocal Yes
Configuration
Included Eyepieces (X) 10X
Body
Body Material All-Metal
Compatibility
Imaging Compatibility (with adapters) 23mm , C-Mount
Available Imaging Mounts 0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
Head Ring Mount Diameter 84 mm
Working Distance
Max Working Distance (standard) 78mm
Reticles
Reticles Available? Yes
Reticle Diameter (10X Eyepiece) 25mm OD
Reticle Diameter (15X Eyepiece) 19mm OD
Reticle Diameter (20X Eyepiece) 19mm OD
Product Manuals
  • Meiji RZ Series Stereo Microscope Manual: Download PDF [2.4M]
