Meiji Techno SMD-8TR LED Stereo Microscope Inspection Station

List Price: $3,615.00

Starting at: $3,184.00

SKU: SMD-8TR

Availability: In stock

  • 7X-45X zoom magnification
  • Trinocular microscope head, standard WD = 104mm
  • Added 0.5X Barlow Lens, WD = 174mm
  • Paired 10X and 20X wide field eyepieces
  • S-4100 universal boom stand
  • LED ring illumination system
Select package options

Click on to learn more about the option * signifies required items

F Focus Block   $250.00
MA502 - 10X Super Widefield Paired Eyepieces   $150.00
MA504 - 20X Super Widefield Paired Eyepieces   $150.00
  • $150.00
  • $10.00
  • $129.00
  • $140.00
  • $139.00
S-4100 Boom Stand   $610.00

Included in Bundle

Focus Block: F Focus Block

Included Eyepieces: MA502 - 10X Super Widefield Paired Eyepieces

Add'l Included Eyepieces: MA504 - 20X Super Widefield Paired Eyepieces

Stand: S-4100 Boom Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

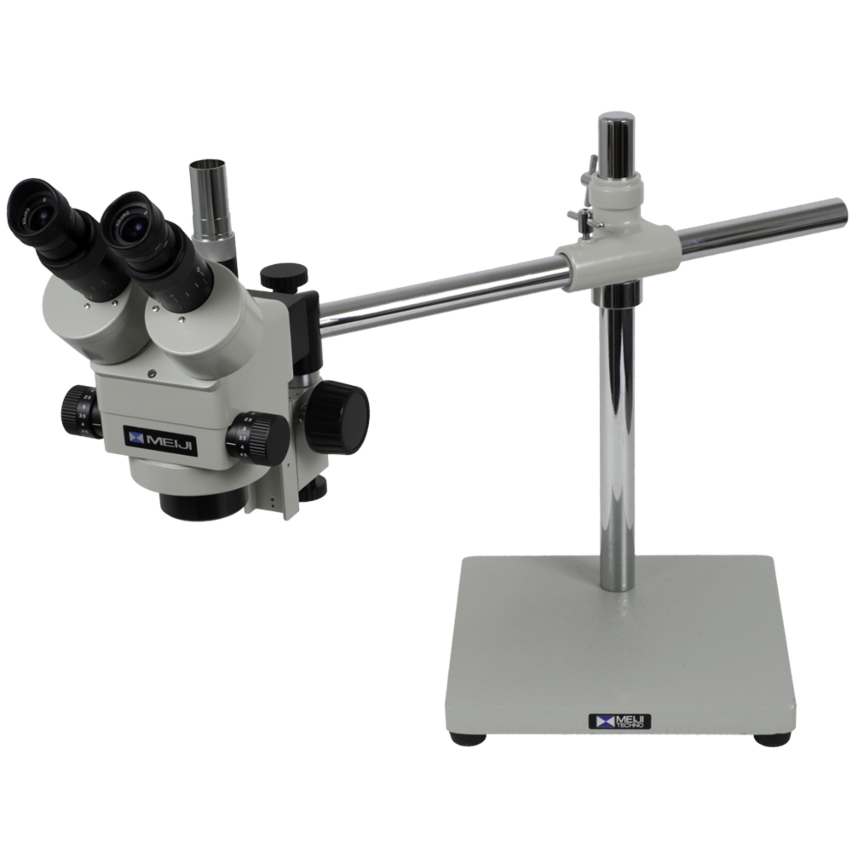

  • SMD-8TR Stereo Microscope Inspection Station
  • Meiji SMD-8TR Stereo Inspection station
  • SMD-8TR Stereo Microscope Inspection Station 3
  • SMD-8TR Stereo Microscope Inspection Station 4
  • SMD-8TR Stereo Microscope Inspection Station
Description

Summary

The Meiji SMD-8TR stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.

Microscope

The EMZ-8TR stereo trinocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 104mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions and, with the beam splitter engaged, allows observation from all three optical ports at the same time.

Two sets of wide field eyepieces, the MA502 10X and MA504 20X, are included for maximum versatility.

The S-4100 boom stand is solidly built and offers fully adjustable set screws to provide unlimited mounting flexibility.  The base platform offers a convenient base for an optional f iber optic illuminator.

All Meiji microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards and are sold with Meiji Techno's limited lifetime warranty.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-8TR Trinocular Stereo Head

    EMZ-8TRD Trinocular Stereo Head with Detents
    SKU EMZ8TREMZ8TRD
    Head
    Head Type TrinocularTrinocular
    Optical Design Greenough ConvergedGreenough Converged
    Magnification Type ZoomZoom
    Ocular Angle 45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm
    Diopter Adjustment DualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm
    Trinocular Type Beam Split ContinuousBeam Split Continuous
    Trinocular Standard 23mm DIN23mm DIN
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 0.70.7
    Maximum Objective (X) 4.54.5
    Zoom Control Type Smooth ContinuousDetent Click-Stops
    Zoom Indicator Graduations YesYes
    Parfocal YesYes
    Body
    Body Material All-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts 0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm
    Max Working Distance (standard) 104mm104mm

  • F Focus Block
    SKU F
    Focus Block
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Focus Block Mount Diameter 20 mm
    Head Ring Mount Diameter 84 mm

  • MA502 - 10X Super Widefield Paired Eyepieces
    SKU MA502
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 10x

  • MA504 - 20X Super Widefield Paired Eyepieces
    SKU MA504
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 20x

  • MA503 - 15X Super Widefield Paired Eyepieces
    SKU MA503
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 15x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • MA964 LED Ring Illuminator

    FL152 150W Halogen Annular Ring Fiber Optic Illuminator

    FL151 150W Dual-Arm Fiber Optic Illuminator
    SKU MA964FL152RFL151DP
    Notes MA964 LED ring illuminator mounts directly to EMZ Series without adapter
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*, EMZ-8*, EMZ-10, Z-7100, MA553/LED
    Light Specs
    Illumination Type  Fiberoptic
    Ring Light Type  FiberopticFiberoptic
    Ring Light Specification  150W150W
    Ring Light Control  VariableVariable

  • MA794 0.5x Barlow Lens WD 174mm

    MA792 0.35x Barlow Lens, WD=250mm

    MA795 1.5x Barlow Lens WD 57mm
    SKU MA794MA792MA795
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatible With EMZ-8*EMZ-8*EMZ-8*
    Optical Accessory
    Barlow Lens Power 0.5X0.4X1.5X

  • S-4100 Boom Stand
    SKU S4100
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Post Diameter 29 mm
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Fixed
    Compatibility
    Focus Block Mount Diameter 20 mm
