Meiji Techno RZ Binocular Head

List Price: $685.00

Our Price: $610.00

$ 610.00

SKU: MA748

Availability: In stock

  • Common main objective engineering
  • 10:1 zoom magnification
  • Dual-iris diaphragms
  • Dual dioptric adjustment
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

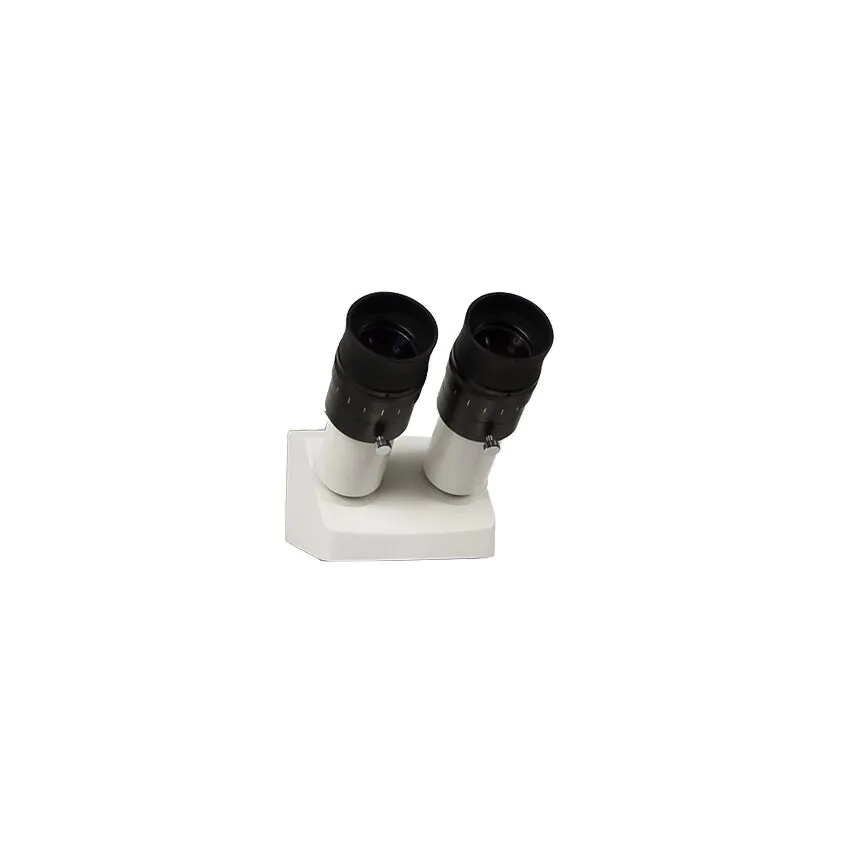

  • Meiji MA748 RZ Binocular Head

The MA748 stereo head is specifically for the Meiji RZ series zoom microscope, offering exceptional optical quality in a compact, ergonomic design. The eyetubes are set at 45-degree inclination for viewing comfort, rotate 360-degrees, and include dual dioptric adjustments. Interpupillary eye adjustment is 54mm - 75mm.

0 0

RZ Binocular Head
Brand Meiji Techno
Short Description
  • Common main objective engineering
  • 10:1 zoom magnification
  • Dual-iris diaphragms
  • Dual dioptric adjustment
  • Lifetime Limited Warranty
Feed - Title Meiji Techno RZ Binocular Head
Feed - Description The RZBD combines Meiji's CMO type zoom stereo body with binocular head and a brightfield/darkfield stand that includes an integrated, high intensity 150W fiber optic illuminator. Choose eyepieces and an objective to suit your application.RZ-B Microscope BodyThe RZ-B is the central component of any RZ system. The zoom optics have a 10:1 zoom ratio and a base zoom magnification of 7.5x to 75x using a 1.0X main objective. Depending on your selection of eyepieces and objectives, this translates into an total magnification range of 3.75x to 300x. The zoom controls indicate magnification at 12 positive click-stops throughout the zoom range, making photograph framing and measuring easily repeatable and consistent. Dual-iris diaphragms offer excellent control over resolution, contrast, and depth of field. The zoom optics are housed in a rugged aluminum alloy body for increased stability and durability, and all components are coated with an anti-static finish to protect sensitive specimens. The body is bored to receive the optional, coaxial vertical illuminator. Choose from one of five plan achromat objective lenses: 0.5x, 0.75x, 1.0x, 1.5x or 2.0x.Viewing HeadThere are two types of viewing head. MA748 standard binocular head is inclined 45
Feed - Custom Label 1 500-1000
Head Type Binocular
Optical Design Greenough Converged
Magnification Type Zoom
Ocular Angle 45°
Ocular Tube Diameter 30.5 mm
Barlow Mount Diameter 50 mm
Diopter Adjustment Dual
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 54mm - 75mm
Head Rotation 360 Degrees
Zoom Control Type Detent Click-Stops
Zoom Indicator Graduations Yes
Parfocal Yes
Body Material All-Metal
Head Ring Mount Diameter 84 mm
Working Distance
Max Working Distance (standard) 93mm
