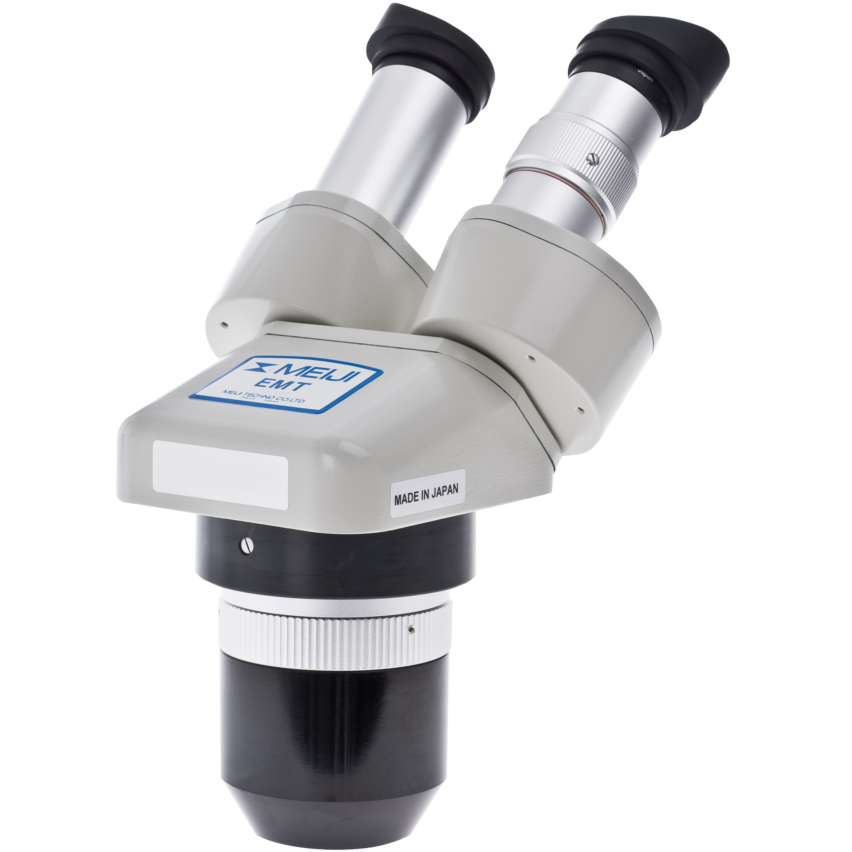

Meiji Techno EMT Series Dual Power Microscope Heads

$ 600.00

List Price: $745.00

Starting at: $600.00

SKU: EMT

Availability: In stock

  • Choose from 5 dual power combinations
  • 1x/2x, 1x/3x, 2x/4x, 1x/4x, 5x/10x
  • Rotatable head through 360º
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $10.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

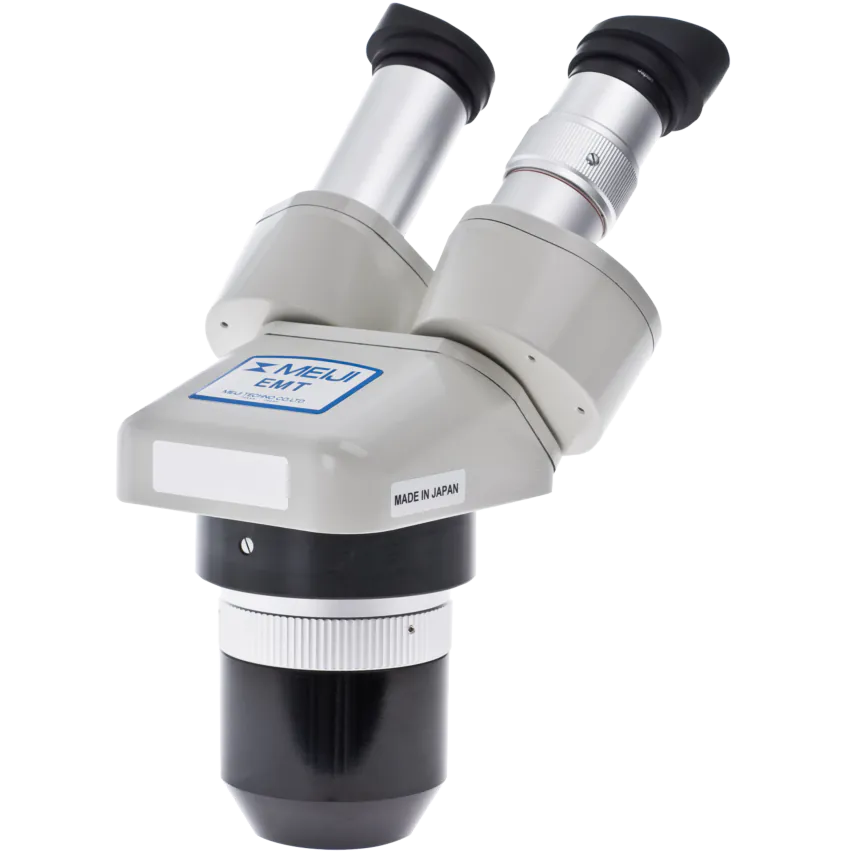

  • Meiji EMT Series Dual Power Stereo Microscope Heads
Description

Meiji Techno offers five types of dual power or turret stereo microscope heads in the following combinations:

  • EMT-1: 1x, 2x
  • EMT-2: 1x, 3x
  • EMT-3: 2x, 4x
  • EMT-4: 1x, 4x
  • EMX-1: 0.5X, 1.00X for extended working distance and use with PX stand

The EMT Series all include a binocular viewing head inclined at 45º with interpupillary adjustment of 54mm-75mm and a single diopter on the left eyetube. The standard working distance is 63mm with 23mm-5.7mm field of view. The head is rotatable through 360º for flexible viewing positions.

The EMX-1 is similar except for enabling a greater 225mm standard working distance and a 46mm-23mm field of view.

Please note that the trinocular versions have been discontinue.

NOTE: MA553 Ring Light Adapter is required when mounting ring lights.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMT-1 1x/2x Dual-Power Stereo Microscope Body

    EMT-2 1x/3x Dual-Power Stereo Microscope Body
    General
    Brand Meiji TechnoMeiji Techno
    SKU EMT1EMT2
    Head
    Head Type BinocularBinocular
    Optical Design Greenough ConvergedGreenough Converged
    Magnification Type Dual PowerDual Power
    Ocular Angle 45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm
    Diopter Adjustment SingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 11
    Maximum Objective (X) 23
    Parfocal YesYes
    Body
    Body Material All-MetalAll-Metal
    Head Ring Mount Diameter 84 mm84 mm
    Max Working Distance (standard) 108 mm81 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)
    General
    Brand Meiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji Techno
    SKU MA501MA718MA502MA520MA503MA504MA521MA519
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Feed - Title Meiji Techno MA501 - 5X Super Widefield Paired EyepiecesMeiji Techno MA718 - 7.5X Super Widefield Paired EyepiecesMeiji Techno MA502 - 10X Super Widefield Paired EyepiecesMeiji Techno MA520 - 12.5x Super Widefield Paired EyepiecesMeiji Techno MA503 - 15X Super Widefield Paired EyepiecesMeiji Techno MA504 - 20X Super Widefield Paired EyepiecesMeiji Techno MA521 - 30X Super Widefield Paired EyepiecesMeiji Techno MA519 - 10x Focusing Eyepiece (single)
    Feed - Description The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
    Feed - Custom Label 1 100-500100-500100-500100-500100-500100-500100-500100-500
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x

  • MA600 Stereo Eyeshields (Pair)
    General
    Brand Meiji Techno
    SKU MA600
    Feed - Title Meiji Techno MA600 Stereo Eyeshields (Pair)
    Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
    Feed - Custom Label 1 <100
