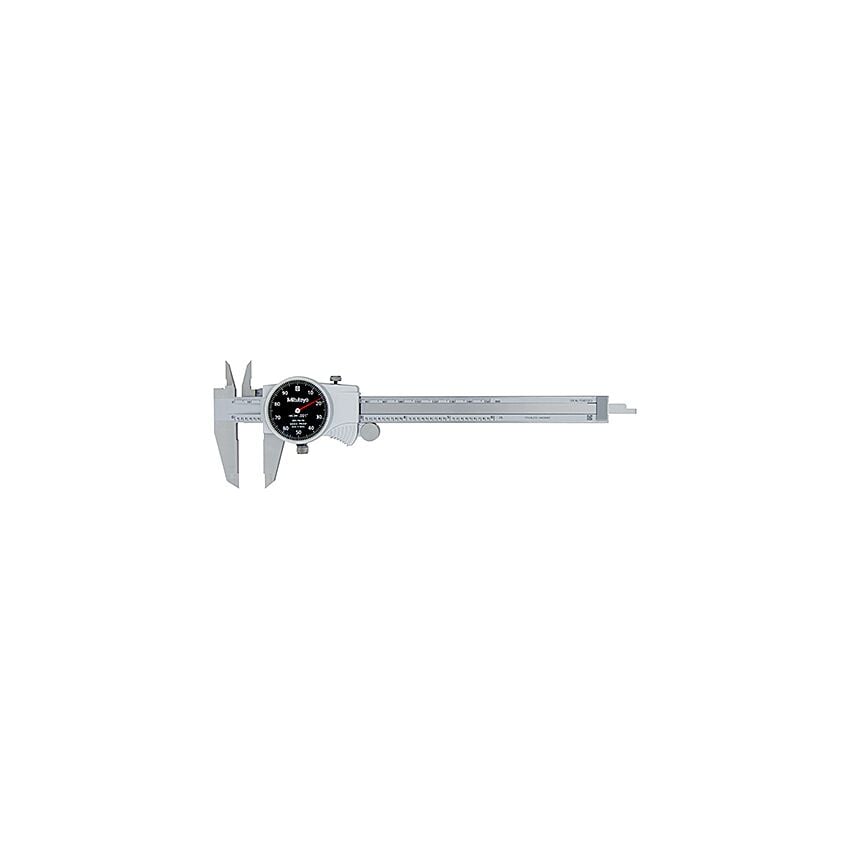

Mitutoyo Dial Calipers - Series 505

Mitutoyo Dial Calipers - Series 505

Series 505

Inch models include:

Mitutoyo 505-742	Mitutoyo 505-742-51
Mitutoyo 505-742-52	Mitutoyo 505-742-53
Mitutoyo 505-742-54	Mitutoyo 505-742-55
Mitutoyo 505-742-56	Mitutoyo 505-736
Mitutoyo 505-738	Mitutoyo 505-743
Mitutoyo 505-737	Mitutoyo 505-739
Mitutoyo 505-746	Mitutoyo 505-747
Mitutoyo 505-748	Mitutoyo 505-740
Mitutoyo 505-744	Mitutoyo 505-741
Mitutoyo 505-749	Mitutoyo 505-750

Metric models include:

Mitutoyo 505-732	Mitutoyo 505-733
Mitutoyo 505-730	Mitutoyo 505-734
Mitutoyo 505-735	Mitutoyo 505-731
Mitutoyo 505-745

FEATURES

• New designed dial movement for ultra smooth sliding and high shock protection.
• Can measure OD, ID, depth, and steps.
• Lock screw for dial bezel and for holding the slding jaw position .
• Models available with carbide-tipped OD and ID jaws.
• Supplied in fitted plastic case.

Measurement Applications Table

OD Measurement	ID Measurement	Step Measurement	Depth Measurement

TECHNICAL DATA

Graduation: 0.05mm, 0.05mm (1/128”) or .001” (1/128”)

High accuracy type: 0.02mm or 0.02mm (.001”)

FUNCTION

Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models ONLY)

Alarm: Low voltage, Counting value composition error

DIMENSION AND MASS
