Omano OMM300-T Inverted Metallurgical Compound Microscope

List Price: $2,999.00

Our Price: $2,199.00

SKU: OMM300-T

Availability: In stock

  • Inverted polarizing microscope
  • 5 plan objectives for high quality viewing
  • 3 WF 10x eyepieces, one with cross-hair reticle
  • Epi-Kohler halogen illumination
  • Polarizing disc and rotatable analyzer
  • Over-size stage for large specimens
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

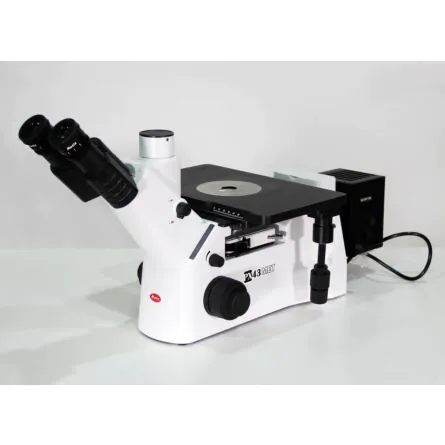

  • OMM300-T Inverted Trinocular Compound Microscope side view
  • OMM300-T Inverted Trinocular Compound Microscope side view
  • OMM300-T Inverted Trinocular Compound Microscope stage view
  • Eyepiece view - OMM300-T Inverted Trinocular Compound Microscope eyeypiece view
Description

Summary

The Omano OMM300 inverted, metallurgical microscope provides superb optics, built-in polarization capabilities, color filters and a host of other thoughtful details. It features five plan objectives (4x, 10x, 20x, 40x, 63x) and epi-Kohler lighting with three included WF10X eyepieces. One eyepiece includes a cross-hair linear reticle. It also includes a 23mm trinocular adapter for an eyepiece camera. Lifetime Limited Warranty.

Optics

The heart of the OMM300-T optical system includes five plan, parfocal objective lenses (4x, 10x, 20x, 40x, 63x) set in a quintuple nosepiece. There are three WF10x eyepieces, one of which includes a crosshair, linear reticle for measuring applications. Magnification ranges up to 630x. The polarizing disk is slide in/out with a fully rotatable analyzer and 360 degree rotatable color filters ( brightfield, yellow, green, blue). The trinocular port can be used for photomicrography at the same time as the eyepieces.

Stage & Focus

The XY microscope stage is excellent. It is large, solid and can handle unlimited size specimens. The stage measures 242mm x 172mm with a moving range of 75mm x 50mm. For added versatility, the stage can be used in two configurations - with or without the central mechanical stage. In addition, the stage includes a thoughtful addition in the form of a standard slide/petri dish rack.

This rack enables viewing of 22mm diameter petri dishes and standard 1" x 3" inch slides. Rack and pinion focusing includes ergonomic, coaxial coarse/fine movement to within .002mm graduations.

Condenser & illumination

The condenser illumination is powered by 12V 30W Epi-Kohler halogen with aperture iris diaphragm, field iris diaphragm and variable controls. The voltage is universal (85V-230V) so the microscope can be used worldwide.

Accessories

23mm trinocular camera adapter, rubber eyecups, stage plate, calibration slide, Manual, dust cover, fuse, bulb.

Shipping Wt. and dimensions: 26 Lb. 30"x19"x12".

Specifications

OMM300-T Inverted Metallurgical Compound Microscope
General
SKU OMM300-T
Short Description
  • Inverted polarizing microscope
  • 5 plan objectives for high quality viewing
  • 3 WF 10x eyepieces, one with cross-hair reticle
  • Epi-Kohler halogen illumination
  • Polarizing disc and rotatable analyzer
  • Over-size stage for large specimens
  • Lifetime Limited Warranty
Warranty Omano Limited Lifetime Warranty
System
System Type Brightfield, Inverted, Metallurgical
Optical Design DIN 160mm
Head
Head Type Trinocular
Ocular Angle 30°
Diopter Adjustment Single
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 55-75 mm
Ocular Tube Diameter 30 mm
Body
Nosepiece Style Quintuple (5)
Focus Controls Coarse & Fine, Coaxial
Focus Mechanism Rack & Pinion
Focus Control Location Dual Ambidextrous
Stage Type Fixed with Attached Mechanical Slide Holder
Stage Features Fingertip Controls, Slide Holder (spring-loaded)
Configuration
Includes Eyepieces? Yes
Included Eyepiece Quantity 3
Included Eyepieces (X) 10X
Min Standard Mag 40X
Max Standard Mag 630X
Objectives
Included Objectives (Qty) 5
Objective Lens Plan
Included Objective Types Brightfield, Inverted, Metallurgical
Condenser
Condenser Features Iris Diaphragm
Illumination
Illumination Type Halogen
Illumination Style Epi Metallurgical
Collector Features Field Diaphragm
Coaxial Light Type Halogen
Coaxial Light Specification 12V 30W
Coaxial Light Control Variable
Power Supply 120V AC
Compatibility
Imaging Compatibility (with adapters) 23mm , C-Mount
Accessories
Included Extras Dust Cover, Spare Bulb, Spare Fuse
