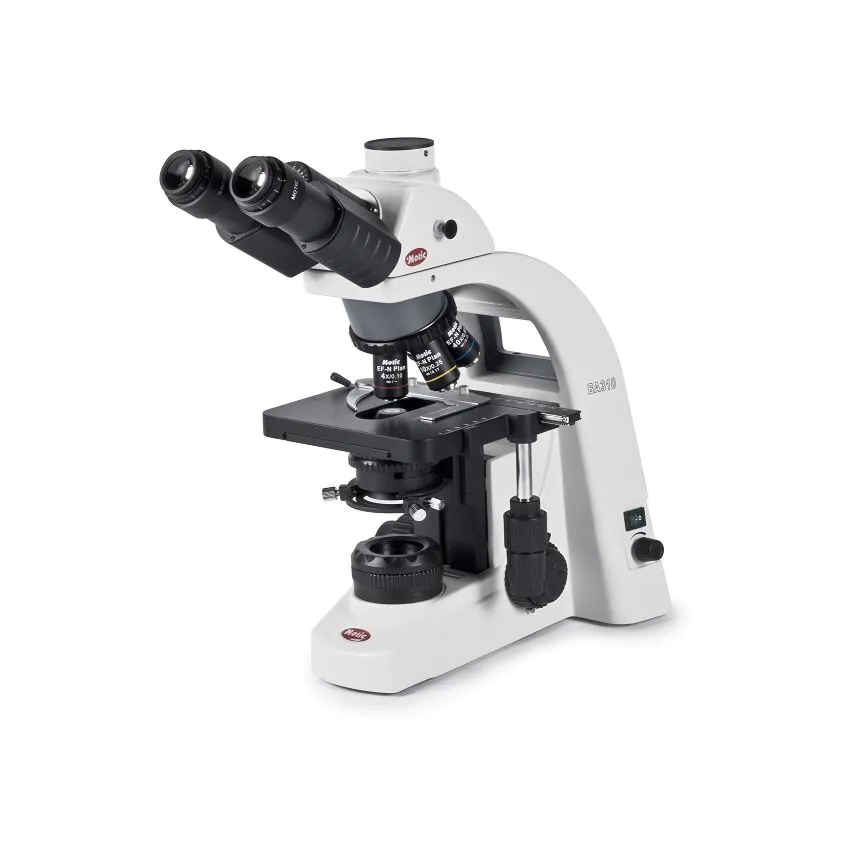

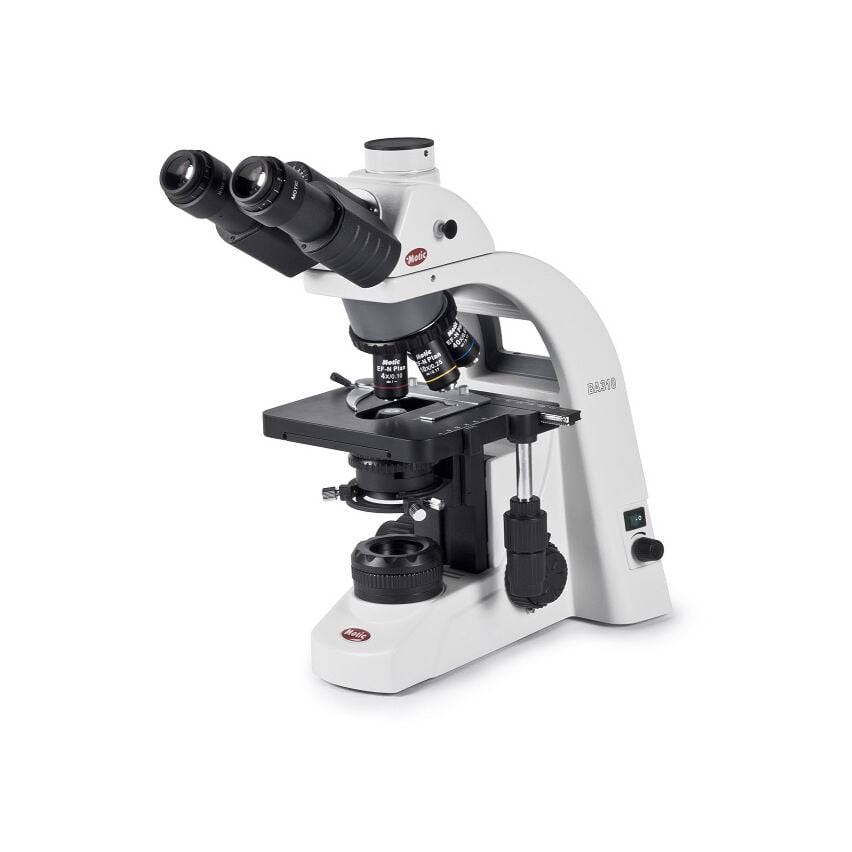

Motic BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope

List Price: $2,877.00

Starting at: $2,589.00

SKU: TMS-BA310ET-PH

Availability: In stock

  • 5 EC Plan Achromatic Objectives
  • 1 CCIS EC Plan Achromat - EC PL 4x
  • 3 CCIS EC Plan Phase - Ph10x, Ph40x S, Ph100x S-Oil
  • 6V30W Halogen and 3WLED illumination
  • Ergonomic Design for ease of operation
  • Lifetime Limited Warranty
  • Recommended for Research Laboratories & Clinics

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope   $2,589.00
  • $349.00
  • $469.00
  • $409.00
  • $809.00
  • $629.00
  • $139.00

Included in Bundle

Microscope: BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope
  • BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope 1
  • BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope 3
  • BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope 4
Description

Summary

The Motic new BA310 Elite Phase Contrast is built for the performance demands of colleges, universities and medical school markets, setting a new price-performance standard for optical quality. It offers innovative features like second-generation EC Plan phase contrast optics, a new rackless stage movement and an advanced 6V30W Halogen or 3W LED illumination design. Built-in Koehler illumination, a 30-degree inclined Siedentopf trinocular head and 10X Widefield eyepieces round out an exceptional system. This new microscope series brings versatility and ergonomics to a wide range of education and professional applications.

Optics

The optical system is designed around a new generation of Color Corrected Infinity System Achromatic objectives (EC PLAN 4x), and Plan Phase Contrast objectives (EC PLAN Ph10X. Ph40X-S, Ph100x-S Oil). Housed in a reversed quintuple nosepiece, these new lenses are multilayer-coated for improved color fidelity and image enhancement, rewarding researcher efforts with clear visual and digital results.

Stage & Focus

A new rackless stage with ergonomic right-hand controls enables effortless positioning of the XY movement without gear rack interference. The large, 150mm x 150mm double-layered mechanical surface incorporates a new spring-loaded specimen holder for soft, yet secure grip on the slide, and ergonomic drop down coaxial controls for convenient 'eyes down' operation. The stage range of movement is 80mm x 30mm.

Focusing includes high quality rack and pinion mechanics for longer life and coaxial coarse/fine focus controls for easier focusing. The fine focus scale value is 0.002mm. The dimmer switch is conveniently located next to the right hand control, allowing 'eyes down' operation. Safety features include a rack stop to ensure that the stage does not impact and damage the objectives or slides, and a slip clutch minimizes the risk of damage due to over-extension.

Illumination

Our new Motic Elite series comes standard with a 6V/30W Halogen Koehler lamp which also offers a new 3W LED module. A phase centering telescope and 5-Position Phase slider for Ph1, Ph2, Ph3, DF, BF are included. A professional focus-able Abbe 1.25 NA condenser with iris diaphragm and filter slot for optimal adjustments, completes this very impressive system.

Accessories

Owners Manual, 5ml Immersion Oil, Hex Key, 45mm Blue Filter, Dust Cover. Motic Part # 1100100402645.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • BA310ET-PH Elite Trinocular Lab Phase Contrast Compound Microscope
    SKU BA310ET-PH
    Warranty Limited Lifetime Warranty
    MAP Copy MAP - Motic
    System
    System Type Brightfield, Phase Contrast
    Optical Design Infinity Corrected
    Number of Heads Single Primary Head
    Head
    Head Type Trinocular
    Head Rotation 360 Degrees
    Ocular Angle 30°
    Diopter Adjustment Dual
    Interpupillary Adjustment Arc (Seidentopf)
    Interpupillary Adjustment Range 55-75 mm
    Trinocular Type Switchable Beam-Split
    Ocular Tube Diameter 30 mm
    Body
    Nosepiece Orientation Reversed
    Nosepiece Style Quintuple (5)
    Focus Controls Coarse & Fine, Coaxial
    Focus Mechanism Rack & Pinion
    Focus Control Location Dual Ambidextrous
    Focus Controls Graduated? Yes
    Focus Control Safety Stop Slip Clutch
    Stage Type Mechanical XY
    Stage Features Fingertip Controls, Full Stage XY, Slide Holder (spring-loaded)
    Stage Dimensions 150mm x 150mm
    Stage Range of Movement (XY) 80mm x 30mm
    Stage Range Graduated? Yes
    Configuration
    Includes Eyepieces? Yes
    Included Eyepiece Quantity 2
    Included Eyepieces (X) 10X
    Eyepiece Style SWF Super Widefield (FN 20mm)
    Includes Eyecups? Yes
    Min Standard Mag 40X
    Max Standard Mag 1000X
    Included Objectives (Qty) 4
    Objective Lens Plan
    Included Objective Types Brightfield
    Objective 1 Description EC PLAN 4X
    Objective 1 N.A. 0.10
    Objective 1 W.D. 15.90
    Objective 2 Description EC PLAN PHASE 10X
    Objective 2 N.A. 0..25
    Objective 2 W.D. 17.40
    Objective 3 Description EC PLAN PHASE 40X S
    Objective 3 N.A. 0.65
    Objective 3 W.D. 0.50
    Objective 4 Description EC PLAN PHASE 100X - OIL S
    Objective 4 N.A. 1.25
    Objective 4 W.D. 0.15
    Condenser
    Condenser Type Abbe Brightfield
    Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder, Swing-out Secondary Lens
    Condenser N.A. 1.25 mm
    Filters Included Blue
    Illumination
    Illumination Type Halogen, LED
    Illumination Style Transmitted, Phase Contrast
    Collector Type Kohler
    Collector Features Field Diaphragm
    Transmitted Light Type Halogen
    Transmitted Light Specification 6V30W or 3W LED
    Transmitted Light Control Variable
    Power Supply 100-240V
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount
    Accessories
    Included Extras Dust Cover

  • Moticam 1SP 1.3MP Color Digital Microscope Camera

    Moticam 2 2.0MP Color Digital Microscope Camera

    Moticam X WiFi - iPad/Android Compatible Microscope Camera

    Moticam 5+ 5.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 3+ 3.0MP Color USB 3.0 Digital Microscope Camera
    SKU MC1SPMC2MCXMC5+MC3+
    Product Weight 1.00001.00001.00001.00001.0000
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - Motic
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch1/2 Inch
    Color/Monochrome ColorColorColorColorColor
    Pixel Pitch 3.2um x 3.2um3.2um x 3.2um2.8um x 2.8um2.2um x 2.2um3.2um x 3.2um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 43db43db42db38.1db43db
    Sensitivity  1,4V/Lux-sec (550nm)1,0V/Lux-sec (550nm)
    Dynamic Range 61db61db68db70.1db61db
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels2 Megapixel, 1600x1200 pixels1.3 megapixel 5 Megapixel, 2592x1944 pixels3 Megapixel, 2048x1536 pixels
    Camera Output Resolutions  WiFi (1280 X 1024)
    FPS @ Max Res 13fps5 fps1514 fps12 fps @ 2048 x 1536
    FPS @ Min Res  1550 fps50 fps @ 512 x 384
    Camera Interface USB 2.0USB 2.0WiFi, USB 2.0USB 3.0USB 3.0
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManualManualManualManual
    Software Included Motic Images Plus 2.0MLMotic Images Plus 2.0MLMotic Images Plus 2.0MLMotic Images Plus 3.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Exposure Time  0.15msec - 5 sec0.11 sec - 7 sec
    Operating Temperatures -30°C to +70°C-30°C to +70°C -30°C to +70°C-30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30mm, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube, CS Ring Adaptor, Software CD, USB 3.0 cable, Calibration Slide Micrometer.Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 10, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-MountC-MountC-Mount

  • C-Mount Adapter 0.5X for Motic Microscopes
    SKU MCA-05X
    Warranty Omano Limited Lifetime Warranty
    Notes Does not fit Binocular
    MAP Copy MAP - Motic
