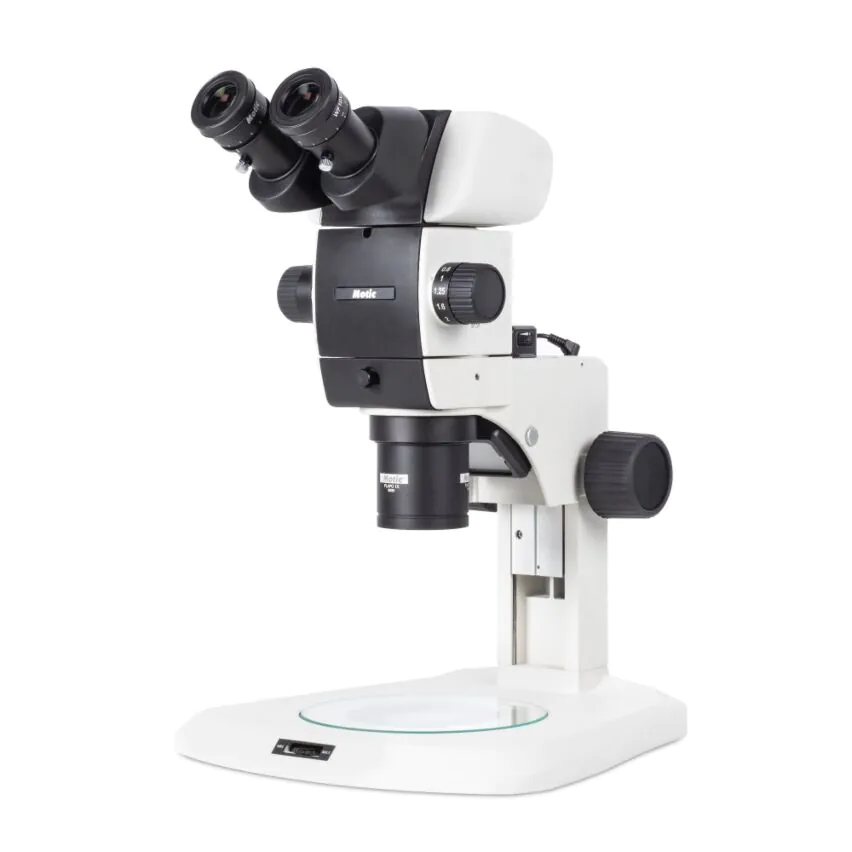

Motic SM7-TLED APO1X Binocular Microscope – Incident & Transmitted Illumination, Apochromatic Objective
- Advanced Optical Performance: Features a Plan Apochromat 1X objective and Galilean optics for true color reproduction, high resolution, and minimal distortion.
- Dual LED Illumination: Equipped with 3W incident and transmitted LED lighting, featuring independent controls for examining both transparent and opaque specimens.
- Versatile Application: Optimized for spatial accuracy and detail in biological research, medical diagnostics, and industrial quality control.
- Precision Engineering: Designed with an 81mm working distance and a binocular head for ergonomic, high-clarity viewing of complex samples.
Motic SM7-TLED APO1X Binocular Stereomicroscope
Advanced Galilean Infinity Optics with Plan Apochromat Precision
Unrivaled Optical Clarity for Research and Industry
The Motic SM7-TLED APO1X represents a significant advancement in stereomicroscopy, utilizing a Common Main Objective (CMO) Galilean optical path. Engineered for professionals in biology, medicine, and industrial quality control, the SM7 series delivers superior spatial information, high resolution, and remarkably low distortion.
At the heart of this system is the Plan Apochromat 1X objective, which provides true color reproduction and edge-to-edge sharpness, making it the ideal tool for complex documentation and high-precision analysis.
Core Performance Features
- Galilean Infinity Optical Design: Provides a parallel optical path for superior modularity and image quality.
- 7:1 Zoom Ratio: Versatile magnification ranging from 0.8X to 5.6X with 10-step click stops for easy measurement reproducibility.
- Advanced LED Illumination: Dual 3W LED system for incident (top) and transmitted (bottom) light with independent intensity controls—perfect for mixed opaque and transparent samples.
- Ergonomic Comfort: A 30º inclined binocular head and dual diopter adjustments (+5/-8) ensure fatigue-free operation during long lab sessions.
- Plan Apochromatic Correction: Corrects for chromatic and spherical aberrations to produce high-contrast, color-accurate images.
Technical Specifications
| Optical & Mechanical Specs | |
|---|---|
| Model | SM7-TLED APO1X |
| Optical System | Galilean Infinity / Common Main Objective (CMO) |
| Objectives | Plan Apochromat 1X; 81mm Working Distance |
| Zoom Range | 0.8X ~ 5.6X (10-step) |
| Eyepieces | WF10X/22mm (Widefield) |
| Focus Stroke | 120mm with tension adjustment |
| Dimensions | 367 x 290 x 372mm (Base: 310 x 290mm) |
| Weight | 7.4kg (Net) |
Versatility Across Disciplines
The SM7-TLED APO1X is built to handle diverse specimen types:
- Life Sciences: Ideal for dissection, embryology, and observing biological tissues with true color fidelity.
- Industrial QC: Perfect for circuit board inspection, material analysis, and precision assembly.
- Medical Labs: Provides the resolution required for pathology screening and clinical research.
Upgrade Your Laboratory Standards
Experience the precision of Motic’s flagship stereomicroscope series.
Contact us for pricing or a technical consultation today.
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
