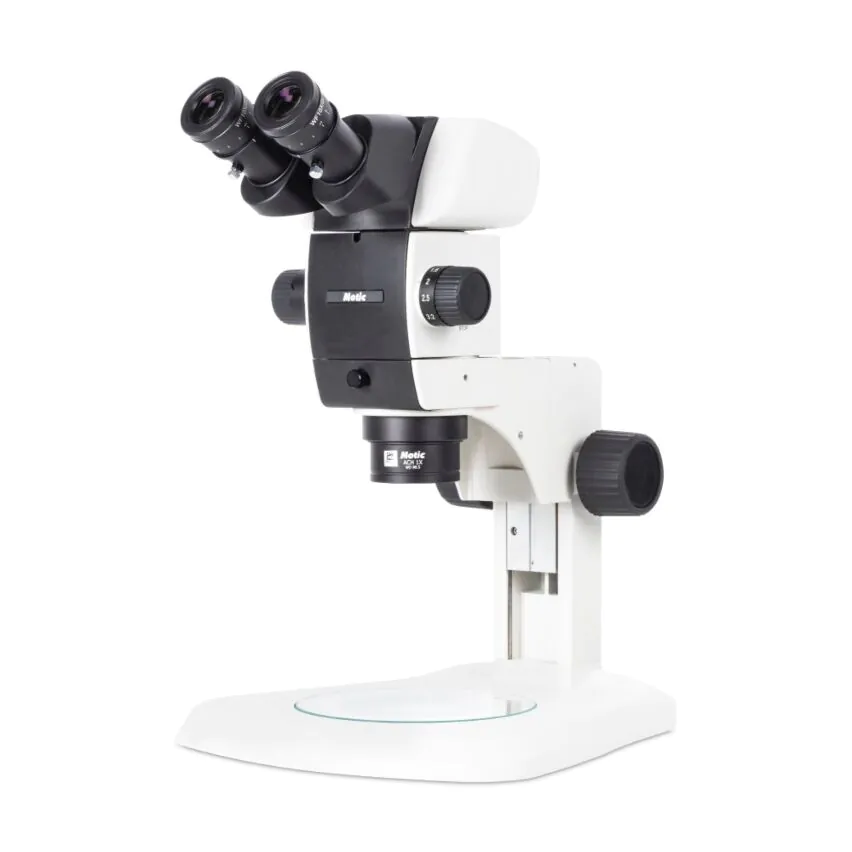

Motic SM7-P A1X Binocular Microscope without Illumination
- Superior Optical Performance: Features a Plan Achromat 1X objective that delivers high-resolution images with true color reproduction and minimal distortion.
- Advanced Galilean System: Utilizes Motic’s renowned Galilean optical path to provide exceptional spatial information and depth for biological and industrial applications.
- Optimized for Opaque Samples: Includes a stable plain stand designed specifically for viewing non-transparent materials, with a 90mm working distance for ample specimen room.
- Versatile & Adaptable: While built for reflected light, the system is designed to easily integrate with external light sources to suit specific laboratory or quality control needs.
Motic SM7-P A1X Galilean Stereo Microscope
Advanced Common Main Objective (CMO) Optical Design for Precision Inspection
Superior Clarity for Biology, Medicine, and Industry
The Motic SM7-P A1X is a high-performance binocular stereomicroscope engineered for professionals who demand true color reproduction and minimal distortion. Built on a sophisticated Galilean Infinity Optical System, this Common Main Objective (CMO) microscope provides exceptional spatial information and high-resolution imaging, making it a new highlight for medical research and industrial quality control.
Designed specifically for opaque samples, the SM7-P A1X features a stable plain fixed-arm stand. Its modular nature allows for easy integration of external light sources (ring lights or cold light-guides) to suit specific application needs.
Key Performance Features
- 7:1 Zoom Ratio: Navigate from 0.8X to 5.6X with a 10-step click-stop mechanism for precise magnification reproducibility.
- Plan Achromat 1X Objective: Provides a flat field of view and edge-to-edge sharpness across a 90mm working distance.
- Common Main Objective (CMO) Design: Eliminates the "keystone effect" found in Greenough systems, offering superior depth of field and modularity.
- Ergonomic Observation: A 30º inclined binocular head and dual diopter adjustments (+5/-8) ensure comfortable long-term use.
- Rugged Large Base: The 310x290mm base provides an extremely stable platform for inspecting large samples.
Technical Specifications
| Feature | Details |
|---|---|
| Optical System | Galilean Infinity / Common Main Objective (CMO) |
| Magnification Range | 8X to 56X (with included 10X eyepieces) |
| Working Distance | 90mm |
| Eyepieces | Widefield WF10X/22mm (High Eyepoint) |
| Focusing | Coarse system with tension adjustment; 120mm stroke |
| Stand Type | Fixed-arm plain stand with Ø160mm Black/White stage plate |
| Dimensions | 367 x 290 x 372mm (Net weight: 6.9kg) |
Optimized for Professional Workflows
The SM7-P A1X excels in environments where color accuracy and resolution are non-negotiable:
- Industrial Inspection: Ideal for PCB assembly, micro-mechanics, and material surface analysis.
- Biological Research: Perfect for dissection and large-scale specimen observation.
- Quality Control: Reliable performance for consistent 10-step magnification checks.
What's in the Box?
- Motic SM7-P A1X Microscope Head & Stand
- WF10X/22mm Eyepieces (Pair)
- Plan Achromat 1X Objective
- Ø160mm Black/White Contrast Plate
- Protective Dust Cover
Enhance Your Inspection Accuracy
Invest in the clarity of the Motic SM7 Series today.
Need a customized lighting solution or a camera adapter for this model?
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
