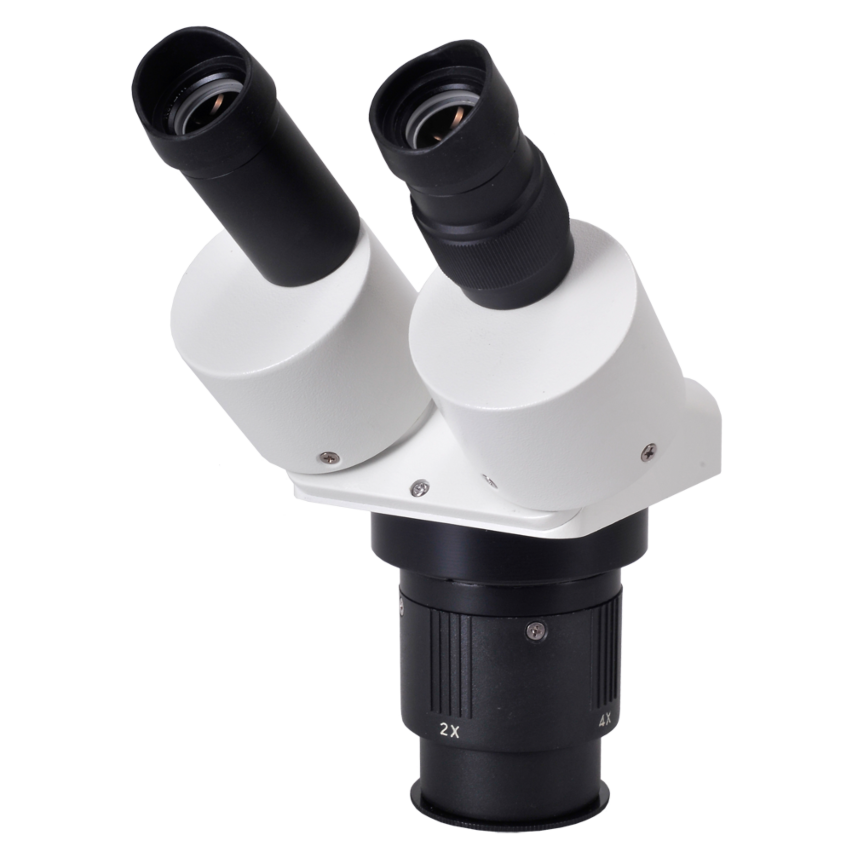

Omano OM2040 Dual Power Stereo Microscope head

$ 199.00

List Price: $298.00

$199.00

SKU: OM2040

Availability: In stock

  • Dual Power 20x/40x Magnification
  • Binocular or trinocular
  • Included WF10x eyepieces
  • Included rubber eyecups
  • Included 23mm camera adapter with trinocular
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OM2040T Trinocular (Recommended for camera use)   $199.00

Included in Bundle

Microscope: OM2040T Trinocular (Recommended for camera use)

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  •  Omano OM2040 Dual Power Stereo Microscope head
  • Omano OM2040 Dual Power Stereo Trinocular Microscope head
Description

The Omano OM2040 is our most economical stereo microscope body and has proved popular over ten years. It includes 2x/4x dual power objectives and WF10X eyepieces for total magnification of 20x/40x. The right eyepiece includes a diopter for individual eye focusing and the interpupillary adjustment range is 55-75mm. Rubber eyecups are included. The effective working distance is 3.75" without an auxiliary barlow lens. Optional barlow lenses are available in 0.3x, 0.5x, 0.75x, 1.0x and 2.0x powers.

The head is available in both binocular and trinocular formats and a 23mm trinocular adapter for eyepiece cameras is included with the trinocular version.
,br /> Lifetime Limited Warranty.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM2040T Trinocular (Recommended for camera use)
    General
    Brand Omano
    SKU OM2040-T
    Magnification Chart OM4713 Magnification Chart
    Head
    Head Type Trinocular
    Optical Design Greenough Converged
    Magnification Type Dual Power
    Ocular Angle 45°
    Ocular Tube Diameter 30.5 mm
    Barlow Mount Diameter 50 mm
    Diopter Adjustment Single
    Interpupillary Adjustment Arc (Seidentopf)
    Interpupillary Adjustment Range 50-70 mm
    Trinocular Type Prism Switching
    Trinocular Standard 23mm DIN
    Head Rotation 360 Degrees
    Minimum Objective (X) 2
    Maximum Objective (X) 4
    Configuration
    Includes Eyepieces? Yes
    Included Eyepieces (X) 10X
    Min Standard Mag 20X
    Max Standard Mag 40X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Coating Type Durable Powdercoat
    Compatibility
    Imaging Compatibility (with adapters) 23mm
    Head Ring Mount Diameter 84 mm
    Max Working Distance (standard) 95 mm
    WD with 0.5x Barlow 95 mm
    WD with 0.75x Barlow 102
Magnification Chart

Eyepiece

Standard Configuration

OM44xx, OM47xx and OM1030/2040

Auxiliary Barlow Lenses

0.5X

0.75X

1.5X

2.0X

Working distance 95mm

Working distance 156mm

Working distance 102mm

Working distance 44mm

Working distance 30mm

Magnification

Field of view
(mm)

Magnification



Field of view
(mm)

Magnification

Field of view
(mm)

Magnification

Field of view
(mm)

Magnification FIeld of view
(mm)

10X / 20

10x
20x
30x
40x

20
10
6.7
5.0

5x
10x
15x
20x

40
20
13
10

7.5x
15x
22.5x
30x

26.7
13.3
8.9
6.7

15x
30x
45x
60x

13.3
6.7
4.4
3.3

20x
40x
60x
80x
10.5
3.3
2.5
1.7

15X / 15

15x
30X
45X
60x

16
8
5
3.4

 7.5x
15x
22.5x
30x


32
16
10
7.8

11.3x
22.5x
33.8x
45x

21.3
10.7
7.1
5.3

22.5x
45x
67.5x
90x

10.7
5.3
3.6
2.7

30x
60x
90x
120x
8
4
2.7

20X / 10

30x
40x
60x
80x

12
6
4

10x
20x
30x
40x

24
12
8

15x
30x
45x
60x

16.0
8
5.3
4

30x
60x
90x
120x

8
4
2.7

 40x
80x
120x
160x
 6
3
2
1.5
25X / 8 25x
50x
75x
100x

9
4.5
3
2.5

12.5x
25x
37.5x
50x

18
9
6
4.5

 18.8x
37.5x
56.3x
75x

8
6
5.3
4.06

37.5x
75x
112.5x
150x

6
3
2
1.5

50x
100x
150x
200x

4.5
2.25
1.5
1.13
