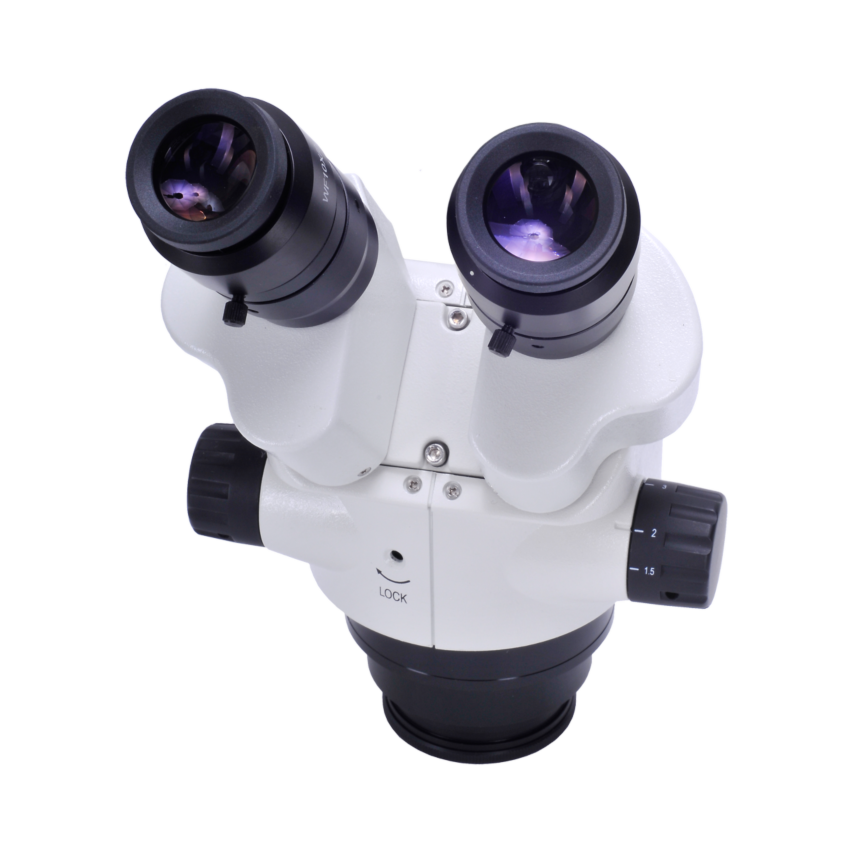

Omano OM2300 Binocular Stereo Head

List Price: $760.00

Our Price: $279.00

$ 279.00

SKU: OM2300-B

Availability: In stock

Binocular Zoom Stereo Head, 0.7X-4.5X Objective, 7X-45X Zoom Magnification with included WF10X Eyepieces

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

Description
The OM2300 has been our workhorse, binocular stereo microscope body for 12 years. In 2010, it has been replaced by the upgraded,OM2300S, but we continue to support the old head. The microscope head includes 7X-45X zoom range, WF10X eyepieces and eyecups and a single diopter for convenient right eye adjustments.
0 0
Specifications

OM2300 Binocular Stereo Head
General
Brand Omano
SKU OM2300-B
Short Description Binocular Zoom Stereo Head, 0.7X-4.5X Objective, 7X-45X Zoom Magnification with included WF10X Eyepieces
Head
Head Type Binocular
Optical Design Greenough Converged
Magnification Type Zoom
Ocular Angle 45°
Ocular Tube Diameter 30.5 mm
Barlow Mount Diameter 50 mm
Diopter Adjustment Dual
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 55-75 mm
Head Rotation 360 Degrees
Optics
Minimum Objective (X) 0.7
Maximum Objective (X) 4.5
Zoom Ratio 6.4:1
Zoom Control Type Smooth Continuous
Zoom Indicator Graduations Yes
Parfocal Yes
Configuration
Includes Eyepieces? Yes
Included Eyepieces (X) 10X
Min Standard Mag 7X
Max Standard Mag 45X
Eyecups Style Soft Rubber
Body
Body Material All-Metal
Coating Type Durable Powdercoat
Compatibility
Head Ring Mount Diameter 84 mm
Working Distance
Max Working Distance (standard) 95 mm
WD with 0.5x Barlow 95 mm
WD with 0.75x Barlow 102
WD with 2.0x Barlow 30
