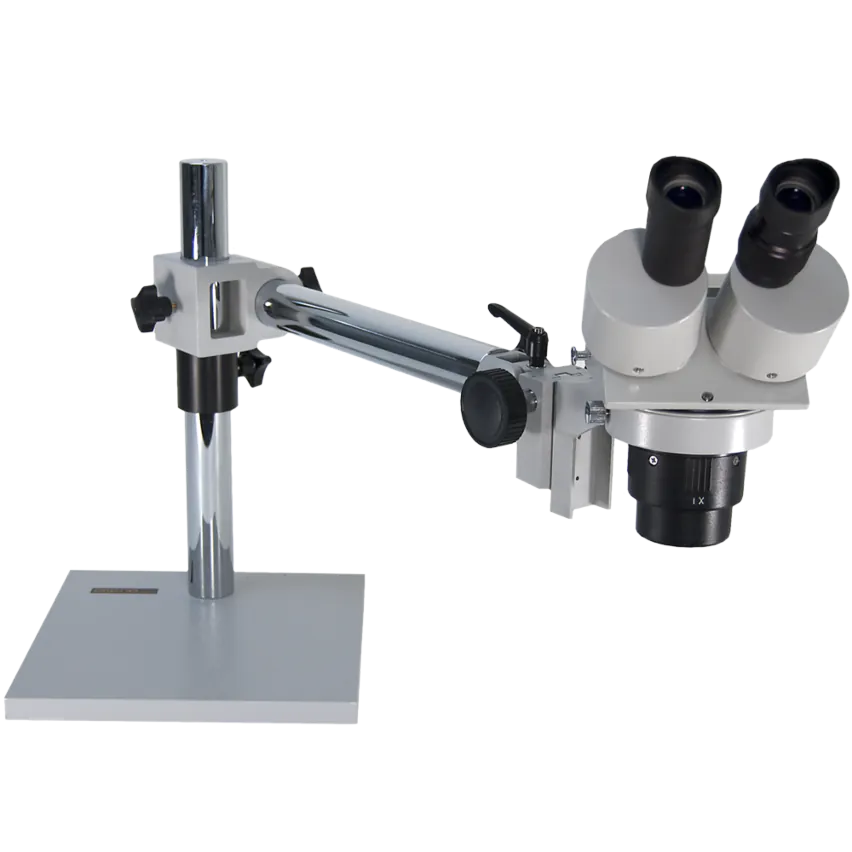

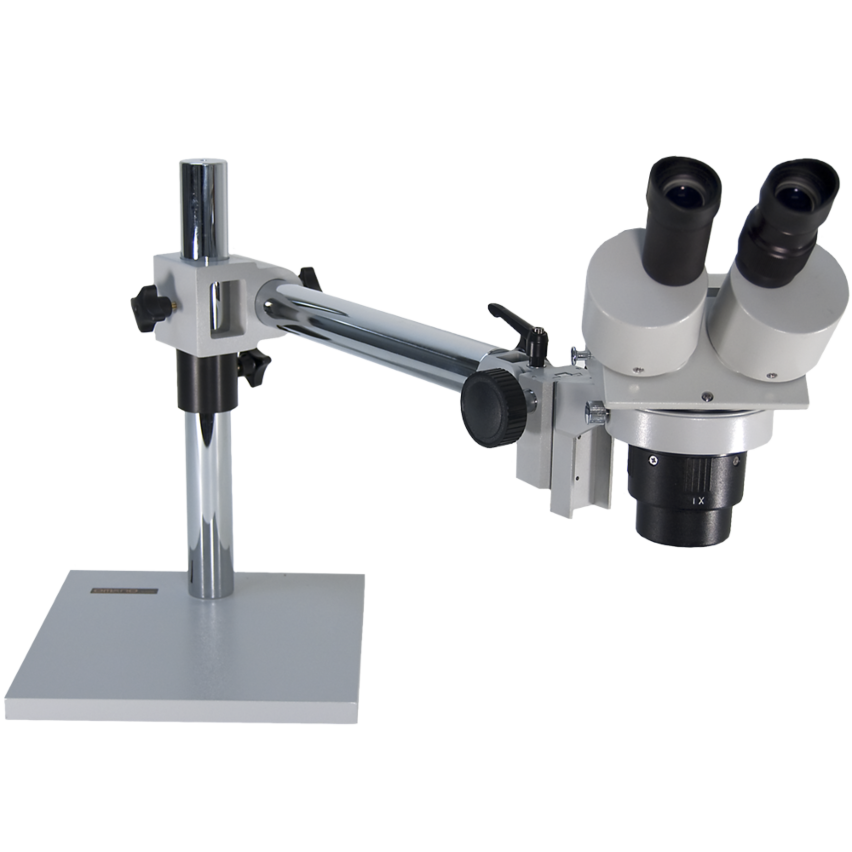

Omano OM2040-JW11 20X / 40X Dual Power Stereo Boom Microscope

List Price: $786.00

Starting at: $447.00

SKU: OM2040-JW11

Availability: In stock

  • 20x/40x dual power stereo head
  • Included WF10x eyepieces and eyecups
  • Workhorse JW11 single arm boom stand
  • Included ring light
  • Most Affordable stereo boom microscope
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

JW11 Stereo Boom Stand with 84mm Focus Block   $219.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00
  • $659.00
  • $299.00
  • $229.00
  • $39.00
  • $59.00

Included in Bundle

Stand: JW11 Stereo Boom Stand with 84mm Focus Block

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM2040-JW11 Stereo Boom Microscope
  • Omano OM2040-JW11 Stereo Boom Microscope 1
  • Omano OM2040-JW11 Stereo Boom Microscope 2
  • Omano OM2040-JW11 Stereo Boom Microscope 3
  • Omano OM2040-JW11 Stereo Boom Microscope  with camera
Description

Summary

The Omano OM2040-JW11 is our most affordable, dual power Omano boom microscope. Designed for industrial inspection applications, it is available in either binocular or trinocular configuration and offers 20x/40x magnification. The JW11 is a strong, single arm boom stand that has been a proven workhorse for over ten years. A ring illumination is included. Lifetime Limited Warranty.

Optics

The Omano OM2040 is our most economical stereo microscope body and has proved popular over ten years. It includes 2X/4X dual power objectives and WF10X eyepieces for total magnification of 20x/40x. Each eyepiece includes a diopter for individual eye focusing and the interpupillary adjustment range is 55-75mm. Rubber eyecups are included. The head is available in both binocular and trinocular formats and a 23mm trinocular adapter for eyepiece cameras is included with the trinocular version. The effective working distance is 3.75" without an auxiliary barlow lens. Optional barlow lenses are available in 0.3x, 0.5x, 0.75x, 1.0x and 2.0x powers. Lifetime Limited Warranty.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other light when adding the microscope to your shopping cart.

Stand

The Omano JW11 boom stand has been a workhorse and well-proven Omano stand for over ten years. Strong and affordable, it is a single arm stand with an included 84mm focus block. The horizontal arm extension is 20" including the microscope head. The pole is 17" tall with an effective useable height of 12". The stand weighs 32lbs.

Note: The NH1080 and CX3 require the OCS-SK2-CA037X C-mount adapter to connect to this Omano microscope.

Accessories

Eyecups, dust cover, manual

Stand assembly video:

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM2040 Binocular

    OM2040T Trinocular (Recommended for camera use)
    SKU OM2040-BOM2040-T
    Magnification Chart OM4713 Magnification ChartOM4713 Magnification Chart
    Head
    Head Type BinocularTrinocular
    Optical Design Greenough ConvergedGreenough Converged
    Magnification Type Dual PowerDual Power
    Ocular Angle 45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm
    Diopter Adjustment SingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 50-70 mm50-70 mm
    Trinocular Type  Prism Switching
    Trinocular Standard  23mm DIN
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 22
    Maximum Objective (X) 44
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepieces (X) 10X10X
    Min Standard Mag 20X20X
    Max Standard Mag 40X40X
    Eyecups Style Soft RubberSoft Rubber
    Body
    Body Material All-MetalAll-Metal
    Coating Type Durable PowdercoatDurable Powdercoat
    Compatibility
    Imaging Compatibility (with adapters)  23mm
    Head Ring Mount Diameter 84 mm84 mm
    Max Working Distance (standard) 95 mm95 mm
    WD with 0.5x Barlow 95 mm 95 mm
    WD with 0.75x Barlow 102102

  • JW11 Stereo Boom Stand with 84mm Focus Block
    SKU JW11-84
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Base Width 254 mm
    Base Depth 254 mm
    Post Height 380 mm
    Post Diameter 38 mm
    View Center to Post Distance 527 mm
    Physical Construction Metal Tube
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Articulable
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    3W LED Dual Gooseneck Spot Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-SPOT
    Warranty 1 year  1 year
    Product Weight 1lb  3.1 lbs
    Product Length  16 cm
    Product Width  10 cm
    Product Height  8 cm
    Power Supply  90V-265V
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • 2.0X Barlow Lens For Omano OM2300

    1.0X Protective Barlow For Omano OM2300

    0.75X Barlow Lens For Omano OM2300

    0.5X Barlow Lens For Omano OM2300

    0.3X Barlow Lens For Omano OM2300
    SKU OMBL-2300-20XOMBL-2300-10XOMBL-2300-075XOMBL-2300-05XOMBL-2300-03X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit OM2300SDoes not fit OM2300SDoes not fit OM2300SDoes not fit OM2300SDoes not fit OM2300S
    Compatibility
    Compatible With OM2300, OM2300T, OM3300OM2300, OM2300T, OM3300OM2300, OM2300T, OM3300OM2300, OM2300T, OM3300OM2300, OM2300T, OM3300
    Optical Accessory
    Barlow Lens Power 2.0X1.0X0.75X0.5X0.3X

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

    OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera

    AIR 5.0MP WiFi (PC / MAC) or USB (PC-Only) Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOCS-HDMI-1080PUOCS-HDMI-1OCS-AIR
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00002.00002.00001.8lbs
    Product Length  10"
    Product Width  8.5"
    Product Height  5"
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch1/3 Inch1/2.5 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOSSONY IMX236Aptina AR0330 CMOS Sensor
    Color/Monochrome ColorColorColorColorColorColorColorColor
    Filter  RGB Bayer Pattern
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm2.8um x 2.8um2.2um x 2.2um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db 39 dB
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm) 1.4v/lux-sec(550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db 69.5 dB
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC 12-bit Parallel, 8-bit R.G.B
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterMechanical
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-MountC-MountC-Mount, F-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels2.0 megapixels2.0 megapixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822 1920X1080i60,1920X1080P30,1280x720P60,640x480P60640 x 480, 800 x 600, 1280 x 960, 2592 x 1944
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328860 @ 1920 x 108030 Fps15/5 fps USB/WiFi
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822 60 FPS40/30 fps USB/WiFi
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0, HDMISD Card, USB 2.0, HDMIWiFi, USB 2.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic
    Black Balance  Automatic
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View  Measuring Software
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectXDirectX
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB PoweredExternal Power SupplyExternal Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMPJPEG, MOVJPEG, MOV
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual0.1ms - 999s0.21~33ms, Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C20-60 Deg. C0℃~ 40℃
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30-80% RH30~80%RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C -20℃~ 60℃
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD  Case, Software CD/App, Power Adapter, USB Cable
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+N/A, Windows 10, Windows 8, Windows 7Windows 8, Windows 7, Windows Vista, Windows XP SP3, Apple iOS, Android 3+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, ULCECE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)2.5m (8ft)2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year1 Year 1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-MountC-MountC-Mount

  • Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras

    Adjustable 23mm Camera Adapter 0.37X for SK2 Series Cameras
    SKU OCS-SK2-CA037X-23MMFOCS-SK2-CA037X-23MMA
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Backorder ETA  Nov 30, 2016
Magnification Chart

Eyepiece

Standard Configuration

OM44xx, OM47xx and OM1030/2040

Auxiliary Barlow Lenses

0.5X

0.75X

1.5X

2.0X

Working distance 95mm

Working distance 156mm

Working distance 102mm

Working distance 44mm

Working distance 30mm

Magnification

Field of view
(mm)

Magnification



Field of view
(mm)

Magnification

Field of view
(mm)

Magnification

Field of view
(mm)

Magnification FIeld of view
(mm)

10X / 20

10x
20x
30x
40x

20
10
6.7
5.0

5x
10x
15x
20x

40
20
13
10

7.5x
15x
22.5x
30x

26.7
13.3
8.9
6.7

15x
30x
45x
60x

13.3
6.7
4.4
3.3

20x
40x
60x
80x
10.5
3.3
2.5
1.7

15X / 15

15x
30X
45X
60x

16
8
5
3.4

 7.5x
15x
22.5x
30x


32
16
10
7.8

11.3x
22.5x
33.8x
45x

21.3
10.7
7.1
5.3

22.5x
45x
67.5x
90x

10.7
5.3
3.6
2.7

30x
60x
90x
120x
8
4
2.7

20X / 10

30x
40x
60x
80x

12
6
4

10x
20x
30x
40x

24
12
8

15x
30x
45x
60x

16.0
8
5.3
4

30x
60x
90x
120x

8
4
2.7

 40x
80x
120x
160x
 6
3
2
1.5
25X / 8 25x
50x
75x
100x

9
4.5
3
2.5

12.5x
25x
37.5x
50x

18
9
6
4.5

 18.8x
37.5x
56.3x
75x

8
6
5.3
4.06

37.5x
75x
112.5x
150x

6
3
2
1.5

50x
100x
150x
200x

4.5
2.25
1.5
1.13
