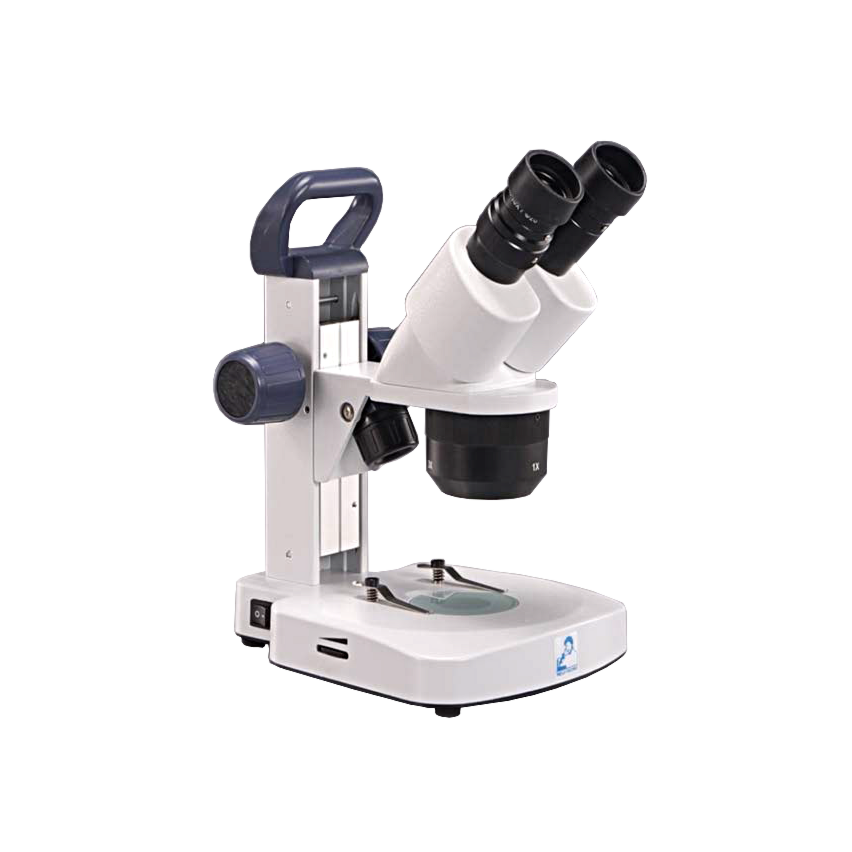

Meiji Techno EM-20 Series 10X-20X & 30X or 40X LED Educational Stereo Microscope

List Price: $475.00

$395.00

SKU: EM-20

Availability: In stock

  • 10X, 20X, 30X, or 40X stereo microscope
  • WF10x Eyepieces with eyeshields
  • Generous 60mm Working Distance
  • Ergonomic and modern design
  • Dual, variable LED illumination
  • Versatile carrying handle
  • Rechargeable batteries for cordless operation
  • Recommended for education and academic roles
Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EM-20 Series Stereo Microscopes
Description

Summary

The New Meiji EM-20 series stereo microscopes bring a modern, clean design to the student biology or science classroom, at a very competitive price. Featuring convenient fixed magnification at 10X, 20X, 30X, or 40X, they present sharp, erect images across a wide field of view. Variable LED upper and lower illumination, a rugged design and generous working distance ensure years of dependable service in the classroom or teaching laboratory.

Optics

Choose between 10X/20X/30X or 10X/20X/40X objective settings, and enjoy 10X WF eyepieces and a generous 60mm working distance below the objective turret. The left eyepiece offers +/- 5 diopter adjustment and both eyepieces are set in a binocular 45-degree head which rotates 360 degrees for optimum student-teacher interaction. Interpupillary adjustment range is 55mm-75mm and all optics are treated with anti-bacterial protection.

Focus & Illumination

The EM-20 series includes dual-sided ergonomic focusing controls with rack-and-pinion gearing and tension control. The LED incident and transmitted illumination is variable intensity and can be used separately or together for optimum viewing.

Stand

The aluminum-alloy enamel-coated stand features an ergonomic wide base for stable footing, a glass stage plate and two stage clips. It also features a convenient carrying grip for safe, secure handling. A 1.800 mAh rechargeable battery and external power supply allow fast chargeups and convenient portability between the classroom and field study sites. Base dimensions: 222mm X 175mm.

Accessories

Rubber eyeshields, glass stage plate, AC adapter, vinyl dust cover, manual. 2-Year Warranty.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EM-22 10X/20X/30X LED Stereo Microscope

    EM-23 10X/20X/40X LED Stereo Microscope
    SKU EM-22EM-23
    Head
    Head Type BinocularBinocular
    Optical Design Greenough ConvergedGreenough Converged
    Ocular Angle 45°45°
    Ocular Tube Diameter 23 mm23 mm
    Diopter Adjustment SingleSingle
    Magnification Type StepStep
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 55mm - 75mm55mm - 75mm
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 1X1X
    Maximum Objective (X) 3X4X
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Barlow Lenses NoneNone
    Min Standard Mag 10X10X
    Max Standard Mag 30X40X
    Includes Eyecups? YesYes
    Eyecups Style Soft RubberSoft Rubber
    Body
    Body Material Mixed Metal/PlasticMixed Metal/Plastic
    Coating Type Anti-Reagent PaintAnti-Reagent Paint
    FocusBlock
    Focus Controls CoarseCoarse
    Focus Mechanism Rack & PinionRack & Pinion
    Stand
    Stand Class PedestalPedestal
    Stand Type Fixed ArmFixed Arm
    Stand Features Beveled Base, PortableBeveled Base, Portable
    Stage Plate Clear GlassClear Glass
    Coating Type (Stand) Anti-Reagent PaintAnti-Reagent Paint
    Illumination
    Illumination Type LEDLED
    Illumination Style Transmitted, IncidentTransmitted, Incident
    Power Supply 120V 240V AC Auto-Switching120V 240V AC Auto-Switching
    Incident Light Type LEDLED
    Incident Light Specification 1W1W
    Incident Light Control VariableVariable
    Transmitted Light Type LEDLED
    Transmitted Light Specification 1W1W
    Transmitted Light Control VariableVariable
    Max Working Distance (standard) 60mm60mm
    Compatibility
    Imaging Compatibility (with adapters) 23mm 23mm
    Accessories
    Included Extras Dust CoverDust Cover
Product Manuals
