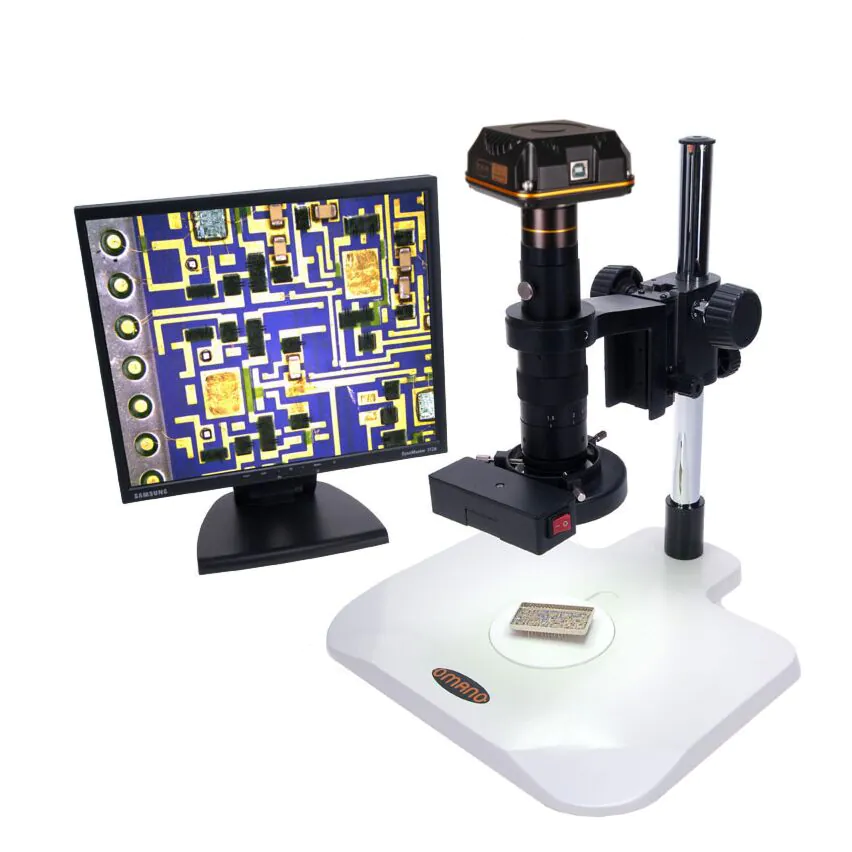

Omano Summit OCS-V3 Digital Inspection System

List Price: $911.00

Starting at: $516.00

SKU: OCS-V3

Availability: In stock

  • Complete digital inspection system
  • Choice of seven OptixCam USB microscope cameras
  • 7x-45x Zoom Microscope Lens
  • Click stop zoom settings for precise magnification
  • 0.5x Barlow lens for over 6.5" working distance
  • 80 LED shadow free ring light
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

OM10K Zoom Microscope Lens   $219.00
V3 Pole Stand   $130.00

Included in Bundle

Lens: OM10K Zoom Microscope Lens

Stand: V3 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Summit OCS-V3 Digital Inspection System
  • Summit OCS-V3 Digital Inspection System lens
  • Summit OCS-V3 Digital Inspection System sensor
  • Omano OCS-V3 Inspection Station microscope
  • Omano OCS-V3 Inspection Station V3 Stand
Description

Summary

The OCS-V3 video inspection system includes a choice of seven Summit series digital microscope cameras (1.3MP, 3.1MP, 5.0MP, 10.0MP, or 14.0MP) combined with a 7x-45x monocular zoom microscope and the ergonomic V3 platform stand. The microscope includes click stops (detents) for accurate magnification levels and a 0.5x auxiliary Barlow lens to improve the working distance to over 6.5".

To round out the complete digital inspection system, we have included a shadow free, 80 LED ring light. Simply capture any QC defects on your computer and email them to relevant parties.

Zoom Lens

The OM10-K monocular zoom microscope is designed for use with a digital microscope. It provides 7x-45x zoom magnification with detent click stops on the zoom range. Detents enable the viewer to return to precisely the same level of magnification as previously used. Simply click back to the desired setting. A 0.5x barlow lens is added to the package in order to double the working distance to over 6.5". By the same token, the barlow lens halves the magnification power.

Microscope Camera

Choose from our OptixCam Summit Series OCS, SK2 or DK2 digital microscope cameras. The new DK2 series features USB3.0 speed and 30FPS frame rates at full resolution, making them ideal for high speed work. These microscope cameras stand out for remarkable color reproduction as well as a large color palette for improved color resolution and sensitivity. Critically, they are free from the smearing and blur that characterizes other systems in this price range. In addition, the included 0.5x reducing lens makes for an image that is significantly closer to that seen through the eyepieces with the naked eye. The OCS series are PC/MAC compatible, while the SK2 series is PC-only.

Robust documentation and measuring software is included with all the OptixCam cameras as well as four different mounts: C/CS Mount, 23mm eyepiece adapter, 30mm and 30.5mm collars so they will fit almost any microscope. Other features include fast refresh rates, auto/ manual exposure and white balance control, full screen live imaging, time lapse photography and user-friendly, image capture.

In short, these microscope cameras offer a well-designed package at an affordable price. We recommend them for any standard photomicrography application where the primary requirements are image capture and documentation.

Software

The included software provides simple, accurate and easy-to-use controls for image capture, notation and measuring. Measuring capabilities include length, width, height, thickness, circumference, radius, angles and dot counts while notations can be easily made on any given image. The software also includes auto white balance and color enhancement among other benefits while image capture and storage is intuitive.

The software is also fully TWAIN and DirectX compatible, allowing simple integration with a wide range of commercial and scientific imaging software. Moreover, both TWAIN and DirectX plug-ins are independent of the main driver, which allows discreet control of the camera for these applications. Accessories include CD-ROM Software disc, 0.5x C-Mount adapter for 23.2mm eyepiece port, USB 2.0 Cable (or USB3.0), Quick Start Guide.

Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included. Included focus block and choice of optional illumination upgrades.

Please note the monitor is not included.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM10K Zoom Microscope Lens
    SKU OM10K
    Head
    Head Type Digital Only
    Magnification Type Zoom
    Ocular Angle Vertical
    Trinocular Standard C-mount
    Trinocular Tube Focusable? Yes
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Ratio 6.4:1
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Head Ring Mount Diameter 50 mm
    Max Working Distance (standard) 55mm
    WD with 0.5x Barlow 90mm
    WD with 2.0x Barlow 30 mm

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    AIR 5.0MP WiFi (PC / MAC) or USB (PC-Only) Digital Microscope Camera

    OCS-HDMI-1080PU 2.0 MP PC / MAC 60 FPS Digital Microscope Camera

    OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOCS-AIROCS-HDMI-1080PUOCS-HDMI-1
    Warranty 1 Year1 Year1 Year1 Year1 Year 1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00001.8lbs2.00002.0000
    Product Length  10"
    Product Width  8.5"
    Product Height  5"
    Backorder ETA  Sep 29, 2017
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch1/2.5 Inch1/2.5 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOS SONY IMX236Aptina AR0330 CMOS Sensor
    Color/Monochrome ColorColorColorColorColorColorColorColor
    Filter  RGB Bayer Pattern
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm 2.8um x 2.8um2.2um x 2.2um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive ProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db  39 dB
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)  1.4v/lux-sec(550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db  69.5 dB
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC  12-bit Parallel, 8-bit R.G.B
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterMechanicalElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, F-Mount, Ocular MountC-MountC-Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels 2.0 megapixels2.0 megapixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822640 x 480, 800 x 600, 1280 x 960, 2592 x 1944 1920X1080i60,1920X1080P30,1280x720P60,640x480P60
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328815/5 fps USB/WiFi60 @ 1920 x 108030 Fps
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 82240/30 fps USB/WiFi 60 FPS
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0WiFi, USB 2.0USB 2.0, HDMISD Card, USB 2.0, HDMI
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, ManualAutomatic, Manual
    Black Balance  Automatic
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewMeasuring Software
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN DirectXDirectX
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered External Power SupplyExternal Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFJPEG, MOVBMPJPEG, MOV
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomaticAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual 0.1ms - 999s0.21~33ms, Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C 20-60 Deg. C0℃~ 40℃
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH 30-80% RH30~80%RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C  -20℃~ 60℃
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CDCase, Software CD/App, Power Adapter, USB Cable
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 8, Windows 7, Windows Vista, Windows XP SP3, Apple iOS, Android 3+Windows 10, Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+N/A, Windows 10, Windows 8, Windows 7
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended
    Certifications CE, ULCE, ULCE, ULCE, ULCE, UL CECE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft) 2.5m (8ft)2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months 6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-MountC-MountC-Mount

  • V3 Pole Stand
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP6W
    Warranty 1 year  1 year
    Product Weight 1lb  4.0 lbs
    Product Length  31.0 cm
    Product Width  29.0 cm
    Product Height  17.5 cm
    Backorder ETA  Sep 22, 2017
    Illumination Type LEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching3W x 2
    Ring Light Power 8W  6W
    Ring Light Control VariableVariableVariableVariable
