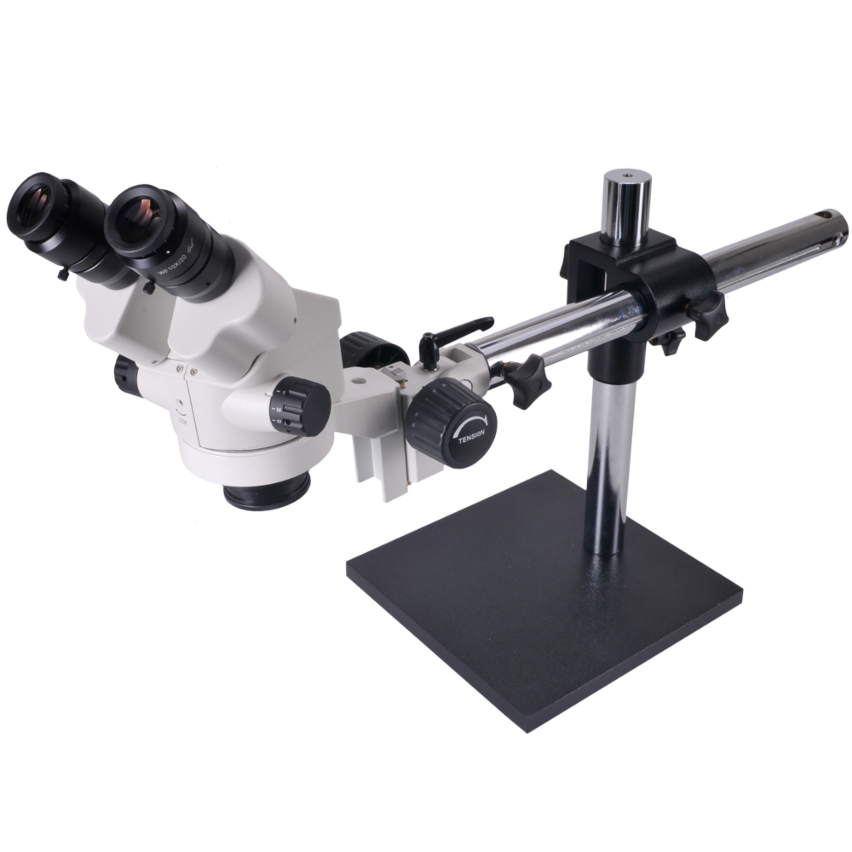

Omano OM2300S-JW11 Zoom Stereo Boom Microscope

List Price: $1,079.00

Starting at: $490.00

SKU: OM2300S-JW11

Availability: In stock

  • Upgraded 7x-45x stereo microscope head
  • Binocular or trinocular
  • Included ring light
  • Workhorse JW11 single arm boom stand
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

JW11 Stereo Boom Stand with 76mm Focus Block   $181.00
  • $65.00
  • $65.00
  • $45.00
  • $65.00
  • $65.00
  • $49.00
  • $49.00
  • $49.00
  • $59.00
  • $59.00
  • $59.00
  • $109.00
  • $109.00
  • $88.00
  • $125.00
  • $187.00
  • $234.00
  • $259.00
  • $775.00
  • $439.00

Included in Bundle

Stand: JW11 Stereo Boom Stand with 76mm Focus Block

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM2300S-JW11 Zoom Stereo Boom Microscope
  • Omano OM2300S-JW11 Zoom Stereo Boom Microscope 1
  • Omano OM2300S-JW11 Zoom Stereo Boom Microscope 2
  • Omano OM2300S-JW11 Zoom Stereo Boom Microscope 3
  • Omano OM2300S-JW11 Zoom Stereo Boom Microscope 4
  • Optional Camera System
Description

Summary

The OM2300S-JW11 is a single arm zoom microscope that offers a heavier and sturdier alternative to the OM2300S-GX4. It combines our most popular OM2300S inspection microscope head with our workhorse, single arm JW11 boom stand. Magnification is a crisp 7x-45x zoom with included ring light. Lifetime Limited Warranty.

Optics

The OM2300S zoom stereo microscope head has become our de facto, 'Go To' head for our industrial inspection customers. Upgraded in 2010, but with no increase in price, the 2300S provides a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary barlow lens.

Three alternative barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. Available in binocular or trinocular format. Trinocular includes a 23.2mm smooth photo tube.

Focus & Illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow-free illumination is included in the price and can be upgraded to higher LED or other light when adding the microscope to you shopping cart.

Stand

The Omano JW11 boom stand has been a workhorse and well-proven Omano stand for over ten years. Strong and affordable, it is a single arm stand with an included 84mm focus block. The horizontal arm extension is 20" including the microscope head. The pole is 17" tall with an effective useable height of 12". The stand weighs 32lbs.

Accessories

Eyecups, dust cover, manual



Stand assembly video:



MAGNIFICATION CHART (values approximate)
BARLOW EYEPIECE (X) WD (mm)
10 15 20
0.5 3.5X 22.5X 5.2X 33.7X 7X 45X 200
0.75 5.2X 33.7X 7.9X 50.6X 10.5X 67.5X 133
1 7X 45X 10.5X 67.5X 14X 90X 100
1.5 10.5X 67.5X 15.7X 101.2X 21X 135X 66
2 14X 90X 21X 135X 28X 180X 50

MIN MAX MIN MAX MIN MAX



FIELD OF VIEW CHART (in mm – values approximate)
BARLOW EYEPIECE (X)
10 15 20
0.5 64 10 42 6.7 32 5
0.75 42 6.7 28 4 21 3
1 32 5 21 3.3 16 2.5
1.5 21 3.3 14 2 10 2
2 16 2.5 10 1.6 8 1.2

MIN MAX MIN MAX MIN MAX

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • JW11 Stereo Boom Stand with 76mm Focus Block
    SKU JW11-76
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Base Width 254 mm
    Base Depth 254 mm
    Post Height 464 mm
    Post Diameter 38 mm
    View Center to Post Distance 527 mm
    Physical Construction Metal Tube
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Articulable
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 76 mm

  • 10 Watt Fluorescent Ring Light

    80 LED Ring Light, Variable Intensity

    8W LED Dual Gooseneck Light

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    3W LED Dual Gooseneck Spot Light

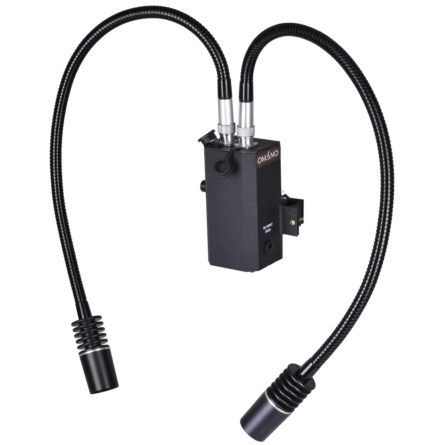

    6W LED Dual Gooseneck Pole Mount Light, DP6W
    SKU OMFR-10WOMLED-80AOMLED-DP8WOMLED-64AOMLED-144AOMLED-SPOTOMLED-DP6W
    Warranty  1 year1 year  1 year1 year
    Product Weight  1lb3.1 lbs  3.1 lbs4.0 lbs
    Product Length  16 cm  16 cm31.0 cm
    Product Width  10 cm  10 cm29.0 cm
    Product Height  8 cm  8 cm17.5 cm
    Power Supply  90V-265V  90V-265V
    Backorder ETA  Dec 5, 2014Nov 28, 2014
    Product Display
    New  Yes  Yes
    Illumination Type FluorescentLEDLEDLEDLEDLEDLED
    Light Specs
    Ring Light Type FluorescentLED LEDLEDLEDLED
    Ring Light Specification  80 LED 90-265V Auto switching90-265V Auto switching 3W x 2
    Ring Light Power 10 Watt8W    6W
    Ring Light Control On/OffVariable VariableVariable Variable
    Bulb Accessory
    Bulb Voltage 110V
    Bulb Wattage 10W

  • 0.5X Barlow Lens for Omano OM2300S

    0.75X Barlow Lens for Omano OM2300S

    1.0X Protective Barlow Lens for Omano OM2300S

    1.5X Barlow Lens for Omano OM2300S

    2.0X Barlow Lens for Omano OM2300S
    SKU OMBL-2300S-05XOMBL-2300S-075XOMBL-2300S-10XOMBL-2300S-15XOMBL-2300S-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300Does not fit OM2300, OM2300-T, OM3300
    Compatible With OM2300SOM2300SOM2300SOM2300SOM2300S
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.5X1.5X2.0X

  • Reticle, 25mm Linear

    Reticle, 25mm Grid

    Reticle, 25mm Cross Linear
    SKU OMR-25LOMR-25GOMR-25CL
    Notes For OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300S

  • 10X Eyepieces For Omano OM2300S (Pair)

    15X Eyepieces For Omano OM2300S (Pair)

    20X Eyepieces For Omano OM2300S (Pair)
    SKU OMEP-2300S-10XOMEP-2300S-15XOMEP-2300S-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per PairPriced per PairPriced per Pair
    Product Weight  4.0000
    Backorder ETA Sep 30, 2014Sep 30, 2014
    Compatibility
    Compatible With OM2300S, OM2300STOM2300S, OM2300STOM2300S, OM2300ST
    Eyepiece Magnification 10x15x20x

  • C-Mount Adapter 0.3X for Omano OM2300ST

    C-Mount Adapter 0.5X for Omano OM2300ST
    SKU OMCM-2300ST-03XOMCM-2300ST-05X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit BinocularDoes not fit Binocular
    Compatible With OM99TOM99T

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera

    CX-3 1080p HDMI Microscope Camera with 10-Inch Display
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14XOM-CX3-HDMI
    Warranty 1 Year1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00002.7
    Product Length  10
    Product Width  7
    Product Height  4
    Product Display
    New  Yes
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/2 Inch1/2 Inch1/2.5 Inch1/2.5 Inch1/2.5 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOSCMOS
    Color/Monochrome ColorColorColorColorColorColor
    Pixel Pitch 5.2 µm x 5.2 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels10 Megapixel, 4096 x 3288 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822
    FPS @ Max Res 15fps @ 1280 x 10248fps @ 2048 x 15365fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 328860fps @ 1280 X 800
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0HDMI
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX
    Camera Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB PoweredExternal Power Supply
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, PNG, TIFF
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CDAC Power adapter, HDMI Cable, Remote Control

    NOTE: The SK2-CA05X focusing adapter is recommended for all microscopes with a conventional smooth 23mm or 30mm viewing tube.
    Supported Operating Systems Linux (kernel 2.6.26+), Macintosh OSX 10.7, Windows XP, Windows Vista, Windows 7, Windows 8Linux (kernel 2.6.26+), Macintosh OSX 10.7, Windows XP, Windows Vista, Windows 7, Windows 8Linux (kernel 2.6.26+), Macintosh OSX 10.7, Windows XP, Windows Vista, Windows 7, Windows 8Linux (kernel 2.6.26+), Macintosh OSX 10.7, Windows XP, Windows Vista, Windows 7, Windows 8Linux (kernel 2.6.26+), Macintosh OSX 10.7, Windows XP, Windows Vista, Windows 7, Windows 8N/A
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed PortN/A
    Certifications CE, ULCE, ULCE, ULCE, ULCE, ULCE
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)2.5m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm DIN, C-Mount23mm DIN, C-Mount23mm DIN, C-Mount23mm DIN, C-Mount23mm DIN, C-Mount23mm DIN, C-Mount

  • 1690 Pelican Composite Microscope Case - Transport
    SKU PC1690
    Compatibility
    Compatible With OM88, OM88T
