Microscope Summary

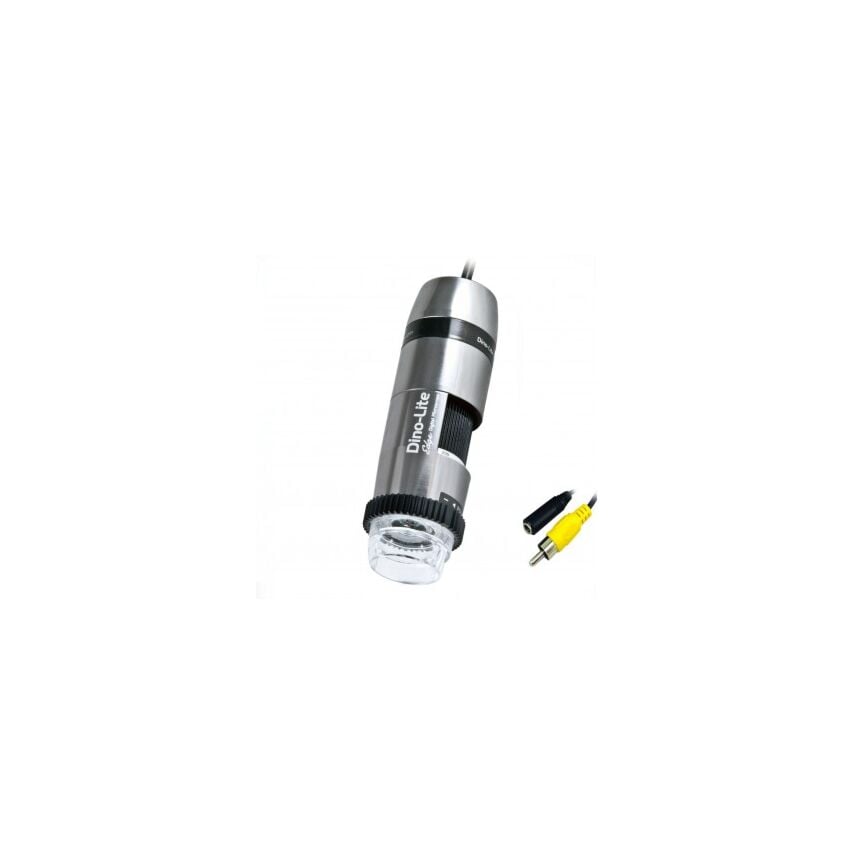

The new Dino-Lite Edge AM45212MNZ digital handheld microscope offers 20x-220x variable magnification with output to TV or Direct-to-Monitor. A new 960H sensor delivers 960 x 480 resolution and like all Edge series microscopes a range of improvements include polarization to suppress reflected glare, 8 white LEDs, all encased in a tough aluminum alloy shell with a useful magnification scroll lock. 2 Year warranty.

Microscope Features

• 20x-220x Variable magnification
• 960 x 480 Resolution @ 30 FPS
• TV/Analog connection
• Extended Working Distance
• Magnification Scroll Lock
• Aluminum Alloy casing
• Polarization
• No PC required
• Recommended for professional use

Stands

Dino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.

• 	Edge AM5212MNZ 20X-220X Metal Shell TV Output Polarizing Handheld Microscope
  General
  Brand	Dino-Lite
  SKU	AM5212MNZ
  Notes	Same as AM412N w/ Polarizer feature
  Product Weight	0.3500
  Product Length	4 in
  Product Width	1.26 in
  Dino-Lite
  Dino-Lite Series	Edge
  Special Features	Metal Housing, Polarizing, TV Output
  Body Material	All-Metal
  Magnification Range	20X-220X
  Magnification Type	Distance Variable
  Minimum Working Distance	Full Contact
  Illumination Type	LED
  Illumination Output	White Light
  Focus Controls	Coarse
  Focus Mechanism	Rotary
  Resolution	NTSC 480 Line, 960 x 480 pixels
  Camera Interface	RCA Composite Video
  Power Source	External Power Supply
  Head Type	Digital Only
  Sensor Type	CMOS
  FPS @ Max Res	30
  FPS @ Min Res	30
  Exposure Control	Automatic
  White Balance	Automatic
  Supported Operating Systems	N/A
  System Requirements	N/A
  Certifications	CE, RoHS
  Camera Warranty	2 Years

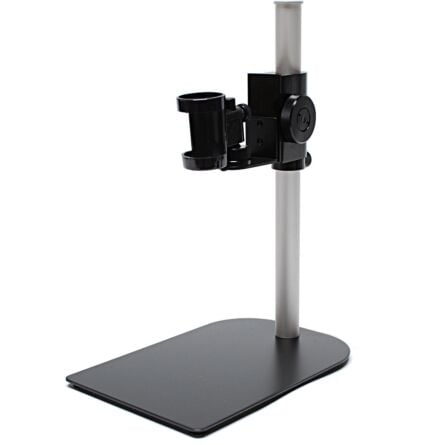

• 	MS22B Articulating Stand (Black)	MS35B Versatile Table Top Stand with 10" WD	MS35BE ESD-Safe Versatile Table Top Stand with 10" WD	MS36B Rigid Table Top Boom Stand	MSRK-10A Table Top Precise Stand with Quick Release
  General
  Brand	Dino-Lite	Dino-Lite	Dino-Lite	Dino-Lite	Dino-Lite
  SKU	MS22B	MS35B	MS35BE	MS36B	MSRK-10A
  Feed - Title	Digital Microscope Stand Dino-Lite MS22B Articulating Stand (Black)	Digital Microscope Stand Dino-Lite MS35B Versatile Table Top Stand with 10" WD	Digital Microscope Stand Dino-Lite MS35BE ESD-Safe Versatile Table Top Stand with 10" WD	Digital Microscope Stand Dino-Lite MS36B Rigid Table Top Boom Stand
  Feed - Description	The Dino-Lite AM4115T-RFYW offers 10x~50x and 220x variable magnification and includes 7 YELLOW Fluorescing LED illumination (610nm). It also presents measuring software, a useful scroll lock feature that locks your desired magnification into place and a touch trigger mechanism for taking still pictures. It is PC, Mac and UVC compatible.Red Fluorescence LightingThe AM4115T-RFYW features one white LED and 7 YELLOW LEDs with an excitation wavelength of 575 nm and an emission filter wavelength of 610nm, making it ideal for observing red fluorescing tissues in mCherry and microangiography analysis on specimens for which is has become a popular choice. It is equipped with a new sensor featuring YuY2 codec which uses less compression for a higher quality image and more accurate white balance compensation.AM4115T Series FeaturesThe AM4115T family of Dino-Lite microscopes all feature 10x~50x, and 220x (10x~92x for the 'L' series) variable magnification, 8-LED illumination and a tough ABS plastic shell encasing a 1.3MP color CMOS sensor. The series offers MicroTouch image capture, video frame rates up to 30 fps and the ability to save files in BMP, JPG and AVI format. Professional-quality imaging results can be viewed on any computer via high speed USB 2.0 output and the included DinoCapture (for PC) or DinoXcope (for MAC) software. In addition, the AM4115T series also features a second-generation housing with a smoother focus wheel movement and a handy thumb wheel scroll lock.	Microscope The AM7915MZTL is the newly-introduced, long-working-distance flagship of the Edge series lineup, with 5x-140x continuous zoom magnification, Extended Depth of Field, Extended Dynamic Range and Automatic Magnification Readout. This new model also showcases Flexible-LED-Controlled illumination. From within the software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels of intensity adjustment capability. Standard features include 5.0 MP resolution, adjustable polarized light and a tough aluminum shell for harsh operating environments. The AM7915MZTL also includes measuring ability and the useful MicroTouch image capture button, magnification scroll lock and USB 2.0 output. Still and live video capture is standard. The new sensor offers greatly enhanced image quality and sharpness with less aberration and vignetting while another innovation is adjustable illumination. All Edge Series microscopes include six interchangeable nozzle caps for greater flexibility including: open cap, dust cap, diffuser cap, Extended Working Distance cap, oblique lighting cap and contact cap. The microscope is PC-only, with included measuring software and a 2 year warranty. Microscope Features State-of-the-art 5.0MP color imaging sensorExtended Depth of Field for vertical imagingExtended Dynamic Range for reduced-glare imagingAutomatic Magnification Readout5x-140x full-range zoom magnificationFlexible-LED-Control (FLC)Built-in adjustable polarization ringAluminum alloy casing for industrial protectionNot Mac CompatibleUSB 2.0Recommended for professional use2 Year WarrantyAccessories: Software CD, Calibration Slide, Interchangeable Nozzles, Carry PouchStandsDino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.SoftwareThis Dino-Lite microscope includes software for PC only (DinoCapture 2.0) and is compatible through the latest version of Windows. The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance.FREE DinoVision Software There is also additional, free software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. Dino-Lite Edge AM7915 Series HighlightsDino-Lite 5.0MP Edge Series	Microscope The AM5018MZTL features a finished aluminum alloy shell encasing a color CMOS sensor with HDMI output at 720p resolution and fast refresh rates. The AM5018MZTL's MicroTouch will freeze the live video to examine details with a simple tap for convenient inspection. The LEDs can also be switched off by holding the same MicroTouch button for two seconds. The enhanced working distance is very helpful when working with the material under observation. Built-in polarization reduces glare and hot spots with a convenient twist. Coupled with direct output to an HDMI or LCD display device, this makes for an ideal tool for live imaging in hazardous environments like PCB assembly lines or machine tool fabrication labs. Microscope Features Premier Series with latest sensor technology10x-90x Variable magnificationExtended Working DistanceHigh Definition image feed direct to HDMI monitorHD 720P 1280x720 Output ResolutionVariable PolarizationLED on/off with MicroTouchRecommended for professional use	Microscope The AM7915MZTL is the newly-introduced, long-working-distance flagship of the Edge series lineup, with 5x-140x continuous zoom magnification, Extended Depth of Field, Extended Dynamic Range and Automatic Magnification Readout. This new model also showcases Flexible-LED-Controlled illumination. From within the software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels of intensity adjustment capability. Standard features include 5.0 MP resolution, adjustable polarized light and a tough aluminum shell for harsh operating environments. The AM7915MZTL also includes measuring ability and the useful MicroTouch image capture button, magnification scroll lock and USB 2.0 output. Still and live video capture is standard. The new sensor offers greatly enhanced image quality and sharpness with less aberration and vignetting while another innovation is adjustable illumination. All Edge Series microscopes include six interchangeable nozzle caps for greater flexibility including: open cap, dust cap, diffuser cap, Extended Working Distance cap, oblique lighting cap and contact cap. The microscope is PC-only, with included measuring software and a 2 year warranty. Microscope Features State-of-the-art 5.0MP color imaging sensorExtended Depth of Field for vertical imagingExtended Dynamic Range for reduced-glare imagingAutomatic Magnification Readout5x-140x full-range zoom magnificationFlexible-LED-Control (FLC)Built-in adjustable polarization ringAluminum alloy casing for industrial protectionNot Mac CompatibleUSB 2.0Recommended for professional use2 Year WarrantyAccessories: Software CD, Calibration Slide, Interchangeable Nozzles, Carry PouchStandsDino-Lite offer a wide range of stands, which are recommended for all but the lowest magnification levels. For your convenience, we have selected some of the more popular stands for this microscope. Simply select one above which are offered as optional items above.SoftwareThis Dino-Lite microscope includes software for PC only (DinoCapture 2.0) and is compatible through the latest version of Windows. The software is robust and reliable with some great features as follows: image capture, storage and email, live and time lapse video (up to 30fps), annotation, geotagging, full screen capability, auto and manual exposure control, picture within picture zoom (magnifier) and more. Above all the color resolution is excellent due to fixed white-balance calibration which is set at the factory using a jeweler's color balance.FREE DinoVision Software There is also additional, free software available for download: DinoVision enables easy image drag-and-drop, split, overlay and comparison, which has proven useful for Forensic Scientists and more sophisticated users where image manipulation is important. Dino-Lite Edge AM7915 Series HighlightsDino-Lite 5.0MP Edge Series
  Feed - Custom Label 1	<100	<100	100-500	100-500
  Best Seller	Yes	Yes		Yes
  Stand Features	Portable	Portable		Extended Reach, Heavy Duty, Portable	Crank Adjustment, Portable
  Base Width	7	5	5	5	5
  Base Depth	2.3	8	8	8	8
  Post Height	8.4	12	12	12	8
  View Center to Post Distance		10
  Physical Construction		Tabletop Boom
