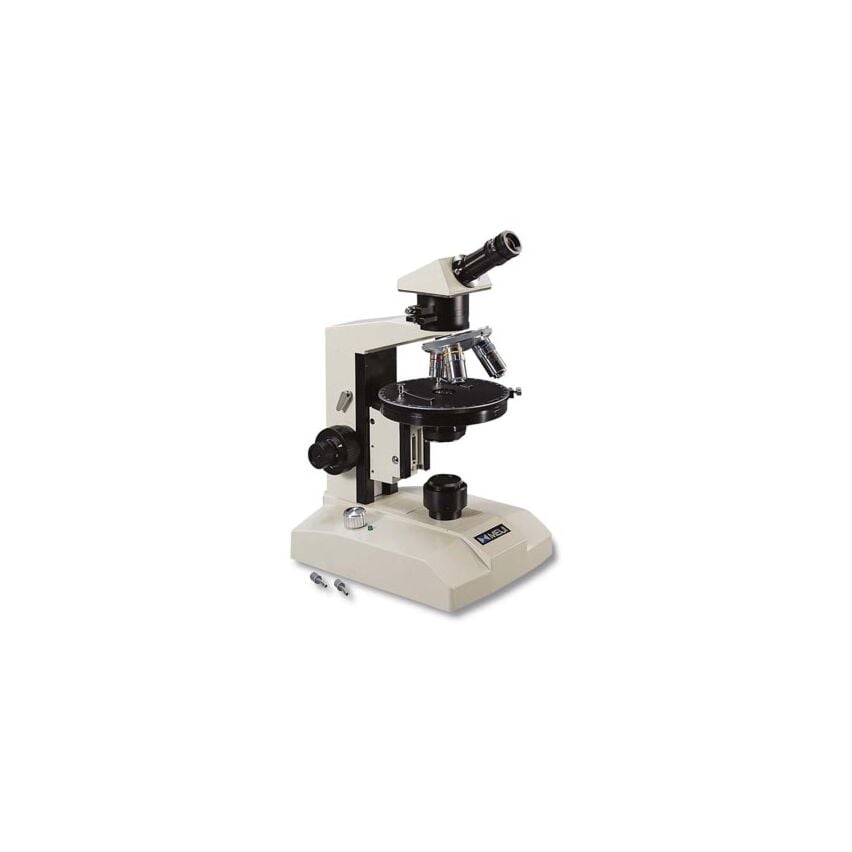

Meiji Techno ML 9000 Series Polarizing Microscopes

List Price: $5,200.00

Starting at: $4,695.00

SKU: ML9000

Availability: In stock

  • Cost effective polarizing microscopes
  • 3 Semi-Plan objectives
  • Rotatable polarizer and stage
  • Monocular, binocular or trinocular
  • 30W Koehler Halogen illumination
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji ML 9000 Series Monocular Polarizing Microscopes
  • Meiji ML 9000 Series Binocular Polarizing Microscopes
  • meiji ML 9000 Series Trinocular Polarizing Microscopes
Description

Summary

Meiji's ML9000 series of polarizing microscopes offer a more cost effective alternative to the newer infinity corrected optics of the MT9000 series. The specific design of the Bertrand Lens enables extra bright and high interference figures, making them ideal for orthoscopic and conoscopic observation. Available in monocular, binocular or trinocular, they include three semi plan objectives, rotatable polarizer and stage and Koehler 30W halogen illumination. Lifetime Limited Warranty.

Optics

Monocular, binocular or trinocular viewing heads are available in the ML9000 series, all inclined at 30° for viewing comfort. They employ a high transmission prism system for higher quality optics. The binocular and trinocular heads include a dovetail slide for interpupillary adjustments and a single diopter for individual eye focusing. Eyepiece(s) are HWF10x with one slotted for orientation of a cross-line eyepiece (inc. monocular). Three strain free plan polarizing objecetive lenses are included: 4x, 10x, 40xS set in a ball-bearing mounted, quadruple nosepiece. Three objectives are centerable, one is fixed.

The trinocular head includes a vertical phototube with an 80%/20% beam-splitter. Please note that you will require an adapter appropriate for your camera

Polarizer

The polarizer is in a swing-out click/clamp, fully rotatable with click stops at 0° and 90°. Both the Analyzer and Bertrand Lens are in sliding mounts with E-W insertion. The Bertrand Lens has a field limiting stop. The slide opening in the limb accepts DIN standard 20mm x 6mm compensators and a Mica 1/4 wave plate and first order red plate are included. The circular stage has a ball-bearing mount for smooth operation, graduated with vernier and specimen clips. Rack and pinion focus includes dual sided coaxial coarse/fine focus controls with rack stop.

Condenser & illumination

The condenser is an Abbe 1.25 N.A with iris diaphragm, filter holder and blue filter. Koehler Illumination is pre-centered 115V (or 220V) 30W halogen.

Accessories

Manual, dust cover, blue filter
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • ML9100 Monocular

    ML9200 Binocular

    ML9300 Trinocular
    SKU ML9100ML9200ML9300
    Product Weight 17.000017.000017.0000
    Product Length 360 mm360 mm360 mm
    Product Width 195 mm195 mm195 mm
    Product Height 440 mm440 mm440 mm
    System
    System Type Brightfield, PolarizingBrightfield, PolarizingBrightfield, Polarizing
    Optical Design DIN 160mmDIN 160mmDIN 160mm
    Head
    Head Type MonocularBinocularTrinocular
    Ocular Angle 30°30°30°
    Diopter Adjustment DualDualDual
    Interpupillary Adjustment Linear SlidingLinear SlidingLinear Sliding
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm52 – 72 mm
    Trinocular Type Switchable Beam-SplitSwitchable Beam-SplitSwitchable Beam-Split
    Trinocular Standard 23mm DIN23mm DIN23mm DIN
    View Orientation Inverted ViewInverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm23 mm
    Body
    Nosepiece Orientation ReversedReversedReversed
    Nosepiece Style Quintuple (5)Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYes
    Stage Type Mechanical XYMechanical XYMechanical XY
    Stage Features Fingertip Controls, Slide Holder (spring-loaded)Fingertip Controls, Slide Holder (spring-loaded)Fingertip Controls, Slide Holder (spring-loaded)
    Configuration
    Includes Eyepieces? YesYesYes
    Included Eyepiece Quantity 222
    Included Eyepieces (X) 10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 40X40X40X
    Max Standard Mag 1000X1000X1000X
    Included Objectives (Qty) 444
    Objective Lens Semi-PlanSemi-PlanSemi-Plan
    Included Objective Types Phase ContrastPhase ContrastPhase Contrast
    Condenser
    Condenser Type Zernike PhaseZernike PhaseZernike Phase
    Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm30 mm
    Illumination
    Illumination Type HalogenHalogenHalogen
    Illumination Style TransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohler
    Collector Features Field DiaphragmField DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogenHalogen
    Transmitted Light Specification 12V 50W12V 50W12V 50W
    Transmitted Light Control VariableVariableVariable
    Power Supply 120V AC120V AC120V AC
    Fuse 3A3A3A
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, Open C-Mount (no lens)
    Accessories
    Included Extras Dust CoverDust CoverDust Cover
