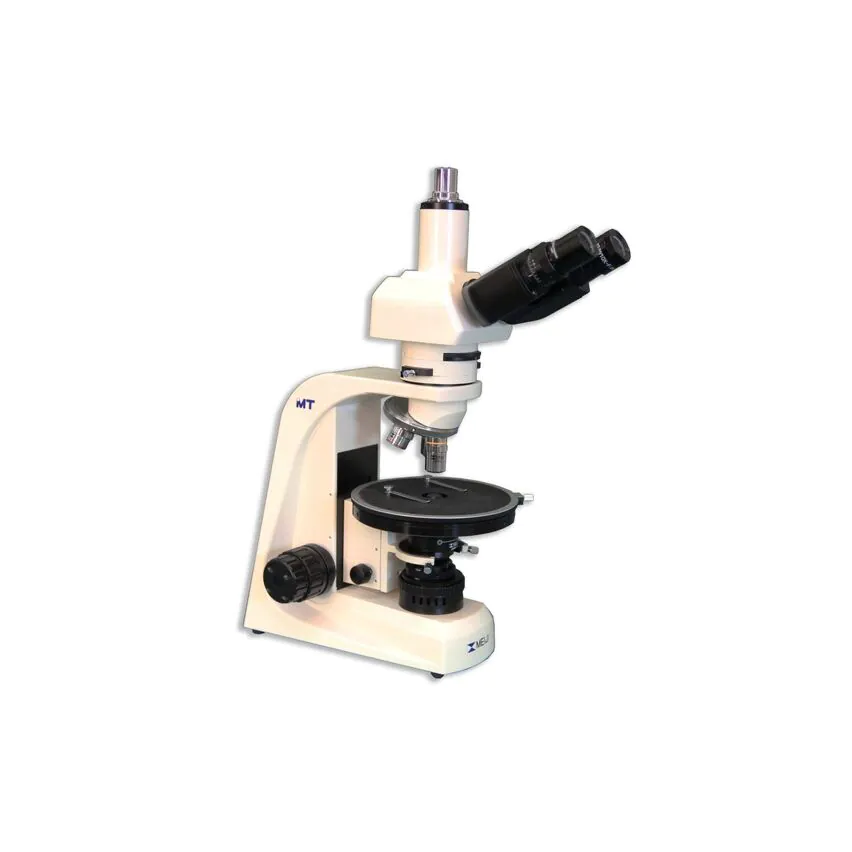

Meiji Techno MT9300L LED Trinocular Polarizing Microscope
SKU:
MT9300L
In stock
You pay: $6,900.00
Free Shipping,
30 Day Money Back Guarantee
- Versatile Applications: Engineered for forensic analysis, crystallography, geology, and material science, making it ideal for identifying both isotropic and anisotropic materials.
- High-Performance Optics: Features strain-free Infinity Corrected objectives and redesigned polarizing condensers to deliver unmatched image contrast and exceptionally crisp, flat fields of view.
- Ergonomic Design: Modular system with strategically placed controls to ensure stress-free operation, increased laboratory efficiency, and maximum productivity during extended use.
- Advanced Illumination & Control: Equipped with 6V 30W Koehler Halogen or LED illumination, an intermediate tube with a built-in analyzer, and a rotatable polarizer with a full-wave plate for precise investigative work.
MT9300L Trinocular LED Polarizing Microscope
The MT9300L is a professional-grade investigative tool designed for the analysis of isotropic and anisotropic materials. Featuring the ICOS Infinity Corrected Optical System and strain-free components, it is an essential instrument for geology, petrology, forensics, and industrial quality control.
Key Features & Components
| Optical System | Strain-free Infinity Corrected (ICOS) with Abbe Condenser (N.A. 1.25). |
| Viewing Head | MA953 Siedentopf-type Trinocular; 30° incline; 80/20 beam splitter for imaging. |
| Rotating Stage | 175mm diameter, ceramic coated; 360° graduation with 0.1° vernier reading. |
| Illumination | 3W LED (5500K) transmitted Koehler system for cool, consistent lighting. |
| Focusing | Coaxial coarse and fine controls; 2-micron graduation with tension adjustment. |
Included Objectives (Strain-Free Plan)
- 4X: N.A. 0.10, W.D. 25.89mm
- 10X: N.A. 0.25, W.D. 7.3mm
- 40XS: N.A. 0.65, W.D. 0.72mm
Included Accessories
- Eyepieces: KHW10X Widefield (Standard) & Focusing 10X with Cross-line.
- Compensators: 1/4 Wave-length (Mica) & First Order Red (Gypsum).
- Analyzer: Sliding mount for MT9000 Series.
- Filters: Blue clear filter (29.8mm).
- Maintenance: Meiji Techno Dust Cover & Centering Screws.
- Resources: Interference Color Chart & Instruction Manual.
Product & Shipping Information
Manufacturing: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Weight: 35.0 lbs (Trinocular Configuration)
Dimensions: 263mm(D) x 510mm(H) x 212mm(W)
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
