Dino-Lite Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope

Starting at: $669.00

SKU: TMS-AM5216ZT

Availability: In stock

  • Edge Series with latest sensor technology
  • 20x-220x full-span Variable magnification
  • Fast 60 FPS video feed direct to VGA monitor
  • 1024 x 768 Resolution
  • 15-Pin VGA connection
  • Variable Polarization
  • LED on/off with MicroTouch
  • Recommended for professional use
Select package options

Click on to learn more about the option * signifies required items

Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope   $669.00
  • $39.00
  • $39.00
  • $99.00
  • $129.00
  • $169.00
  • $269.00

Included in Bundle

Microscope: Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

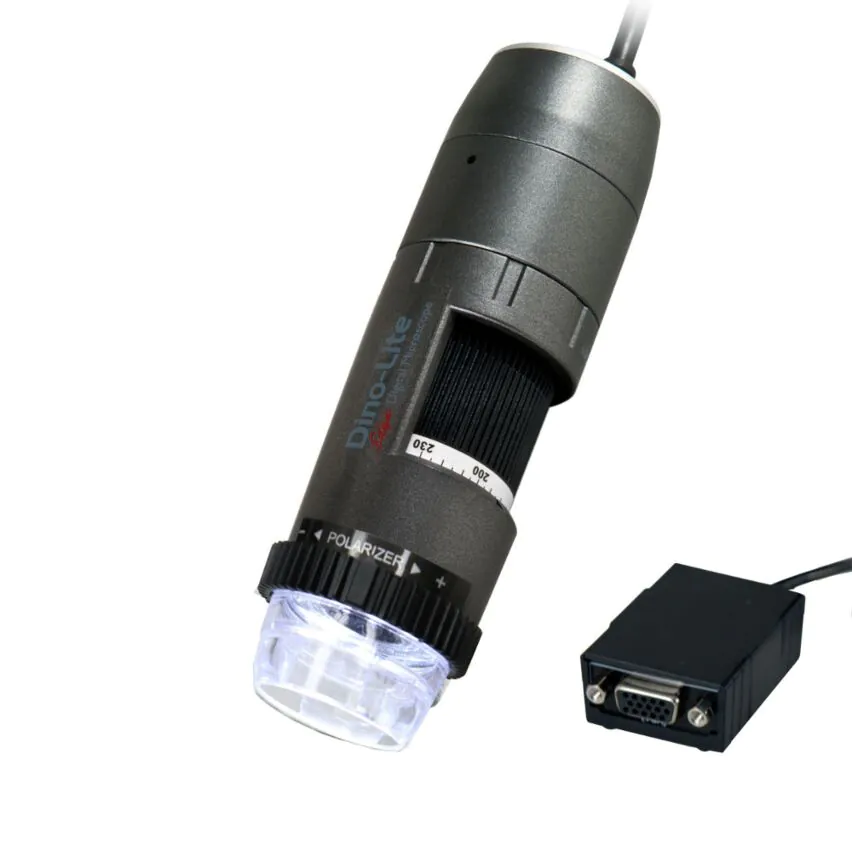

  • Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope
  • Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope closeup
  • Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope side 2
  • Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope side 1
  • Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope side 3
Description

Microscope Summary

The Dino-Lite Edge Series AM5216ZT handheld digital microscope offers 20x-220x zoom magnification and 960x480 resolution output to TV or direct-to-monitor. Standard features include 8 LEDs and adjustable polarizing, a useful MicroTouch trigger button and upgraded housing. Maximum refresh rate is 60fps for high quality live video.

Microscope Features

  • 10x~140x Variable magnification
  • 960 x 480 Resolution
  • TV/Analog Output
  • 8 Built-in LEDs
  • Polarizing ring
  • No PC required
  • 2 Year Warranty
  • Accessories: AC Adapter, VGA Cable, Carry Pouch
  • Recommended for professional use
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Edge AM5216ZT 20x~220x Polarizing VGA 60 FPS Handheld Digital Microscope
    SKU AM5216ZT
    Notes
    Product Weight 0.3500
    Product Length 4 in
    Product Width 1.26 in
    Dino-Lite
    Dino-Lite Series Edge
    Special Features MicroTouch Trigger, Polarizing, TV Output
    Body Material High-Impact Plastic
    Magnification Range 20X-220X
    Magnification Type Distance Variable
    Minimum Working Distance Full Contact
    Illumination Type LED
    Illumination Output White Light
    Focus Controls Coarse
    Focus Mechanism Rotary
    Resolution 0.9 Megapixel
    Camera Interface VGA 15-Pin DSUB
    Power Source External Power Supply
    Head Type Digital Only
    Sensor Type CMOS
    FPS @ Max Res 60 fps
    FPS @ Min Res 60 fps
    Exposure Control Automatic, Manual
    White Balance Automatic, Manual
    Software Included DinoCapture (Win), DinoXcope (Mac)
    Driver API Compatibility DirectX
    File Formats BMP, JPEG, PNG
    Supported Operating Systems N/A
    System Requirements N/A
    Certifications CE, RoHS
    Cable Length 6 ft
    Camera Warranty 2 Years
Magnification Chart
AM4115 / 4515 / 4815ZT
 MAG 20X 40X 60X 90X / 130X 180X

200X

220X

 WD (mm)  52 mm 13.4 mm 2.2 mm 4.5 mm 0.5 mm 2.4 mm 4.4 mm
 FOV (mm) 19.5 x 15.6  9.8 x 7.8  6.5 x 5.2  4.3 x 3.5  2.2 x 1.7  1.9 x 1.6 1.8 x 1.4
 WD (inch)  2.0 in 0.53 in 0.08 in 0.17 in 0.02 in 0.09 in 0.17 in
 FOV (inch)  0.8 x 0.6  0.4 x 0.3  0.3 x 0.2  0.2 x 0.1  0.09 x 0.07  0.08 x 0.06  0.07 x 0.05
 DOF (mm)  2.5 mm 1.5 mm 1.0 mm     0.10 mm
