Dino-Lite Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Digital Microscope

Starting at: $529.00

SKU: TMS-AM5212NZT

Availability: In stock

  • 20x ~ 220x Variable magnification
  • 960 x 480 Resolution @ 30 FPS
  • TV/Analog connection
  • Polarization
  • No PC required
  • Recommended for professional use

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope   $529.00
  • $39.00
  • $39.00
  • $99.00
  • $129.00
  • $169.00
  • $269.00

Included in Bundle

Microscope: Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope
  • Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope sample
  • Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope sample 2
  • Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope sample 3
  • Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope sample 4
Description

Microscope Summary

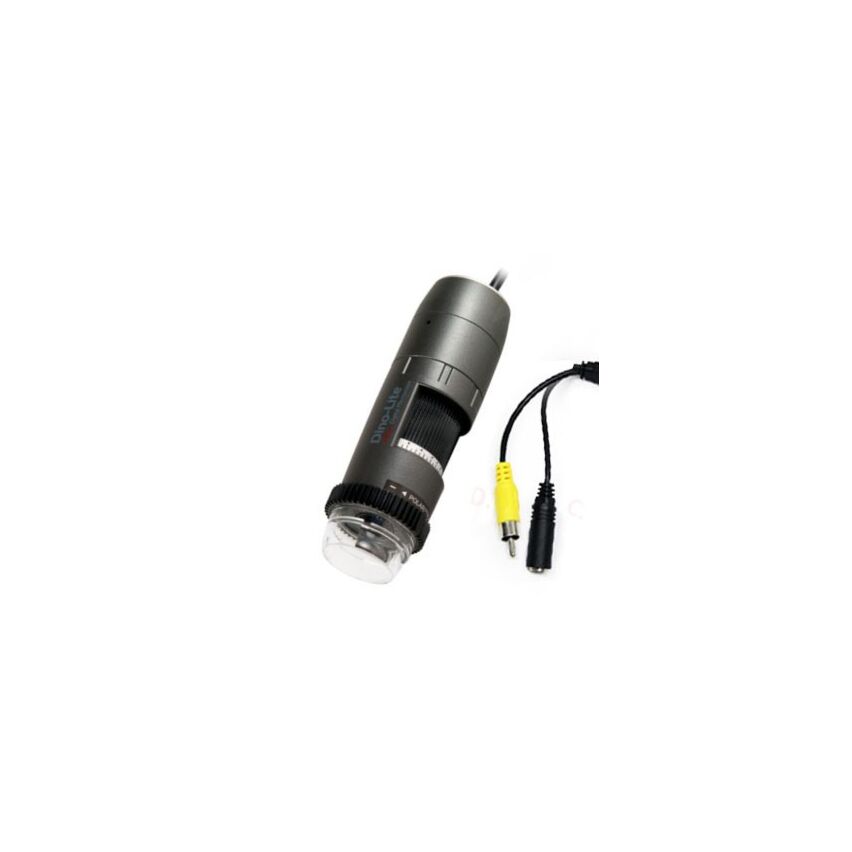

The Dino-Lite AM45212NZT handheld digital microscope offers 20x-220x magnification and brings "Edge Series" technology to their popular TV/Direct-to-monitor lineup with 960x480 line resolution. Standard features include 8 LEDs and adjustable polarizing, a useful MicroTouch trigger button and upgraded housing.

Microscope Features

  • 20x ~ 220x Variable magnification
  • 960 x 480 Resolution @ 30 FPS
  • TV/Analog Output
  • 8 Built-in LEDs
  • Polarizing ring
  • No PC required
  • 2 Year Warranty
  • Accessories: Carry Pouch
  • Recommended for professional use
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • Edge AM5212NZT 20X-220X TV Output Polarizing Handheld Analog Microscope
    SKU AM5212NZT
    Notes Same as AM412N w/ Polarizer feature
    Product Weight 0.3500
    Product Length 4 in
    Product Width 1.26 in
    Dino-Lite
    Dino-Lite Series Edge
    Special Features MicroTouch Trigger, Polarizing, TV Output
    Body Material High-Impact Plastic
    Magnification Range 10x–50x, 220x
    Magnification Type Distance Variable
    Minimum Working Distance Full Contact
    Illumination Type LED
    Illumination Output White Light
    Focus Controls Coarse
    Focus Mechanism Rotary
    Resolution NTSC 480 Line, 960 x 480 pixels
    Camera Interface RCA Composite Video
    Power Source External Power Supply
    Head Type Digital Only
    Sensor Type CMOS
    FPS @ Max Res 30
    FPS @ Min Res 30
    Exposure Control Automatic
    White Balance Automatic
    Supported Operating Systems N/A
    System Requirements N/A
    Certifications CE, RoHS
    Camera Warranty 2 Years
Product Manuals
Dino-Lite EDOF Guide
