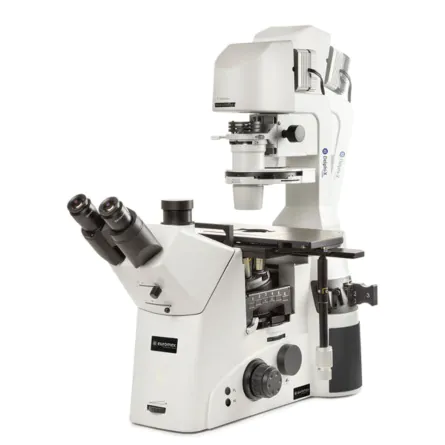

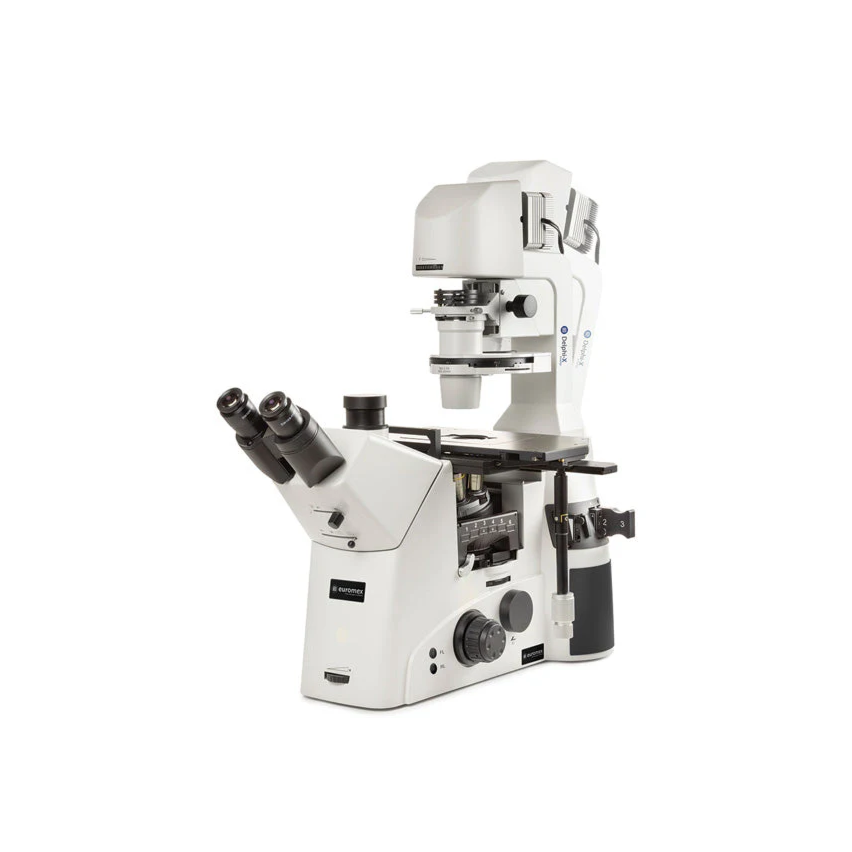

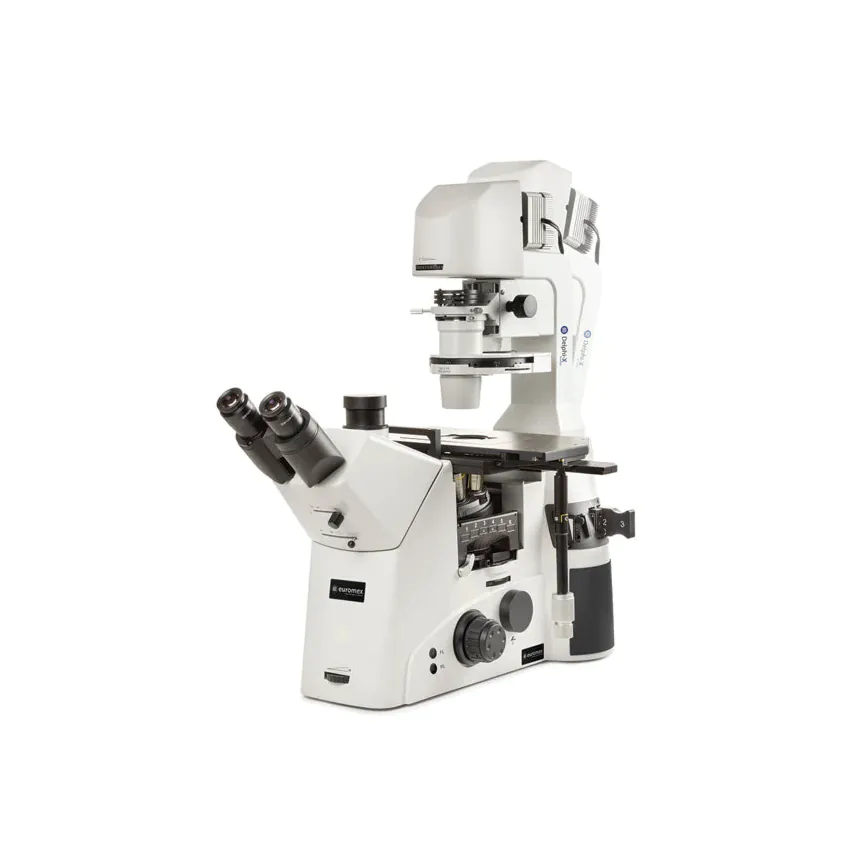

Euromex Delphi-X Inverso Inverted Trinocular Microscope EDI-1053‑PLPHFi
SKU:
EDI-1053‑PLPHFi
In stock
You pay: $36,013.70
Free Shipping,
30 Day Money Back Guarantee
- Professional Grade Performance: Specifically designed for demanding applications involving living cell cultures and complex stained samples.
- Dual Configuration Options: Available in specialized setups for both Fluorescence applications and Phase Contrast with DIC (Differential Interference Contrast).
- Super Contrast Optics: Equipped with semi-apochromatic objectives that deliver exceptional clarity and color correction.
- Precise Sample Compatibility: Features a collar adjustment ring to ensure perfect observation through 1.2 mm thick Petri dishes or flasks.
Optical & Mechanical Specifications
| Eyepieces | Pair of DIN HWF plan 10x/25 mm or 10x/22 mm with diopter adjustment (optional). |
|---|---|
| Trinocular Head | 45° inclined tubes; Interpupillary distance 47–78 mm. Light path selector: 100-0, 80/20, and 0/100 positions. |
| Nosepiece | Revolving sextuple nosepiece on ball-bearings; supports DIC prisms for 10x, 20x, and 40x. |
| Objectives |
Fluarex™ PLPHFi Infinity Semi-Apo LWD: 10x/0.30, 20x/0.45, S40x/0.60. Features: Collar adjustment (0–1.2 mm) on 20x/40x/60x; Low-absorption glass; Anti-fungus/Anti-reflection coatings. |
| Stage | 340 x 230 mm with coaxial mechanical 130 x 85 mm X-Y stage. Includes inserts for 38mm/54mm dishes, slides, Multiwell, and Teraski plates. |
| Condenser | Rotating N.A. 0.55 (6 positions); 26mm working distance. Includes phase contrast annuli and tilts back for large vessel access. |
| Mag Changer | Built-in 1.5x lens for intermediary magnification (e.g., 20x becomes 30x) without changing objectives. |
| Focusing | Coaxial 10 mm coarse and fine adjustments; 1 μm precision with friction adjustment. |
| Illumination | Transmitted 5W LED or 100W Halogen; Internal 100-240V power supply. |
ICSI Set (Intracytoplasmic Sperm Injection)
A complete manual system designed for both training and professional precision. Features 3D Hydraulic manipulation joysticks for smooth movement and a maintenance-free pneumatic air injector.
- Movement Range: X/Y/Z: 20 mm each (1 mm per complete turn).
- Adjustable Angle: Micropipette holder adjusts between 20° and 40°.
- Stability: Fixing knob reduces vibration for precise sperm handling.
- Certification: Medical device CE mark.
Temperature Control Systems
| Model AE.8010 | 2-Channel Touchscreen: Data logging, password protection, self-calibration routines, and 4.3’’ interface. Accuracy: ± 0.3°C. |
|---|---|
| Model AE.8015 | Economic Single-Channel: Compact version with LCD display and push-button controls. Reliable performance for focused applications. |
Package Contents
- Metal inserts (Ø 38mm dish, Ø 54mm dish/slides, Multiwell, Teraski plates)
- Blue and green interference Ø 38 mm filters
- Alignment telescope & Green filter
- Power cord, Dust cover, and User manual
- ICSI Set includes: 2 Joysticks, 2 Air injectors, Pipette setup mechanisms, and Carry case.
| Brand | Euromex |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
