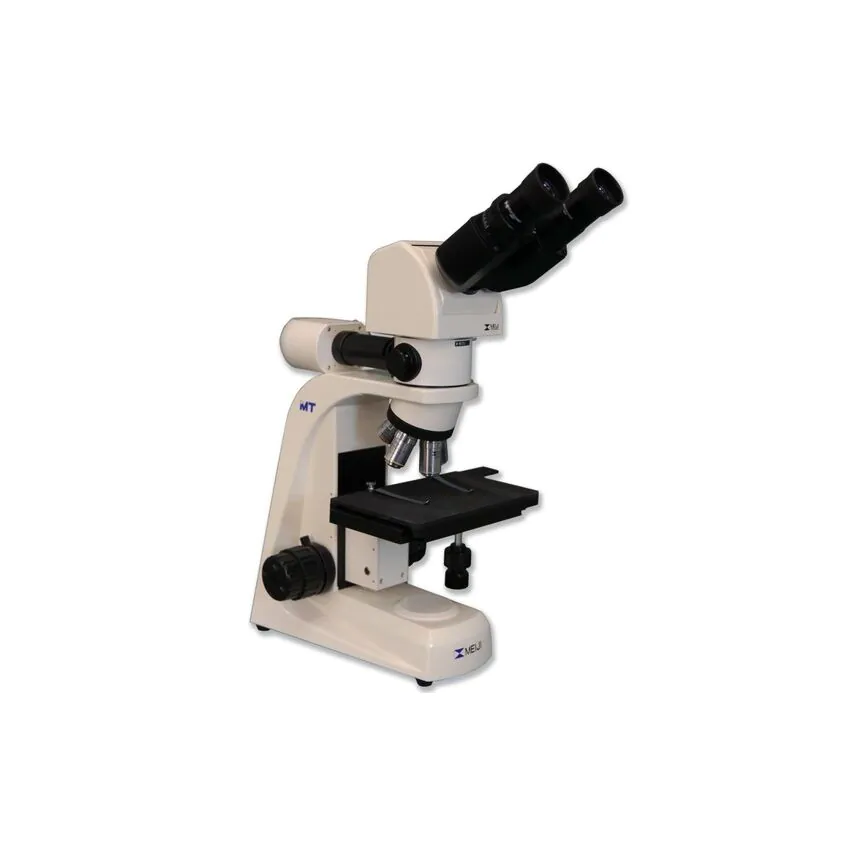

Meiji Techno MT7000EH Metallurgical Ergonomic Binocular Upright Brightfield Compound Microscope with Infinity Corrected Plan EPI 5X, 10X, 20X, 50X and Vertical Koehler 6V 30W Halogen Incident Illuminator
SKU:
MT7000EH
In stock
You pay: $7,080.00
Free Shipping,
30 Day Money Back Guarantee
- Advanced ICOS™ Optics: Utilizes Meiji Techno’s Infinity Corrected Optical System with Plan Epi objectives (5x, 10x, 20x, 50x) to provide sharp, high-contrast imaging for precise metallography and failure analysis.
- Ergonomic & Durable Design: Features a comfortable Siedentopf viewing head and a robust, Japanese-built frame with a ceramic-coated stage for smooth X-Y travel and long-term stability.
- Optimized Halogen Illumination: Equipped with a powerful 6V/30W vertical Koehler illuminator, specifically designed for superior reflected-light brightfield performance on polished metal surfaces.
- Versatile & Expandable: Built with CAD-designed precision and ergonomically positioned controls, the system supports optional upgrades for trinocular digital imaging and specialized ergonomic viewing heads.
| Model | Head Type | Illumination | Eyepieces | Objectives (Plan Epi) | Stage |
|---|---|---|---|---|---|
| MT7000H | Binocular | 30W Vertical Koehler | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7000EH | Ergonomic Binocular | 30W Vertical Koehler | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7100H | Trinocular | 30W Vertical Koehler | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7100EH | Ergonomic Binocular | 30W Vertical Koehler | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7000L | Binocular | LED Illumination | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7000EL | Ergonomic Binocular | LED Illumination | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7100L | Trinocular | LED Illumination | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| MT7100EL | Ergonomic Binocular | LED Illumination | SWH10x FN22 | 5x, 10x, 20x, 50x | Fixed flat-top (L/R) |
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
