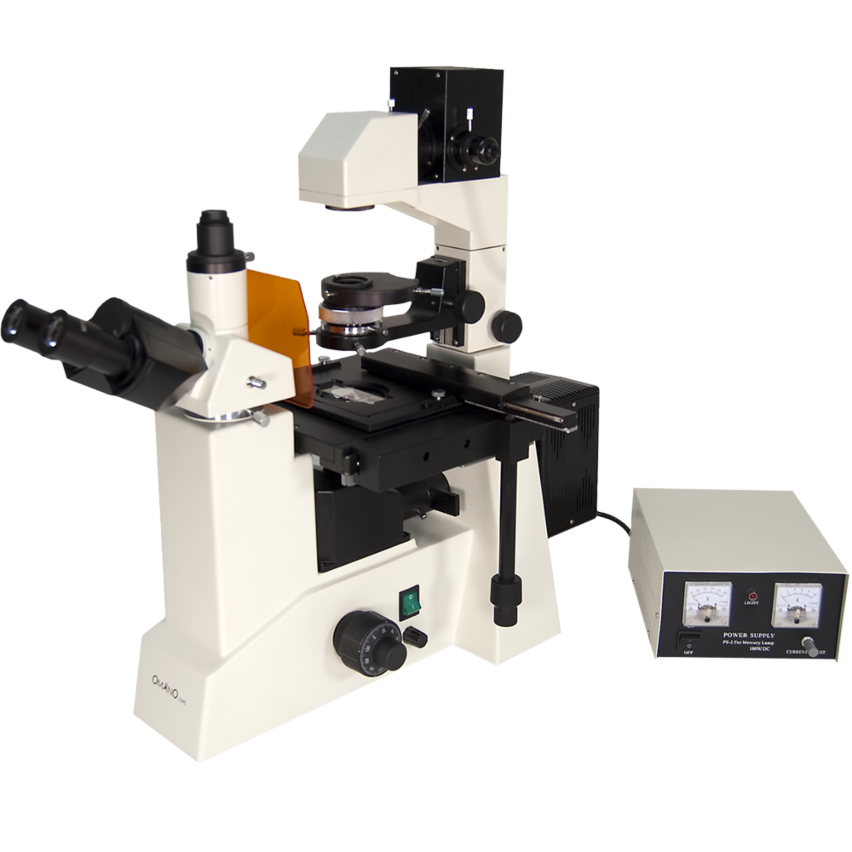

Omano OMFL600 Inverted Fluorescence Compound Microscope

OMFL600 Inverted Fluorescence Compound Microscope

You pay: $5,499.00

Regular Price: $8,799.00

Omano

OMFL600 Inverted Fluorescence Compound Microscope

SKU: OMFL600

OMFL600
$ 5499.00

OMFL600

In stock
  • Save over $1,000 on competing microscopes
  • 6 LWD Objectives - 3 Plan, 3 Phase Contrast
  • WF10x eyepieces
  • Centering telescope for accuracy
  • 400x maximum magnification
  • LWD 0.4 N.A condenser with phase attachment
  • 100W mercury arc lamp
  • Four included excitation system filters

You pay: $5,499.00

Regular Price: $8,799.00

You pay: $5,499.00

Regular Price: $8,799.00

Add to Wish list
Created with Sketch. 30 Day Money Back Guarantee
Description

Details

Summary

The Omano OMFL600 is a trinocular, inverted fluorescence microscope that, in our opinion, offers an strong value equation between quality and price. There are four excitation filters, six long working distance objective lenses (3 plan, 3 phase contrast) and maximum magnification of 400x. It is a well built alternative to more expensive brands and carries a Lifetime Limited Warranty.

Optics

The microscope head is a trinocular Seindentopf with an ergonomic 30 degree angle for more comfortable viewing. It includes two WF10x eyepieces with included eyecups. Dual diopter adjustments and an interpupillary adjustment of 55-75mm allows a custom fit for each user.The nosepiece is quintuple with six objective lenses in the standard configuration.

These objectives include three, long working distance, plan achromat objectives: PLL10x, PLL25x, PLL40xS and three, long working distance phase contrast objectives: PLL10x PHP2, PLL25x PHP2, PLL40xS PHP2.

Stage & Focus

A large mechanical stage measures 217mm x 225mm with right hand, drop down coaxial controls. The stage range of motion is 79mm-112mm. Focusing also includes coaxial coarse/fine controls with adjustable tension and focus stops.

Condenser& Illumination

In addition, it has a special long working distance 0.4 N.A condenser (55mm) and a phase contrast attachment. Illumination includes a 100W Mercury arc lamp with the following excitation systems: UV-Ultraviolet, filter 330-400nm; V-Violet, filter 395-415nm; B-Blue, filter 420-485nm, G-Green, filter 460-550nm. Transmitted illumination is 6v 30W halogen.

Light Type Excitation Emission
Ultraviolet 330-400nm 425nm
Violet 395-415nm 455nm
Blue 420-485nm 515nm
Green 460-550nm 590nm

Accessories

Eyecups, C-Mount trinocular adapter, 31mm blue filter, 31mm green filter, 31mm neutral filter, Mercury lamphouse, orange light shield, spare fuse, 2 spare halogen bulbs, 3 Mercury bulbs, dust cover, manual.

Shipping Wt. and dimensions: 56 Lb. 32"x21"x15".

Additional Information

Additional Information

Brand Omano
SKU OMFL600
Short Description
  • Save over $1,000 on competing microscopes
  • 6 LWD Objectives - 3 Plan, 3 Phase Contrast
  • WF10x eyepieces
  • Centering telescope for accuracy
  • 400x maximum magnification
  • LWD 0.4 N.A condenser with phase attachment
  • 100W mercury arc lamp
  • Four included excitation system filters
Warranty Omano Limited Lifetime Warranty
Feed - Title Omano OMFL600 Inverted Fluorescence Compound Microscope
Feed - Description The Omano OMFL600 is a trinocular, inverted fluorescence microscope that, in our opinion, offers an strong value equation between quality and price. There are four excitation filters, six long working distance objective lenses (3 plan, 3 phase contrast) and maximum magnification of 400x. It is a well built alternative to more expensive brands and carries a Lifetime Limited Warranty.OpticsThe microscope head is a trinocular Seindentopf with an ergonomic 30 degree angle for more comfortable viewing. It includes two WF10x eyepieces with included eyecups. Dual diopter adjustments and an interpupillary adjustment of 55-75mm allows a custom fit for each user.The nosepiece is quintuple with six objective lenses in the standard configuration.These objectives include three, long working distance, plan achromat objectives: PLL10x, PLL25x, PLL40xS and three, long working distance phase contrast objectives: PLL10x PHP2, PLL25x PHP2, PLL40xS PHP2.Stage & FocusA large mechanical stage measures 217mm x 225mm with right hand, drop down coaxial controls. The stage range of motion is 79mm-112mm. Focusing also includes coaxial coarse/fine controls with adjustable tension and focus stops.Condenser& IlluminationIn addition, it has a special long working distance 0.4 N.A condenser (55mm) and a phase contrast attachment. Illumination includes a 100W Mercury arc lamp with the following excitation systems: UV-Ultraviolet, filter 330-400nm; V-Violet, filter 395-415nm; B-Blue, filter 420-485nm, G-Green, filter 460-550nm. Transmitted illumination is 6v 30W halogen.Light TypeExcitationEmissionUltraviolet330-400nm425nmViolet395-415nm455nmBlue420-485nm515nmGreen460-550nm590nmAccessoriesEyecups, C-Mount trinocular adapter, 31mm blue filter, 31mm green filter, 31mm neutral filter, Mercury lamphouse, orange light shield, spare fuse, 2 spare halogen bulbs, 3 Mercury bulbs, dust cover, manual. Wt. and dimensions: 56 Lb. 32"x21"x15".
Feed - Custom Label 1 4000-6000
New No
Best Seller No
Top Rated No
Best Value No
Staff Pick No
Close Out No
System Type Brightfield, Inverted, Phase Contrast, Epi-Fluorescence
Optical Design DIN 160mm
Head Type Trinocular
Ocular Angle 30°
Diopter Adjustment Single
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 53-75 mm
Trinocular Tube Focusable? No
Parfocal No
Ocular Tube Diameter 23 mm
Nosepiece Style Quintuple (5)
Focus Controls Coarse & Fine, Coaxial
Focus Mechanism Rack & Pinion
Focus Control Location Dual Ambidextrous
Focus Controls Graduated? No
Stage Type Mechanical XY
Stage Features Fingertip Controls, Slide Holder (spring-loaded)
Stage Range Graduated? No
Includes Eyepieces? Yes
Included Eyepiece Quantity 3
Included Eyepieces (X) 10X
Eyepiece Style WF Widefield (FN 18mm)
Includes Eyecups? No
Min Standard Mag 100X
Max Standard Mag 400X
Included Objectives (Qty) 6
Objective Lens Plan
Included Objective Types Brightfield, Epi-Fluorescence, Inverted, Phase Contrast
Included Objectives Parfocal Adjustable? No
Condenser Type Zernike Phase
Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
Illumination Type Fluorescent, Mercury Arc
Illumination Style Transmitted, Epi-Fluorescent
Collector Type Kohler
Collector Features Field Diaphragm
Transmitted Light Type Halogen
Transmitted Light Specification 6V 30W
Transmitted Light Control Variable
Coaxial Light Type Mercury Arc
Coaxial Light Specification 100W
Coaxial Light Control Variable
Power Supply 110V -240VAC Auto-Switching
Epi-Fluorescence System Details INSERT EPI-FLUORESCENCE DETAILS HERE
Imaging Compatibility (with adapters) 23mm , C-Mount
Available Imaging Mounts 0.4X C-Mount
Reticles Available? No
Included Extras Spare Bulb, Spare Fuse, Dust Cover
Case Included? No
