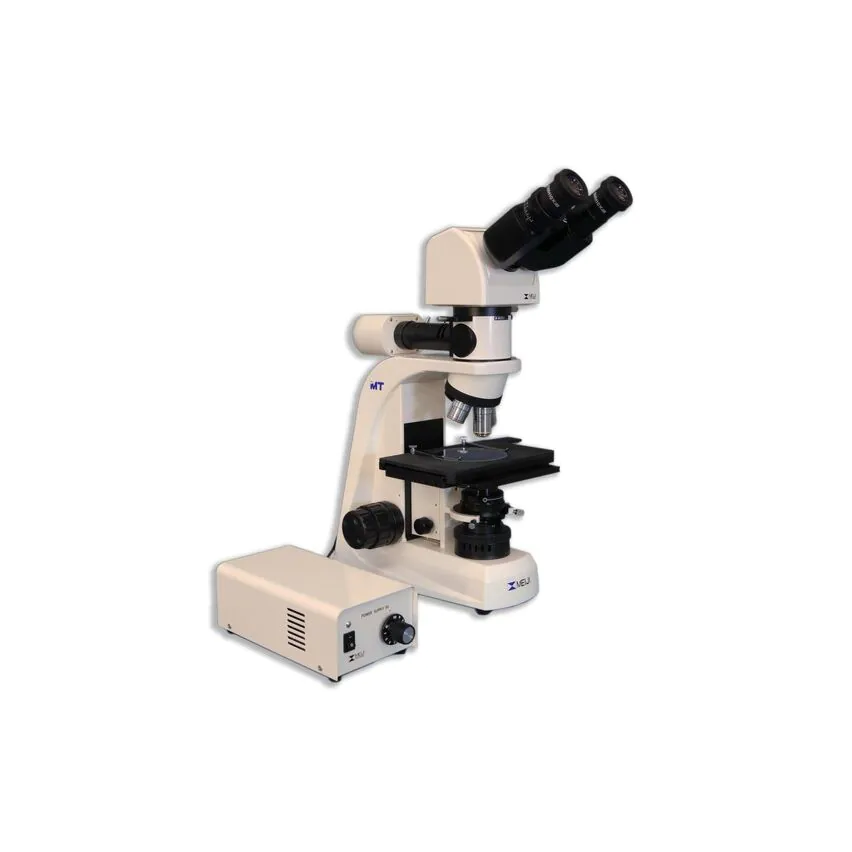

Meiji Techno MT8000EL Metallurgical Ergonomic Binocular Upright Brightfield Compound Microscope with Infinity Corrected Plan EPI 5X, 10X, 20X, 50X and Vertical Koehler LED Incident or Transmitted Light

SKU:

MT8000EL

In stock

You pay: $8,340.00

Free Shipping,

30 Day Money Back Guarantee

ICOS™ Infinity Corrected Optical System: Delivers high-resolution, high-contrast imaging specifically optimized for analyzing grain structures, coatings, and microstructural features.
Enhanced EPI-Plan Optics: Features a suite of long-working-distance objectives (5X to 100X) that provide a flat, distortion-free field of view for precise microstructural interpretation.
High-Intensity LED Illumination: Provides stable, color-consistent reflected lighting with minimal heat output and a long operational lifespan for demanding industrial QC.
Industrial-Grade Build: Engineered with a durable ceramic-coated mechanical stage and precision Japanese components, backed by a limited lifetime warranty.

Talk to one of our experts now!

Components & Accessories

MT8000EL: Ergonomic Binocular Metallurgical Microscope (Brightfield/Simple Polarization). Features Incident Vertical LED and Transmitted 6V 30W Halogen illumination, Infinity Corrected optical system (F-200MM), and quintuple nosepiece.
MA957: Ergonomic tilting binocular head (Adjustable 10° to 50°), Siedentopf type, Interpupillary adjustment 53mm–75mm.
MA817 (x2): SWH10X Widefield high eyepoint eyepieces, Field No. 22.
MA906 (x2): Eyeshields for MA817 eyepieces.
Included Objectives (Plan Epi):
- MA870: 5X, N.A. 0.10, W.D. 20.9mm
- MA871: 10X, N.A. 0.25, W.D. 7.7mm
- MA872: 20X, N.A. 0.40, W.D. 5.6mm
- MA873: 50X, N.A. 0.75, W.D. 0.38mm
MA927/L: Vertical Koehler LED Illuminator with Blue, Green, ND25, and Polarizing filters.
MA942: Ceramic coated flat-top stage (191mm x 126mm) with X-Y coaxial controls and clear glass stage plate.
MA910/05: Substage condenser with iris diaphragm.
Maintenance & Power: Includes bulbs, fuses, dust cover (MA701/05), and removable AC electric cords.
Manual: MT8000 Meiji Techno Instruction Manual.

MA816: Trinocular head (Siedentopf type), 30° inclination.
MA959: Trinocular head, erect image with sliding 0/100 beam-splitter.
MA958: Photo/video attachment with sliding 80/20 beam-splitter (for use with MA957 head).

Stage Micrometer (MA292): Metal, 1mm divided into 100 units (0.01mm).
Eyepiece Reticles: Various cross-line, 10mm/5mm scales, and grain-sizing reticles available in 25mm and 19mm diameters.

All Meiji Techno microscopes are manufactured in Japan and include a LIMITED LIFETIME WARRANTY.

More Information
Recommended For	0
Trinocular Tube Focusable?	No
Parfocal	No
Focus Controls Graduated?	No
Stage Range Graduated?	No
Includes Eyepieces?	No
Includes Eyecups?	No
Included Objectives Parfocal Adjustable?	No
Reticles Available?	No
Case Included?	No
