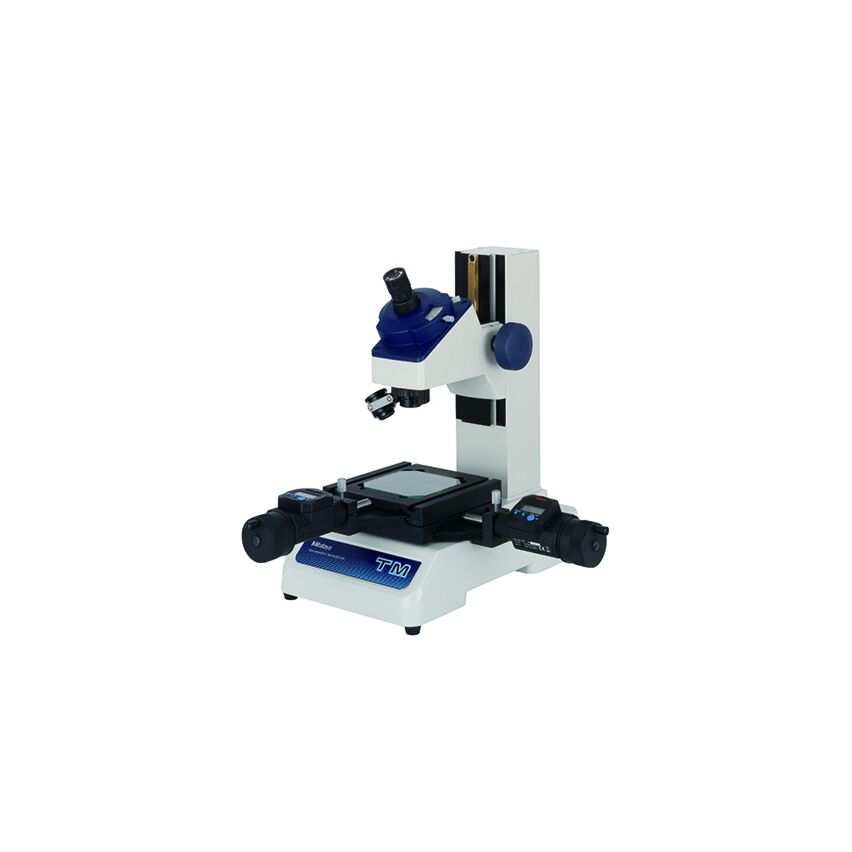

Mitutoyo TM-A1005B Series 176-Toolmaker's Microscopes 176-821-11A
SKU:
176-821-11A
Out of stock
You pay: $8,087.20 Regular Price: $9,190.00
Free Shipping,
30 Day Money Back Guarantee
Mitutoyo TM-A1005B Series 176-Toolmaker's Microscopes 176-821-11A
Mitutoyo TM-A1005B Series 176-Toolmaker's Microscopes 176-821-11A
| Brand | Mitutoyo |
|---|---|
| Recommended For | 0 |
| Name | Mitutoyo TM-A1005B Series 176-Toolmaker's Microscope 176-821A |
| Model # | TM-A1005B |
| Power Consumption (W) | 120VAC Maximum power consumption: 4.2W |
| Unit | Each |
| Accuracy (in) | mm |
| Output | Y |
| Cable 40 | 937387 |
| Cable 80 | 965013 |
| Objective Lens | Standard accessory:2x,Options: 5x, 10x |
| Focusing Method | Manual (Coarse feed) |
| Mic Head.Max. Workpiece Height (in) | 4.21 |
| Mic Head.Max. Workpiece Height (mm) | 107 |
| Transmitted Illumination | Stepless brightness adjustment, White LED light source, With green filter |
| Cross travel measuring range (in) | 4 x 2 |
| Cross travel measuring range (mm) | 100 x 50 |
| Surface Illumination | Oblique single-source type, Stepless brightness adjustment, White LED light source |
| Table top size (in) | 9.44x6 |
| Table top size (mm) | 240x152 |
| Usable area of stage glass (in) | 6x3.8 |
| Usable area of stage glass (mm) | 154x96 |
| Linear measurement method | Mic Heads Included |
| Resolution | .00005"/1µm |
| Micrometer head travel range | 2"/50mm |
| Resolution or Graduation (In) | Variable In |
| Resolution or Graduation (mm) | Variable mm |
| Focus Adjustment | - |
| Image | Erect Image |
| Pupil Distance | - |
| Field No. (mm) | - |
| Mass (main unit) (kg) | - |
| Loading Weight (kg) | - |
| Max. stage load (lbs / kg) | 11 / 5 |
| Cross travel measuring range (in / mm) | 4 x 2 / 100 x 50 |
| Table top size (in / mm) | 9.44x6 / 240x152 |
| Usable area of stage glass (in / mm) | 6x3.8 / 154x96 |
| Tilt Angle (°) | - |
| Optical pass ratio | - |
| Protective filter | - |
| Tube lens | - |
| Applicable laser | - |
| Camera mount | - |
| Objective, optional (for observation) | - |
| Objective, optional (for laser-cutting) | - |
| Loading weight (lbs / kg) | - |
| Mass (main unit) (lbs / kg) | 33 / 15 |
| Eyepiece Protractor | Resolution (graduation) : 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point |
| Eyepiece | Standard accessory: 15X (field number: 13), Options: 10X, 20X |
| Optical tube | Monocular type (Vertical tilt angle: 60°) |
| Mechanical or Digital | Digimatic |
