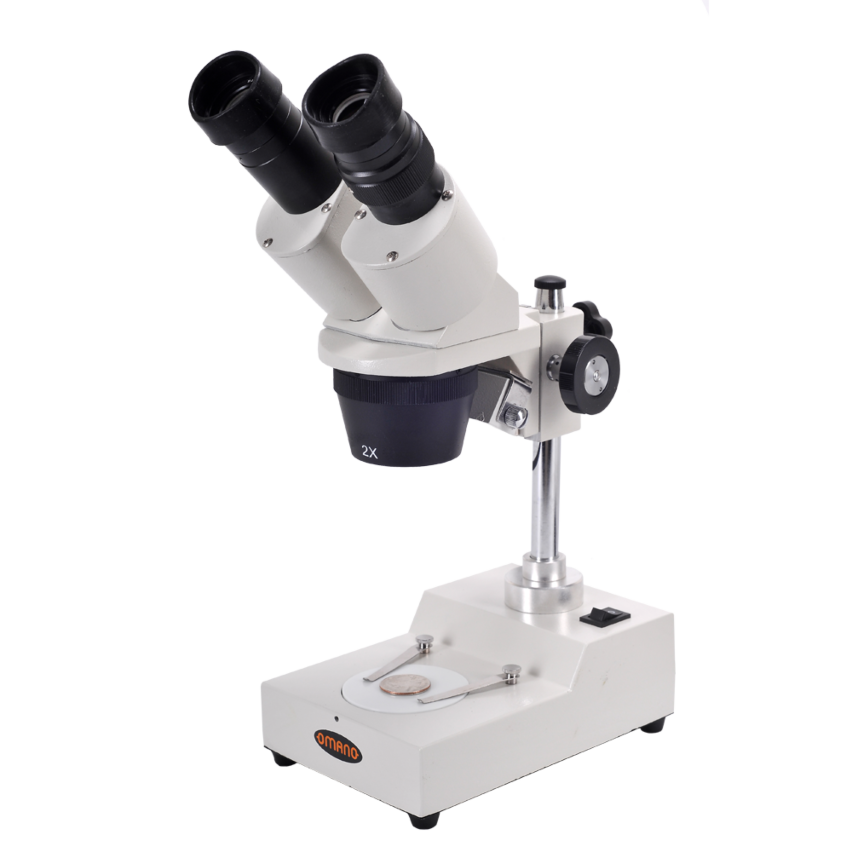

Omano OM-124-1LP 20X / 40X Student Stereo Microscope

List Price: $258.00

Our Price: $129.00

Sale Price: $99.00

SKU: OM-124-1LP

Availability: In stock

  • 20x/40x Dual power stereo
  • Top (incident) illumination
  • Rack and pinion focus
  • Recommended for Elementary-High School

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano OM-124-1LP stereo microscope
Description

The OM-124-1LP is part of our new OM100 series of more affordable, dual power stereo microscopes introduced in 2011. The 45-degree inclined binocular head provides a comfortable viewing position with a compact, 50mm working distance. For additional space, the entire focus block can swivel 180 degrees to observe larger objects like rocks and archeological specimens. It features dual power 20x/40x magnification with a single top light for a good value, entry-level stereo microscope.

Reliable incandescent top lighting provides a warm illumination while dual focusing knobs and rack and pinion internal gears bring out clear, refined three-dimensional images of the smallest details.

The rugged metal housing is designed to withstand the rigors of use in the field or the industrial workplace and is sealed to prevent debris from interfering with the microscope’s performance, ensuring a lifetime of dependable service.

This microscope has been manufactured under the strict guidelines established under ISO 9001:2000 Standards.

Shipping Wt. and dimensions: 6 Lb. 14" x 11" x 6".

Specifications

OM-124-1LP 20X / 40X Student Stereo Microscope
General
SKU OM-124-1LP
Short Description
  • 20x/40x Dual power stereo
  • Top (incident) illumination
  • Rack and pinion focus
  • Recommended for Elementary-High School
Product Display
On Sale Yes
Head
Head Type Binocular
Optical Design Greenough Converged
Ocular Angle 45°
Ocular Tube Diameter Proprietary
Magnification Type Dual Power
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 55mm to 77mm
Head Rotation 360 Degrees
Optics
Minimum Objective (X) 20
Maximum Objective (X) 40
Configuration
Included Eyepieces (X) 10X
Min Standard Mag 20
Max Standard Mag 40
Min Configured Mag 20
Max Configured Mag 40
Body
Body Material All-Metal
FocusBlock
Focus Controls Coarse
Stand
Stage Plate Black/White Contrast Plate
Base Width 4.5 inches
Base Depth 6.5 inches
Post Height 9.5 inches
Illumination
Illumination Type Halogen
Illumination Style Incident
Power Supply 110v
Incident Light Type Halogen
Incident Light Specification 12v10w
Incident Light Control On/Off
Working Distance
Max Working Distance (standard) 50mm
Accessories
Included Extras Dust Cover
